23 |

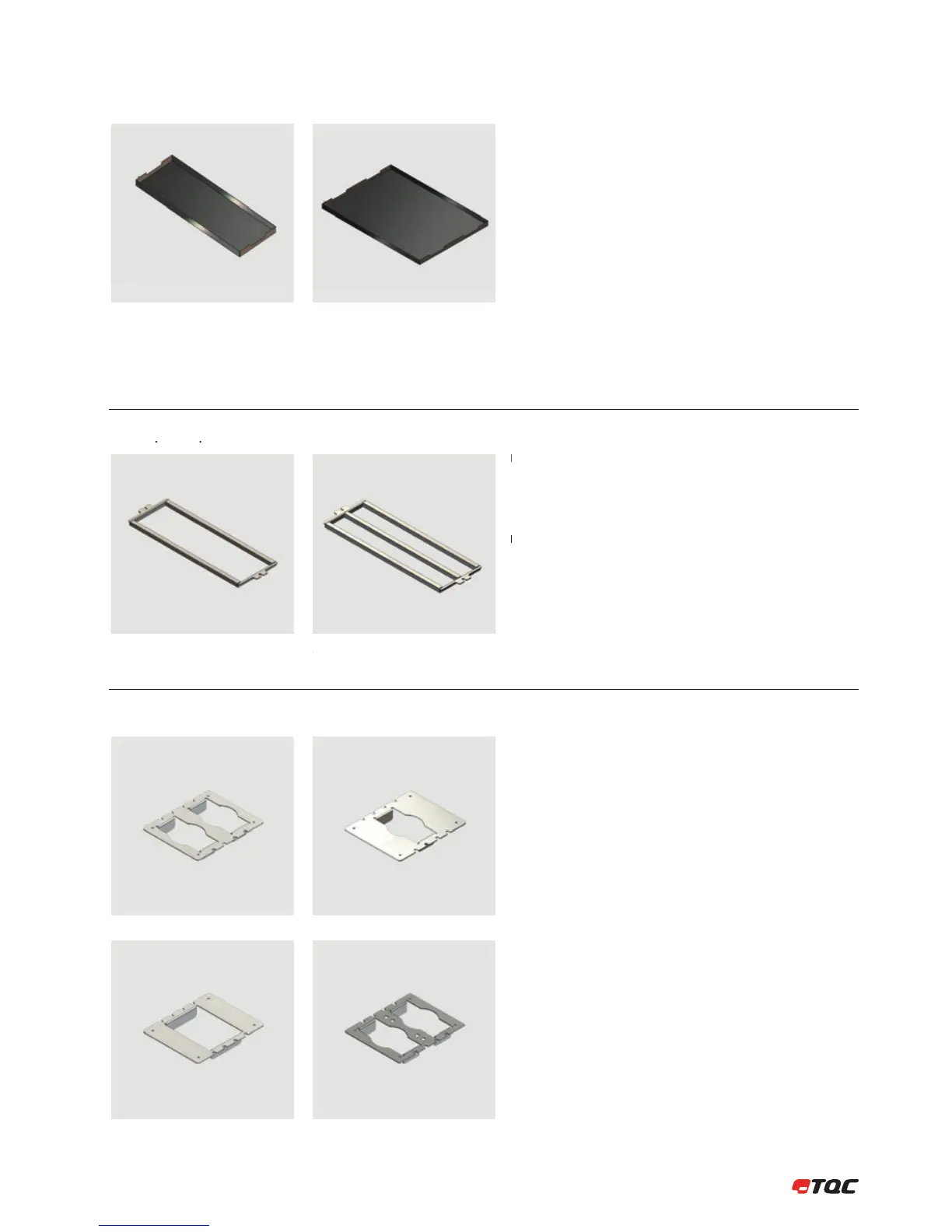

The TQC Scrub, Abrasion and Washability Tester can be supplied with
2 types of test beds. Either one AB5176 covering the full width of the
machine or one or two AB5196, covering either half the width or the full
width.
Placement
Dependent on the model either two narrow or one wide test bed is placed
flat on the top plate of the Washability tester.
AB6000 and AB6010 can be used without the test beds when used for dry
abrasion testing. Following rules have to be applied:
- The sample shall not protrude from the test bed.
- The sample shall be positioned such that it will not move.
- The sample shall not block any of the movement of the TQC Scrub
Abrasion and Washability Tester.
In order to hold samples down the TQC scrub, abrasion and washability
tester shall be equipped with one of the following sample clamp frames.
These can be used on both test bed models AB5196 and AB5176. The total
machine can contain two frames at a time.
Placement
The sample frames are with the indentation on each side up such that
they can be fixed using the fixture screws of the TQC Scrub Abrasion
and Washability Tester. The Rubber seals beneath the clamping frames
are made out of Viton rubber. The chemical resistance of this rubber is
expressed in annex B.
The TQC Scrub, Abrasion and Washability Test is equipped with a universal
traverse as of 01-04-2016. Earlier models have a standard configurated
traverse containing tool holders equal in function to AB5041. Models
after 01-04-2016 have a configurable traverse allowing for a flexible
arrangement of the tools. The tool holders are linked to the tools in use
and the frames that are used. Please use the online Ordering Matrix to
select the proper tool holder in correlation to the clamping frame and tool
in use. The shown models are available and all have the same installation.
Placement
Place the tool holder in the designated part of the traverse and secure
it with the 4 screws supplied with each tool holder. Always make sure
the tool holder is properly secured with the guides for the tools facing
downward.beneath the clamping frames are made out of Viton rubber.
The chemical resistance of this rubber is expressed in annex B.
AB5196
Dimensions: 480x165x18 mm
ABAB5045
AB5041
AB5043
AB5176
Dimensions: 480x330x18 mm
AB5197
AB5042
AB5044
10.1 Test Beds
10.2 Sample Clamp Frames
10.3 Tool Holders
10 MECHANICAL
