CONTINUOUSLY VARIABLE TRANSMISSION (CVT)
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
109
Repair and Service Manual
699322
1. Remove the CVT belt (1) (Ref. Fig. 3).
2. Remove the Starter/Generator belt (Refer to Starter/
Generator Removal in ENGINE section).
3. Remove the bolt (2) from the center of the primary
clutch (Ref. Fig. 3).
4. Raise the vehicle frame with the floor jack and allow
the power-train to drop so that the clutch puller bolt
clears the spring hanger.
5. Remove the front eye-bolt from the spring hanger.
6. Install the clutch puller bolt using the impact tool and
universal joint.
7. Remove the primary clutch from the shaft.
8. Remove the clutch puller bolt.
NOTICE: In some case the clutch can not separate
from the crankshaft. Remove the clutch puller and
fill the cavity with grease. Replace the clutch puller
and tighten it with the impact wrench. The combined
mechanical and hydraulic effect will remove the
clutch. Remove all excess grease.

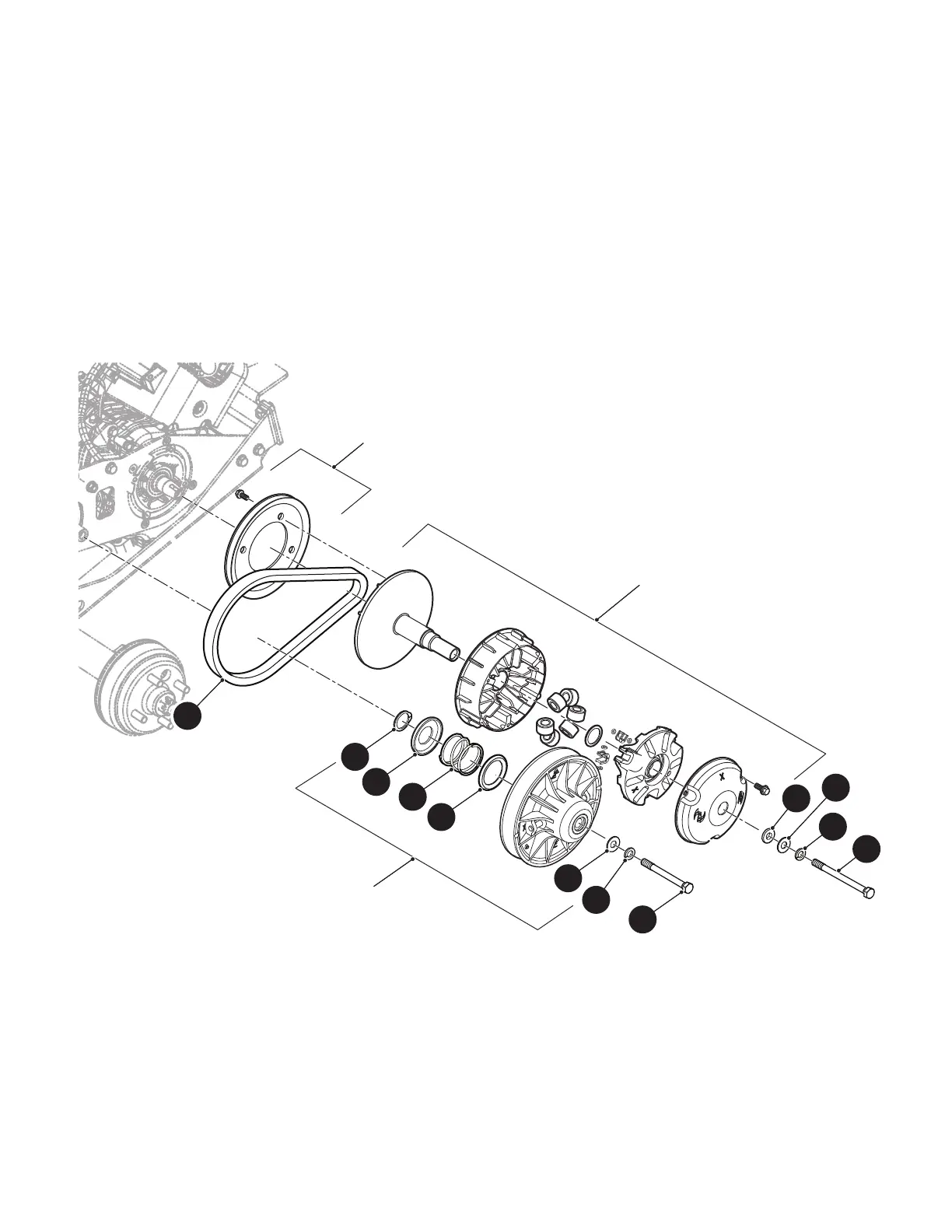

Fig. 3 CVT Components
4
5
3
2
8
7
6
12
11
10
9
1
Primary Clutch
Primary Clutch
Secondary Clutch
