Traeger RANGER - Assembling Your Grill; Parts and Hardware Identification

8
ASSEMBLING YOUR GRILL
READ ALL INSTRUCTIONS BEFORE INSTALLING AND USING
THE APPLIANCE

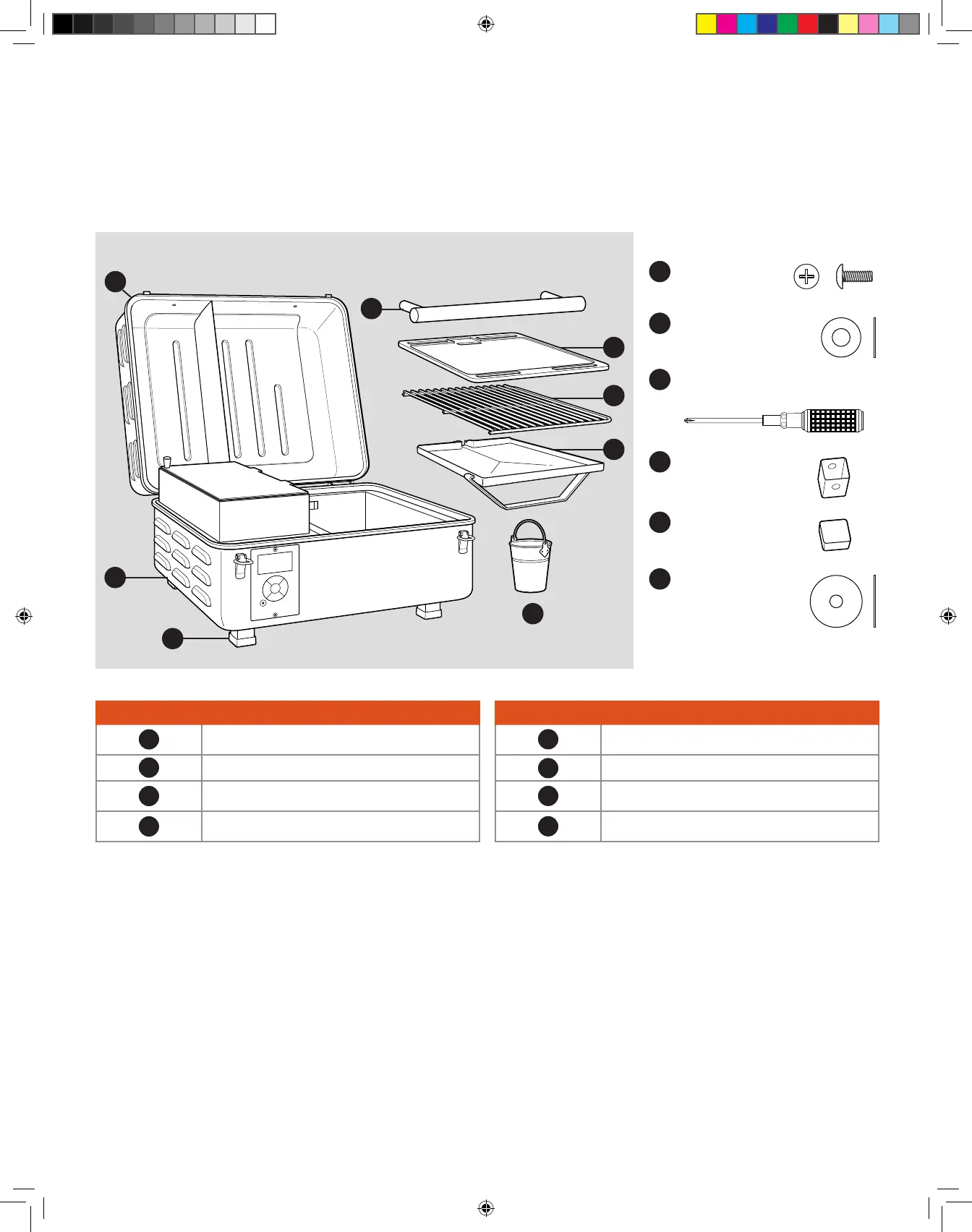

PARTS LIST
6
7
8
1
2
4
HARDWARE PACK
C
D
B
A
Part Description
1
Grill Lid
2
Grill Body
3
Feet with Caps
4
Lid Handle
Part Description
5
Cast-Iron Griddle
6
Grill Grate
7
Grease Drip Tray
8
Grease Bucket
E
3
5
F
* NOTE: Handle bolts, washers, and Mica
washers are shipped installed on the handle.
Shape may
vary.
Bolts: 1/4-20x
5/8" (6 pcs.)*
Washers: 1/4" Flat
(6 pcs.)*
#2 Phillips
Screwdriver
Legs (4 pcs.)
Leg End Caps
(4 pcs.)
Mica Washers
(2 pcs.)*
