P.D.I.
10

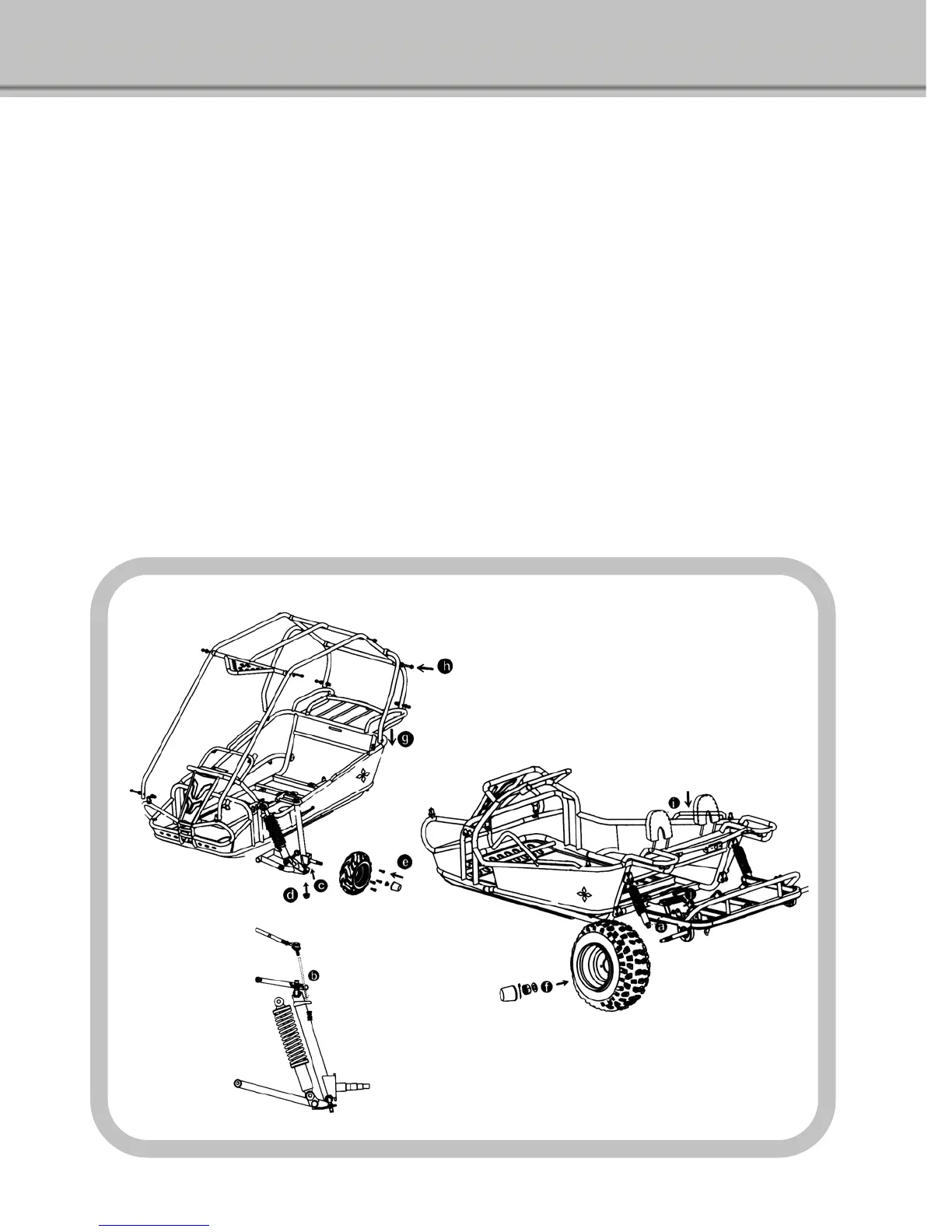

A. Install rear shocks and tighten the nuts.
B. Install rod end, tie rod, tighten the castle nut and insert the cotter pin.
C. Install ball head dust seals, align the ball head bolt, knuckle support to the square hole on the
lower A-Arm.
D. Install flange nut and tighten it (>88.9 foot lbs)
E. Install front tires and tighten the nuts.
F. Install rear tires, tighten the nuts, insert cotter pin and put on the rubber cover.
G. Raise the C.B.C custom bar cage as in picture.
H. Install C.B.C rear custom bar cage, put on R-Washer.
I. Install Head-Rest.
J. Check all nuts and bolts, wiring, cables, fuel line, switches and tire pressure.
K. Fill battery with acid and charge, check and fill the engine with the recommended oil.
Fill fuel tank with unleaded gasoline, and turn on the ignition switch to start the engine.
