OPERATION
NOTICE
Each time prior to starting the engine, check the throttle assembly to ensure
that when the pedal is pushed all the way forward the assembly is working
smoothly and returns to idle when released. Do not operate if pedal or engine throttle
linkage fail to return to idle. If unable to correct the problem through lubrication,
adjustment or replacement of worn parts, contact your dealer for assistance.
13
A. Operation controls
WARNING - Do not attempt to start or operate the engine until completely familiar with the
location and use of each control necessary to operate this vehicle. The operator must know how to
stop this machine before starting and driving it.
a. Throttle
The right foot pedal is the throttle that controls the kart speed. As the engine speed increases
above idle, the clutch is engaged automatically and moves the vehicle forward. To disengage the
clutch at any time, allow the throttle to return to the idle position. (See Fig. 1)
b. Brake
The brake is the left foot pedal (See Fig.1). Applying pressure to the pedal draws the brake caliper
around the brake disc at the rear wheel and slows stop the kart.
c. Start Engine
Insert the key into key-switch, turn
the key clockwise, release the key
when the engine starts. The engine will
warm within 5 minutes and the engine
choke will close automatically and run
at normal RPM (Warning: Do not crank
starter more than 5 seconds at one time).
Remark: the TrailMaster Go-kart
MID basic version XRS has also
variant model without electric start
function. Only pull start.
BRAK PEDALBRAK PEDAL
THROTTLE PEDAL
IGNITION START SWITCH
ENGINE STOP BUTTON
LIGHT SWITCH
HORN BUTTON

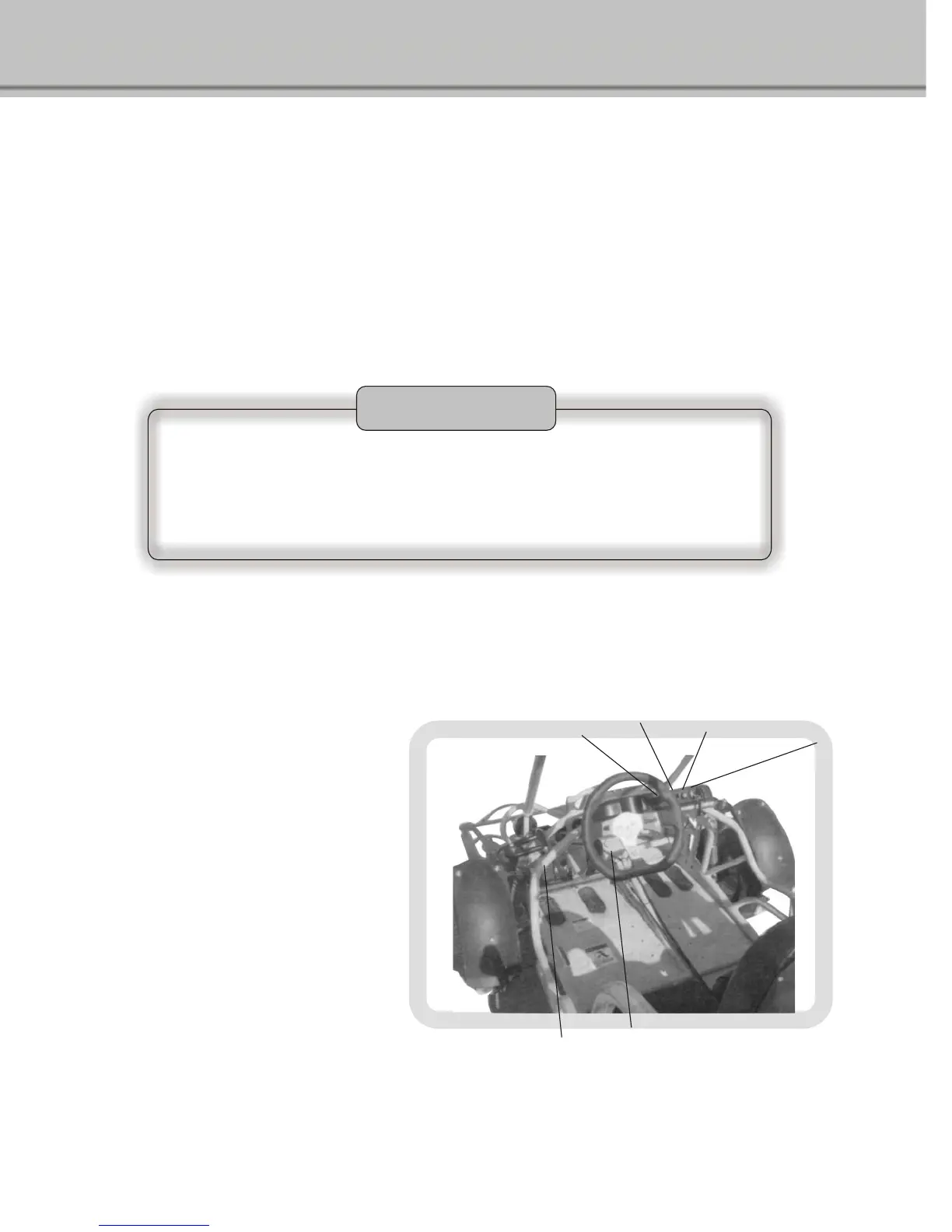

Figure 1 front panel
d. Engine stop button
Before driving this vehicle, test the Engine Stop Button to ensure that it is operating properly.
With the engine running, push and hold the Engine Stop Button for two seconds until the engine has
been shut down.
