A. Front Wheel Replacement
Do not disassemble the castle nuts when you replace the front wheels. It's only necessary to
remove the 4 nuts to disassemble the wheel. (See Fig.10) Tighten the nuts after replacing the wheels.

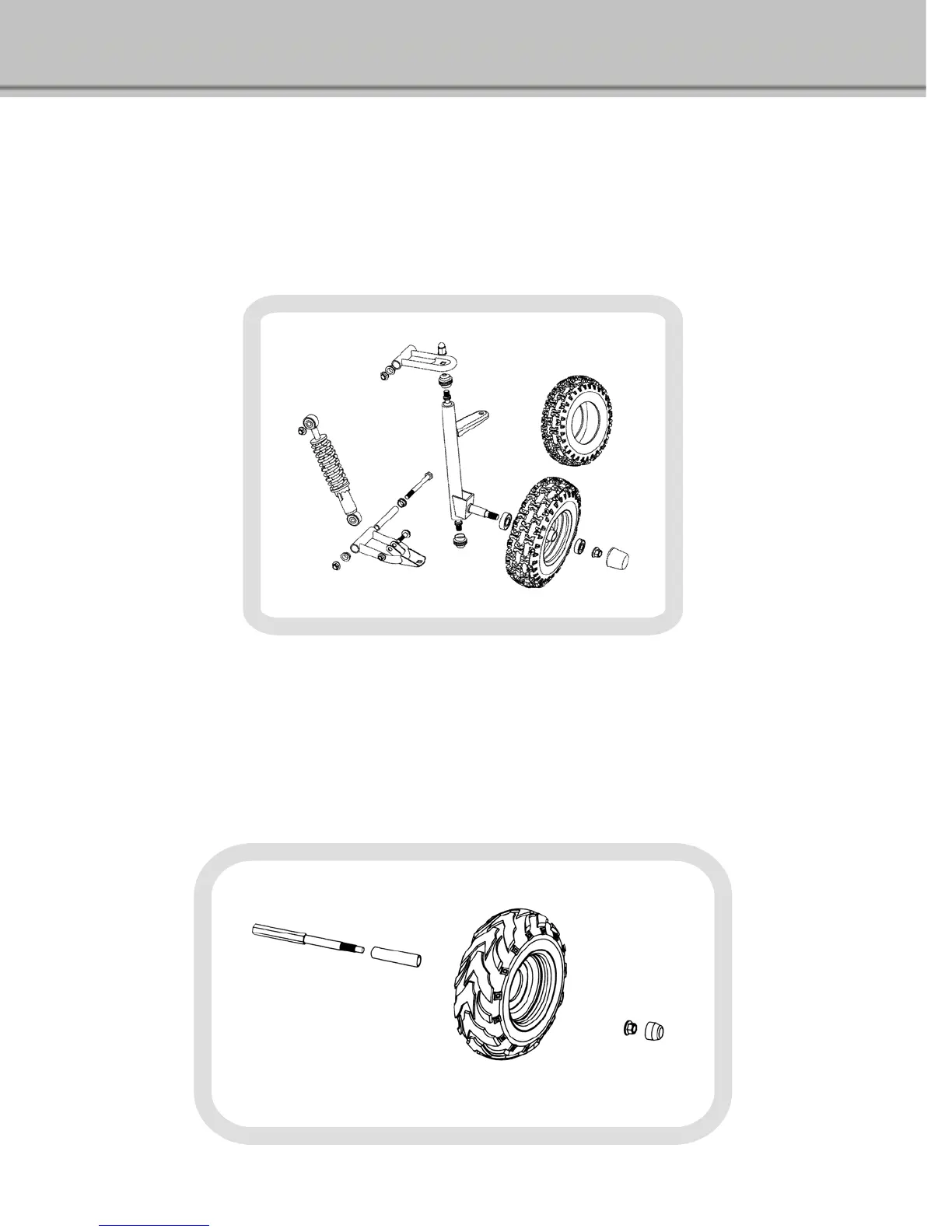

Figure 10 Replace the front wheel
B. Rear wheel replacement
Do not disassemble the castle nuts when you replace the rear wheels and hub assembly. Remove
the cotter pin and then 24 mm nut. After that slide off the wheel and hub assembly. It is only
necessary to remove the 4 nuts to remove the wheel. (See Fig.11)
Figure 11 Replace the rear wheel
