REPAIR
LOCK NUT,FR.
WHEEL TIE ROD
RIGHT ROATE
LEFT ROATE
FR.WHEEL
TIEROD
RIGHT ROATE
LEFT ROATE
22
C. Front Wheel Alignment
a. The front wheels should be toe in from 1/8 to 1/4 inch. Measure the distance A and B between
the centerline (CL) of the wheels to check for alignment. The proper toe in dimension A should be
1/8 -1/4 inch greater than dimension B.
b. To adjust the alignment, loosen the lock nuts on both sides of front tie rod. To make Dimension
B smaller, turn the rod to left. Adjust the rod to right direction to make Dimension B larger. After
adjusting to the desired length, tighten the lock nut against the rod end. Recheck the dimensions for
proper alignment.

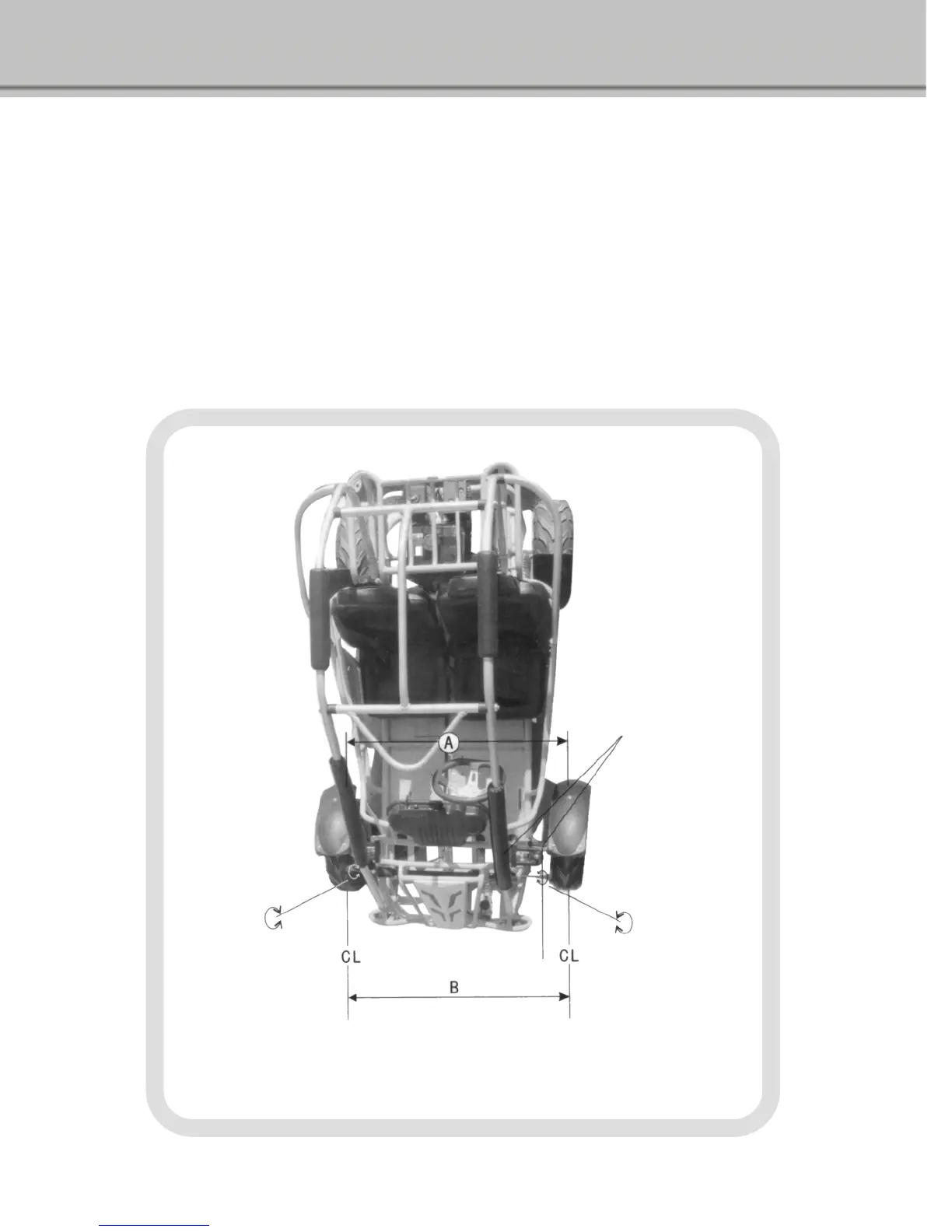

Figure 12 Front wheel alignment
