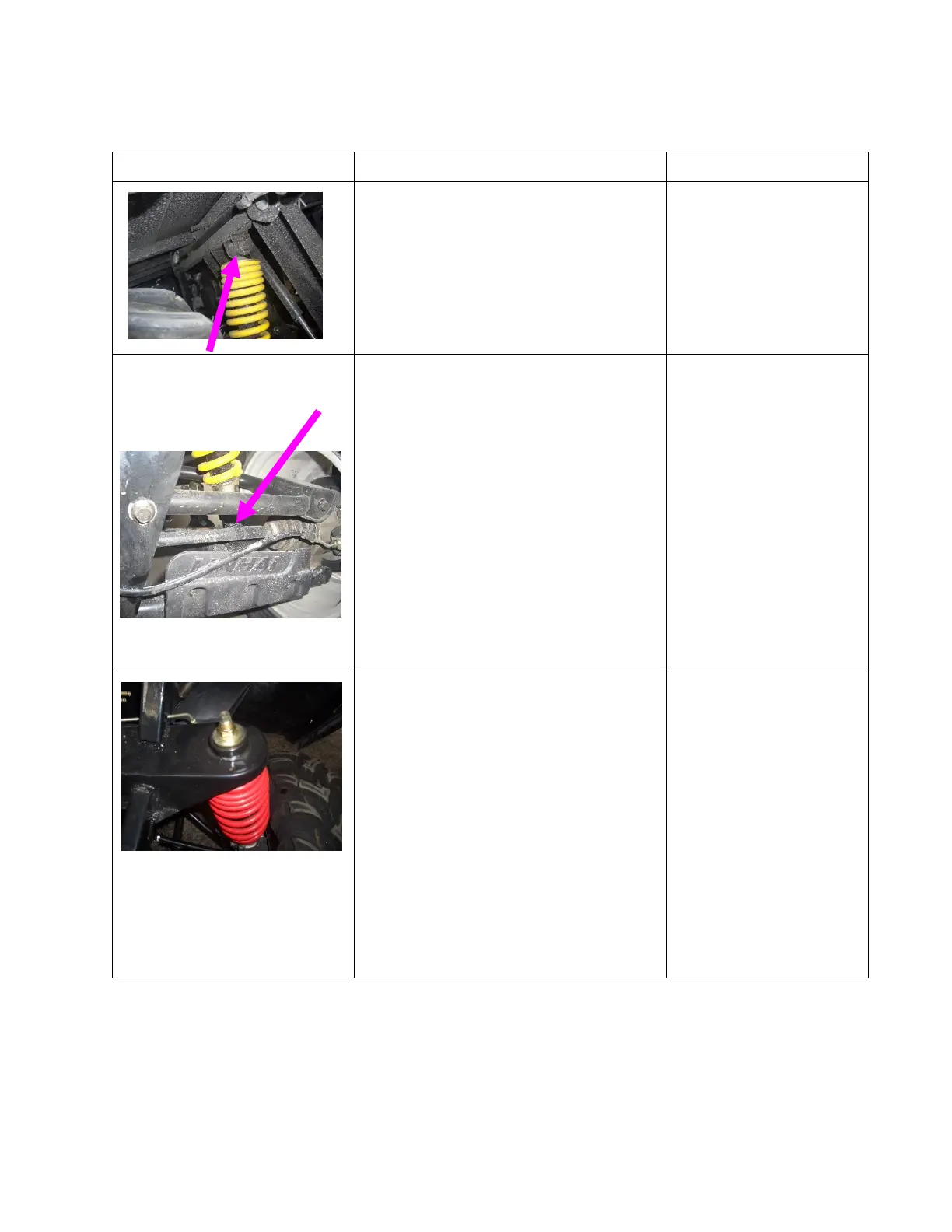

●Install the rear suspensions (right
&left),attaching its upper end to the
frame with the attachment bolts①
M10×1.25×63 securely tightened.
Apply Loctite™ 242 to
the attachment bolt
when installing.
Torque of bolt ①
40N.m
●Attach the lower end to the lower
A-arm with the attachment bolts②
M10×1.25×50 securely tightened.
WARNING: Don’t lift up the vehicle
before installing the rear shock
absorbers.
NOTE：Press the rear
suspensions hard and then leave
go of them before installing the
front suspensions so that the
damping is smooth throughout the
range of travel.
●Give an even application of
lithium base grease of 0.5~1mm
thick to the fitting surfaces on the
frame where the front suspensions
(right & left) are to be fitted and to
the pivot balls (upper & lower).
Mount the lower pivot ball on the
upper end of the front suspension
before installing the suspension to
the frame, and then install the
upper pivot ball, rubber spacer, flap
gasket and nut in sequence.
Apply thread
fastening glue
(Loctite™ 242) to the
threaded end of the
front suspension.
Torque of nut M14 x
1.25 : 21-25N.m.
