TrailMaster TAURUS 400UTV - Structural and Dampening Components; Damper Installation; Roof Frame Assembly; Roof Frame Mounting

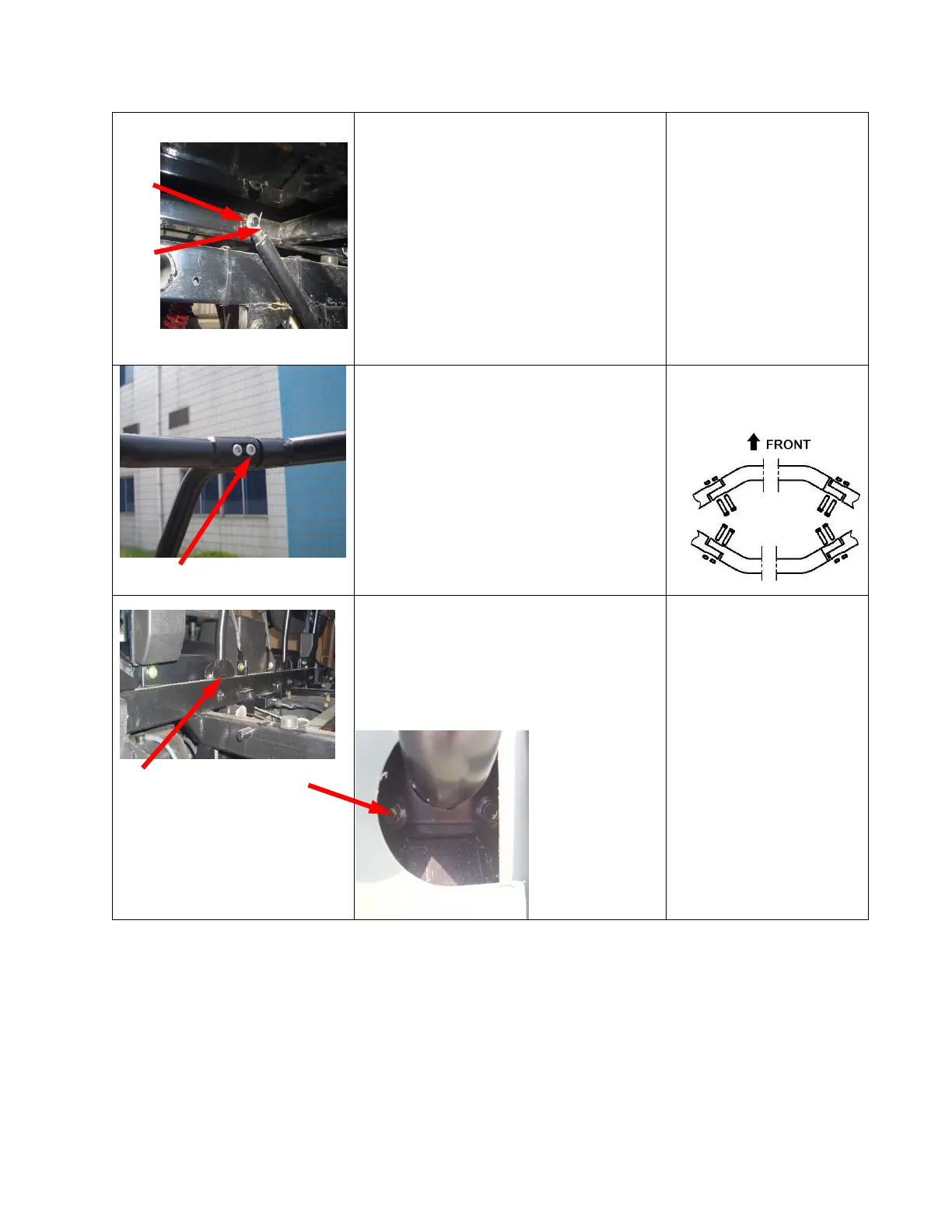

● Install the damper to the frame
by the use of the washer ⑤10 and
cotter pin⑥2.5×20.
Grease the end of the
damper.
●Join the roof frame members,
front and rear, right and left, with
socket head cap screws M8 ×25①
and hex locknuts M8.
Torque of bolt M8×25
① 21~25N.m
●Install the assembled roof frame
on the frame of the vehicle by the
use of bolts② M10×1.25×80 and
bolts M8×25③.
Torque of bolt M10
② 35~40N.m Torque
of bolt M8 ③
21~25N.m
⑤
⑥
①
②
③
