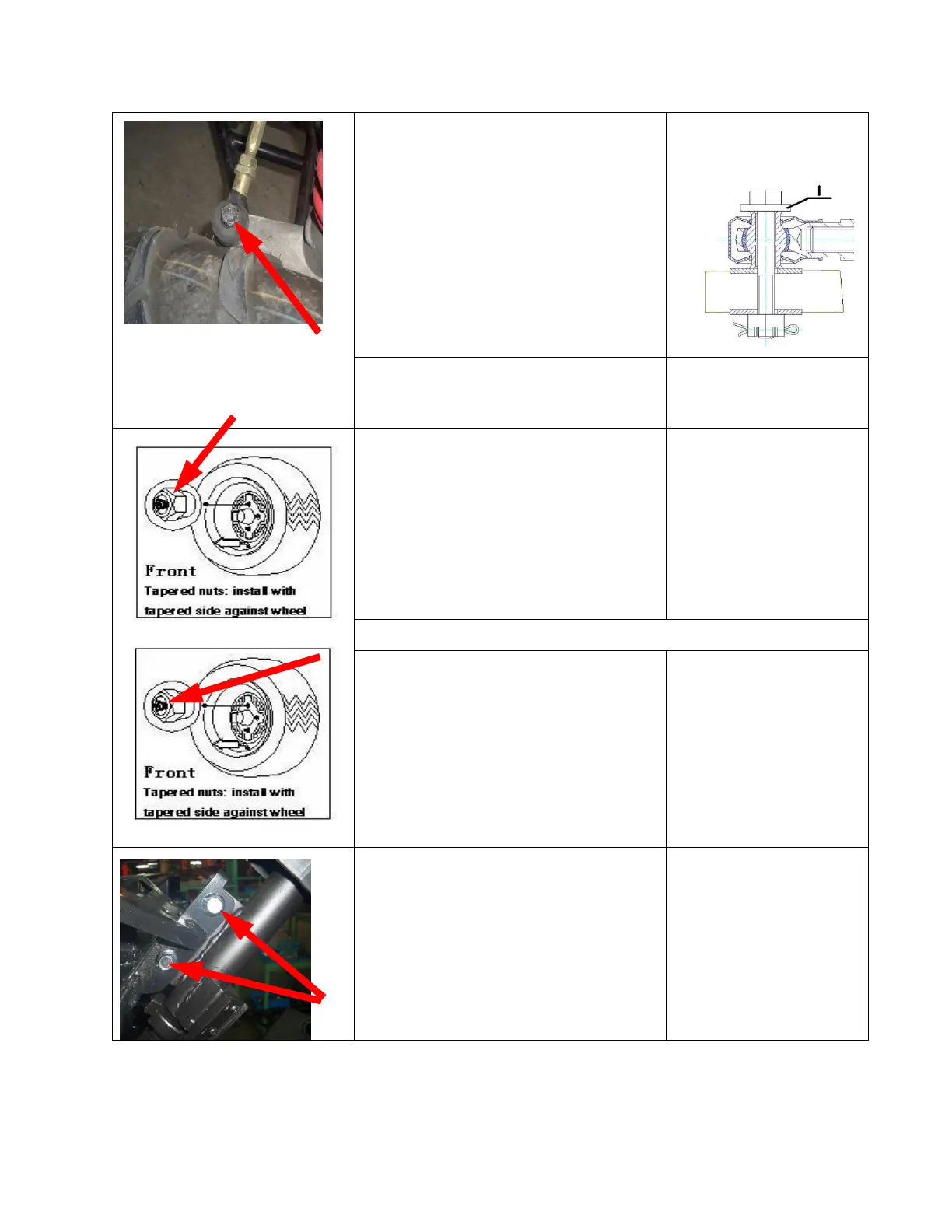

●Install the tie rod end (right & left)
to the strut body with the
attachment bolts①M12×1.25×55
and three washer10 securely
tightened.
NOTE：Press and leave go of front
suspensions. Damping should be
smooth throughout the range of
travel. Check all front suspension
components for wear or damage,
inspecting the shocks for leakage.
Torque of bolt ①M12
× 1.25×55: 35-
41N.m.
Shock spring preload can be
adjusted using the shock spanner
wrench.
Install the front wheels (right & left)
to the front hubs by the use of
locknuts②.
Make sure tapered end of nut goes
into taper on wheel.
CAUTION: If wheels are improperly
installed it could affect vehicle
handling and tire wear.
Torque of nut②
66N.m
Tire
pressure(front):7PSI
Install the rear wheels (right & left)
to the rear hubs by the use of
locknuts③.
Make sure tapered end of nut goes
into taper on wheel.
CAUTION: If wheels are improperly
installed it could affect vehicle
handling and tire wear.
Torque of nut③ :
66N.m
Tire
pressure(rear):7PSI
●Connect the cable of the control
switch group.
●Install the steering wheel
assembly on the frame by the use
of two bolts④ M10×1.25× 30.
Torque of bolt④:
35~40N.m
To Next Page
