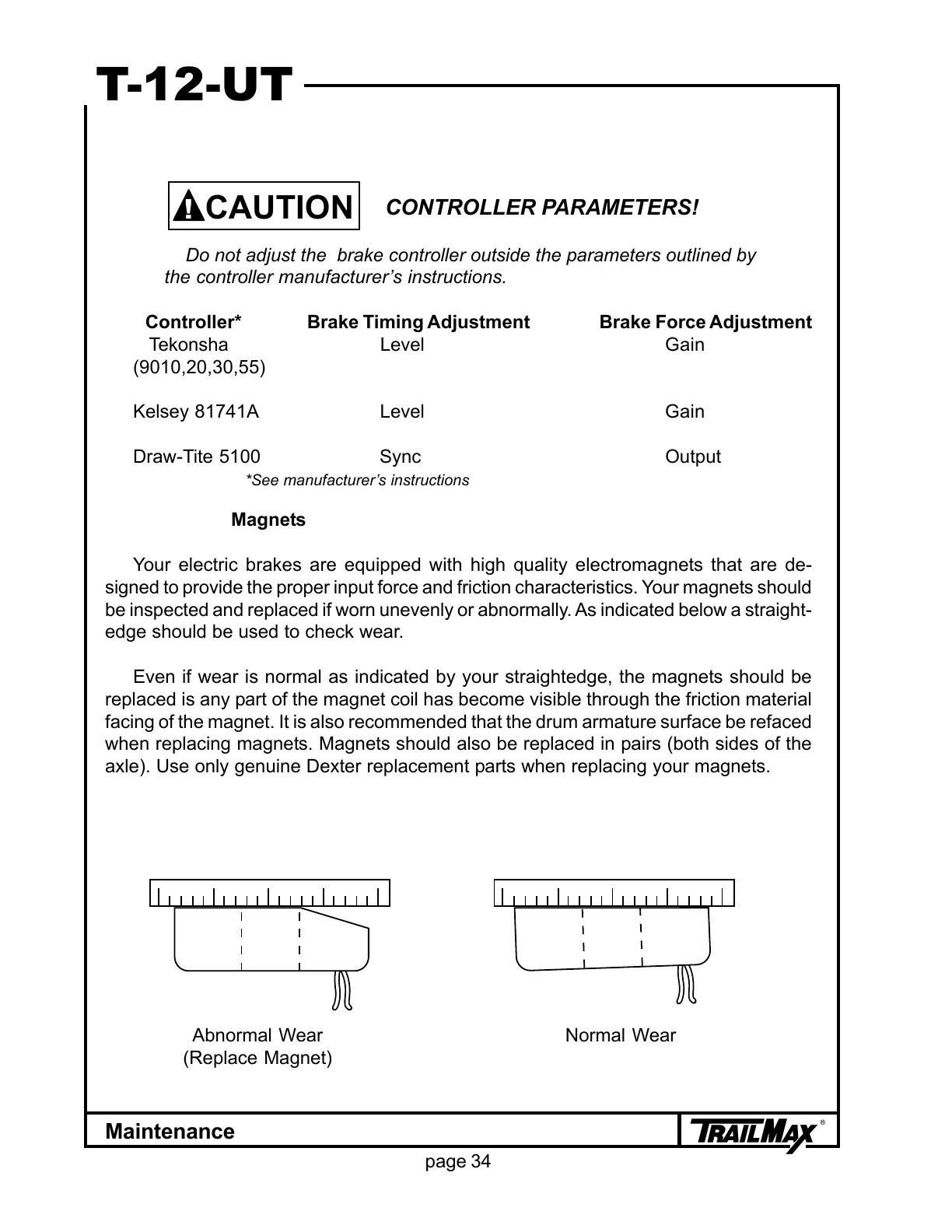

page 34
T-12-UT
Maintenance
Abnormal Wear
(Replace Magnet)
Normal Wear
CONTROLLER PARAMETERS!
Do not adjust the brake controller outside the parameters outlined by
the controller manufacturer’s instructions.
Controller* Brake Timing Adjustment Brake Force Adjustment
Tekonsha Level Gain
(9010,20,30,55)
Kelsey 81741A Level Gain
Draw-Tite 5100 Sync Output
*See manufacturer’s instructions
Magnets
Your electric brakes are equipped with high quality electromagnets that are de-
signed to provide the proper input force and friction characteristics. Your magnets should
be inspected and replaced if worn unevenly or abnormally. As indicated below a straight-
edge should be used to check wear.
Even if wear is normal as indicated by your straightedge, the magnets should be
replaced is any part of the magnet coil has become visible through the friction material
facing of the magnet. It is also recommended that the drum armature surface be refaced
when replacing magnets. Magnets should also be replaced in pairs (both sides of the
axle). Use only genuine Dexter replacement parts when replacing your magnets.
CAUTION
!
