page 42
T-12-UT
Parts

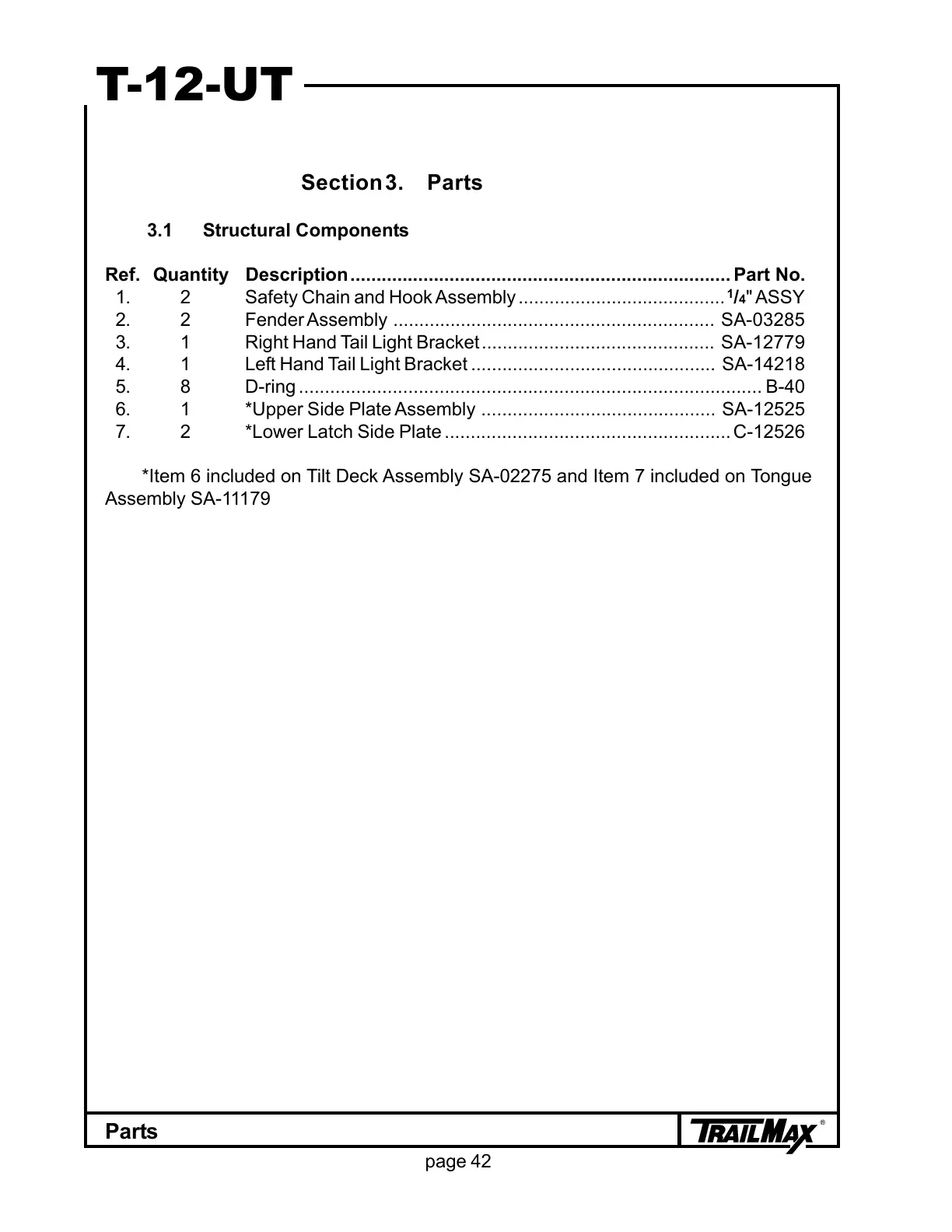

Section3. Parts
3.1 Structural Components
Ref. Quantity Description......................................................................... Part No.
1. 2 Safety Chain and Hook Assembly ........................................
1
/4" ASSY
2. 2 Fender Assembly .............................................................. SA-03285
3. 1 Right Hand Tail Light Bracket............................................. SA-12779
4. 1 Left Hand Tail Light Bracket ............................................... SA-14218
5. 8 D-ring ......................................................................................... B-40
6. 1 *Upper Side Plate Assembly ............................................. SA-12525
7. 2 *Lower Latch Side Plate ....................................................... C-12526
*Item 6 included on Tilt Deck Assembly SA-02275 and Item 7 included on Tongue
Assembly SA-11179
