TrailMax T-12-UT - Hydraulic Brake Components

®
page 52
T-12-UT
Parts

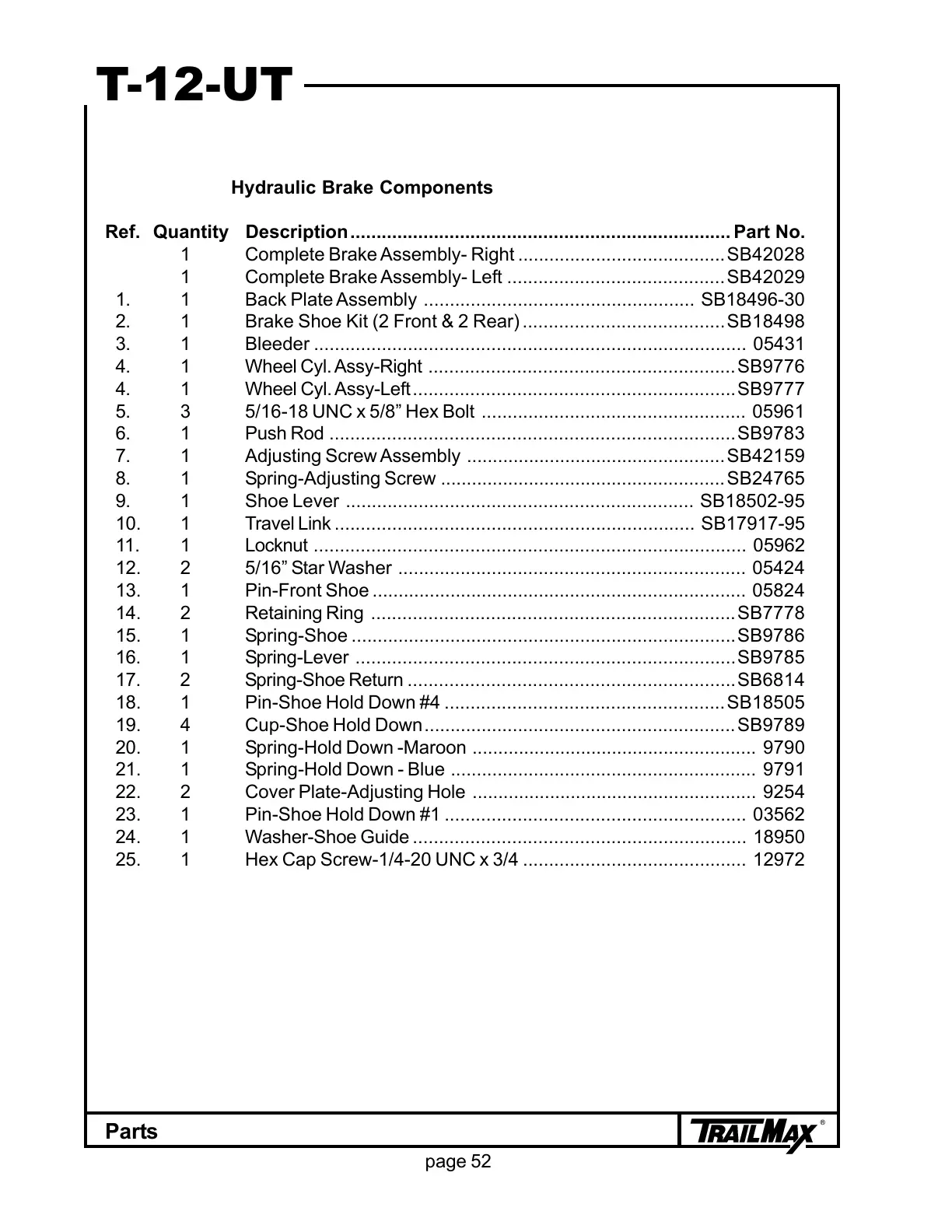

Hydraulic Brake Components
Ref. Quantity Description......................................................................... Part No.
1 Complete Brake Assembly- Right ........................................SB42028
1 Complete Brake Assembly- Left ..........................................SB42029
1. 1 Back Plate Assembly .................................................... SB18496-30
2. 1 Brake Shoe Kit (2 Front & 2 Rear) .......................................SB18498
3. 1 Bleeder ................................................................................... 05431
4. 1 Wheel Cyl. Assy-Right ...........................................................SB9776
4. 1 Wheel Cyl. Assy-Left ..............................................................SB9777
5. 3 5/16-18 UNC x 5/8” Hex Bolt ................................................... 05961
6. 1 Push Rod ..............................................................................SB9783
7. 1 Adjusting Screw Assembly ..................................................SB42159
8. 1 Spring-Adjusting Screw .......................................................SB24765
9. 1 Shoe Lever ................................................................... SB18502-95
10. 1 Travel Link ..................................................................... SB17917-95
11. 1 Locknut ................................................................................... 05962
12. 2 5/16” Star Washer ................................................................... 05424
13. 1 Pin-Front Shoe ........................................................................ 05824
14. 2 Retaining Ring ......................................................................SB7778
15. 1 Spring-Shoe ..........................................................................SB9786
16. 1 Spring-Lever .........................................................................SB9785
17. 2 Spring-Shoe Return ...............................................................SB6814
18. 1 Pin-Shoe Hold Down #4 ......................................................SB18505
19. 4 Cup-Shoe Hold Down............................................................SB9789
20. 1 Spring-Hold Down -Maroon ....................................................... 9790
21. 1 Spring-Hold Down - Blue ........................................................... 9791
22. 2 Cover Plate-Adjusting Hole ....................................................... 9254
23. 1 Pin-Shoe Hold Down #1 .......................................................... 03562
24. 1 Washer-Shoe Guide ................................................................ 18950
25. 1 Hex Cap Screw-1/4-20 UNC x 3/4 ........................................... 12972
