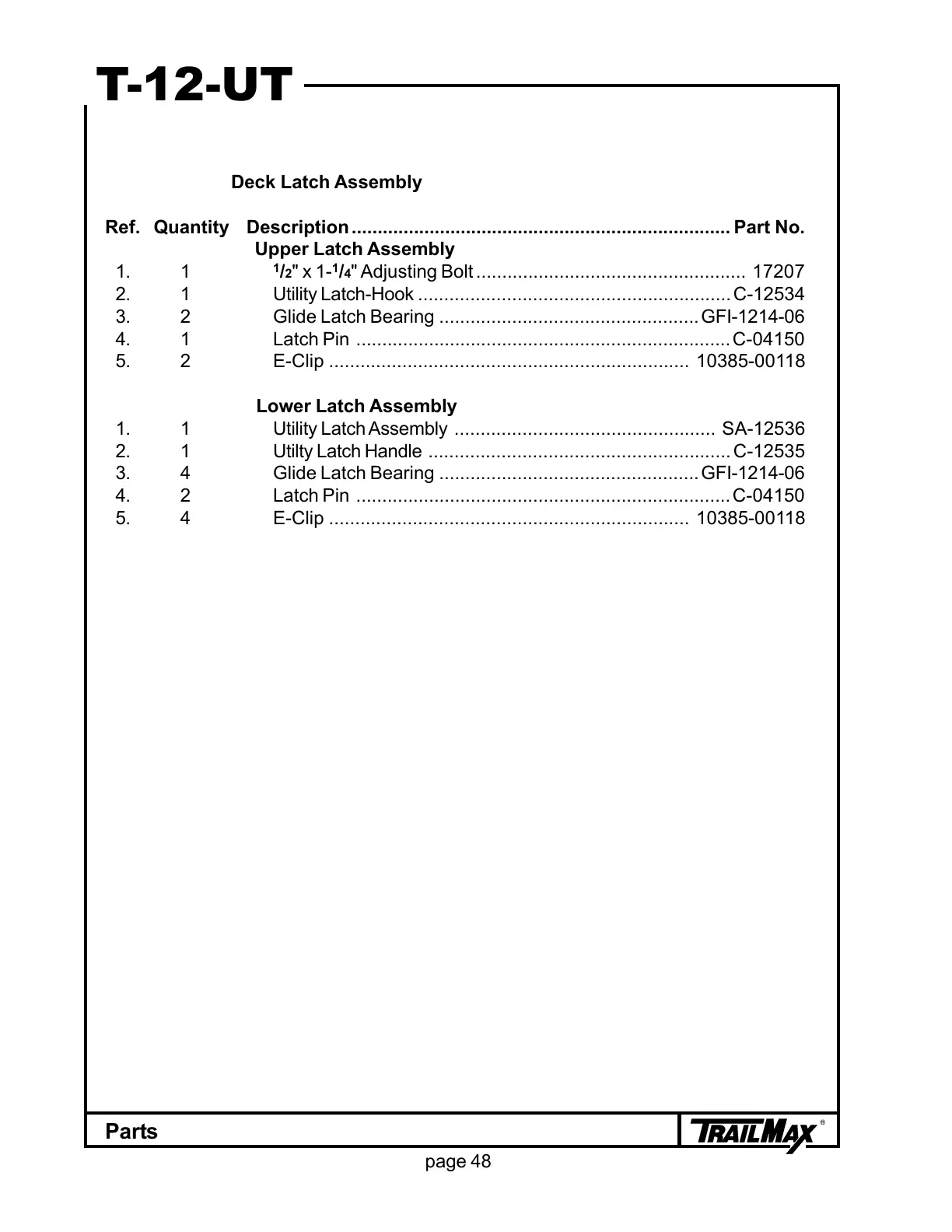

TrailMax T-12-UT - Deck Latch Assembly

®
page 48
T-12-UT
Parts
Deck Latch Assembly
Ref. Quantity Description ......................................................................... Part No.
Upper Latch Assembly
1. 1
1
/2" x 1-
1
/4" Adjusting Bolt .................................................... 17207
2. 1 Utility Latch-Hook ............................................................ C-12534
3. 2 Glide Latch Bearing ..................................................GFI-1214-06
4. 1 Latch Pin ........................................................................C-04150
5. 2 E-Clip ..................................................................... 10385-00118
Lower Latch Assembly
1. 1 Utility Latch Assembly .................................................. SA-12536
2. 1 Utilty Latch Handle .......................................................... C-12535
3. 4 Glide Latch Bearing ..................................................GFI-1214-06
4. 2 Latch Pin ........................................................................C-04150
5. 4 E-Clip ..................................................................... 10385-00118
