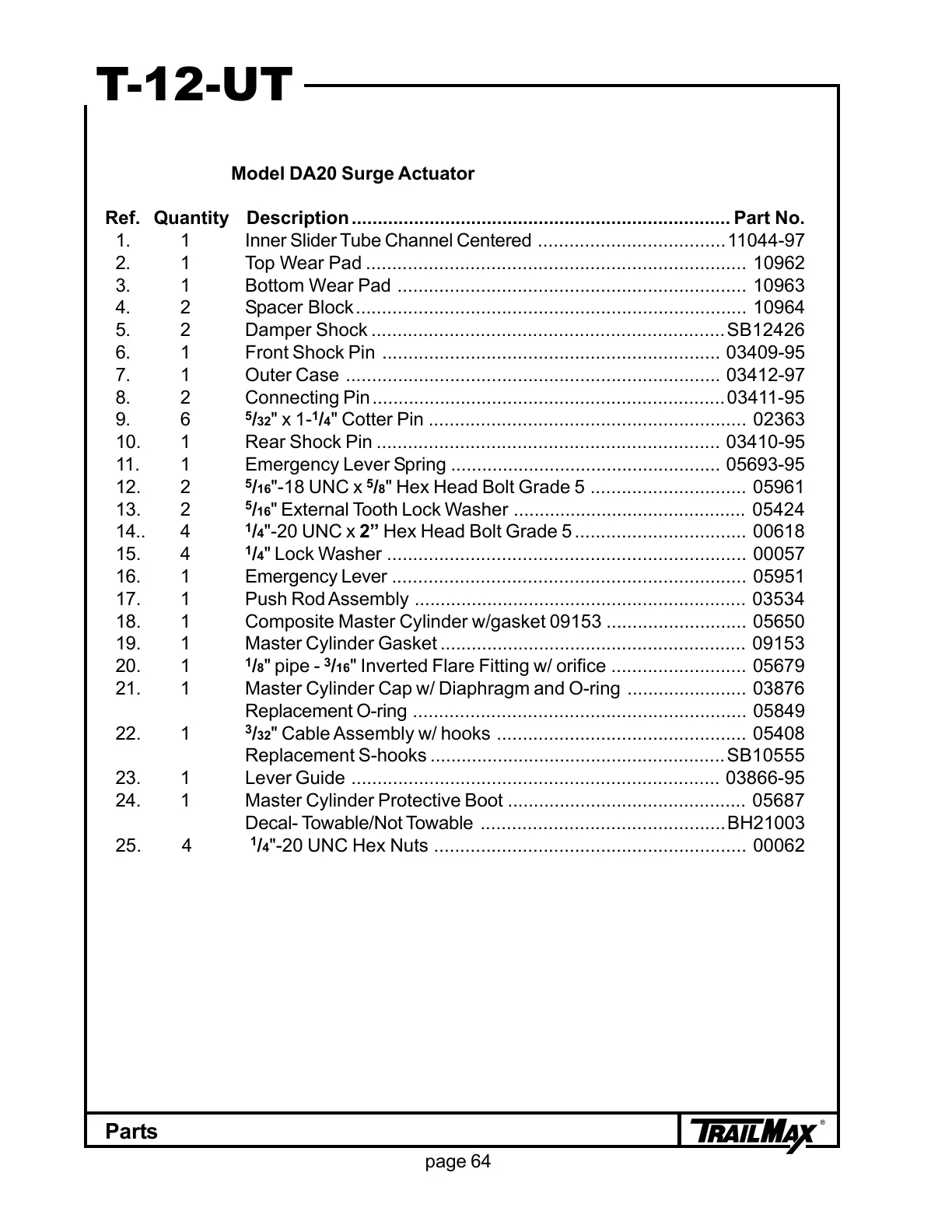

page 64
T-12-UT
Parts
Model DA20 Surge Actuator
Ref. Quantity Description ......................................................................... Part No.
1. 1 Inner Slider Tube Channel Centered ....................................11044-97
2. 1 Top Wear Pad ......................................................................... 10962
3. 1 Bottom Wear Pad ................................................................... 10963
4. 2 Spacer Block........................................................................... 10964
5. 2 Damper Shock ....................................................................SB12426
6. 1 Front Shock Pin ................................................................. 03409-95
7. 1 Outer Case ........................................................................ 03412-97
8. 2 Connecting Pin....................................................................03411-95
9. 6
5
/32" x 1-
1
/4" Cotter Pin ............................................................. 02363
10. 1 Rear Shock Pin .................................................................. 03410-95
11. 1 Emergency Lever Spring .................................................... 05693-95
12. 2
5
/16"-18 UNC x
5
/8" Hex Head Bolt Grade 5 .............................. 05961
13. 2
5
/16" External Tooth Lock Washer ............................................. 05424
14.. 4
1
/4"-20 UNC x 2” Hex Head Bolt Grade 5 ................................. 00618
15. 4
1
/4" Lock Washer ..................................................................... 00057
16. 1 Emergency Lever .................................................................... 05951
17. 1 Push Rod Assembly ................................................................ 03534
18. 1 Composite Master Cylinder w/gasket 09153 ........................... 05650
19. 1 Master Cylinder Gasket ........................................................... 09153
20. 1
1
/8" pipe -
3
/16" Inverted Flare Fitting w/ orifice .......................... 05679
21. 1 Master Cylinder Cap w/ Diaphragm and O-ring ....................... 03876
Replacement O-ring ................................................................ 05849
22. 1
3
/32" Cable Assembly w/ hooks ................................................ 05408
Replacement S-hooks .........................................................SB10555
23. 1 Lever Guide ....................................................................... 03866-95
24. 1 Master Cylinder Protective Boot .............................................. 05687
Decal- Towable/Not Towable ...............................................BH21003
25. 4
1
/4"-20 UNC Hex Nuts ............................................................ 00062
