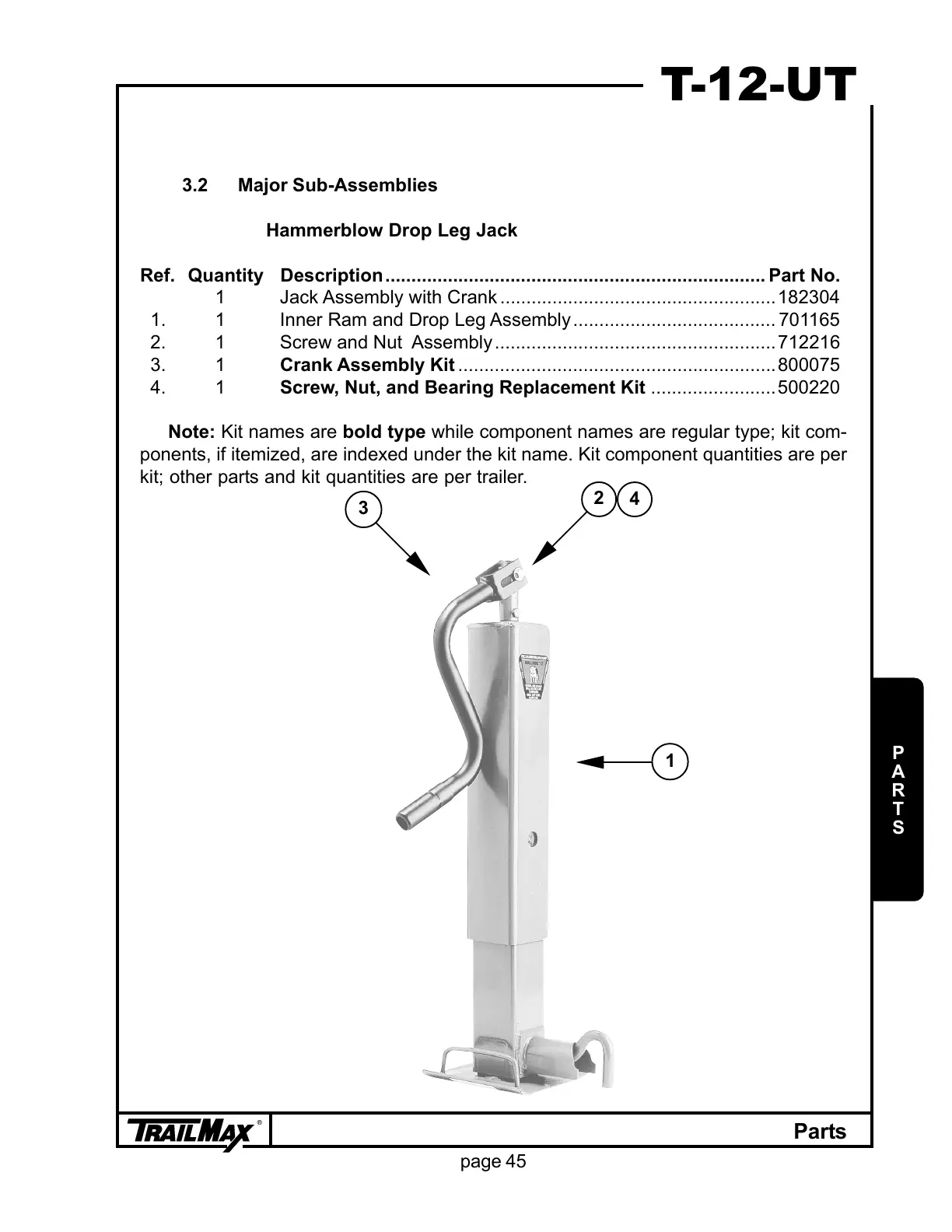

TrailMax T-12-UT - Major Sub-Assemblies; Hammerblow Drop Leg Jack

®
page 45
T-12-UT
3.2 Major Sub-Assemblies
Hammerblow Drop Leg Jack
Ref. Quantity Description......................................................................... Part No.
1 Jack Assembly with Crank .....................................................182304
1. 1 Inner Ram and Drop Leg Assembly ....................................... 701165
2. 1 Screw and Nut Assembly ......................................................712216
3. 1 Crank Assembly Kit .............................................................800075
4. 1 Screw, Nut, and Bearing Replacement Kit ........................500220
Note: Kit names are bold type while component names are regular type; kit com-
ponents, if itemized, are indexed under the kit name. Kit component quantities are per
kit; other parts and kit quantities are per trailer.
