TrailMax T-12-UT - Electric Brake Components, 7 K

®
page 54
T-12-UT
Parts

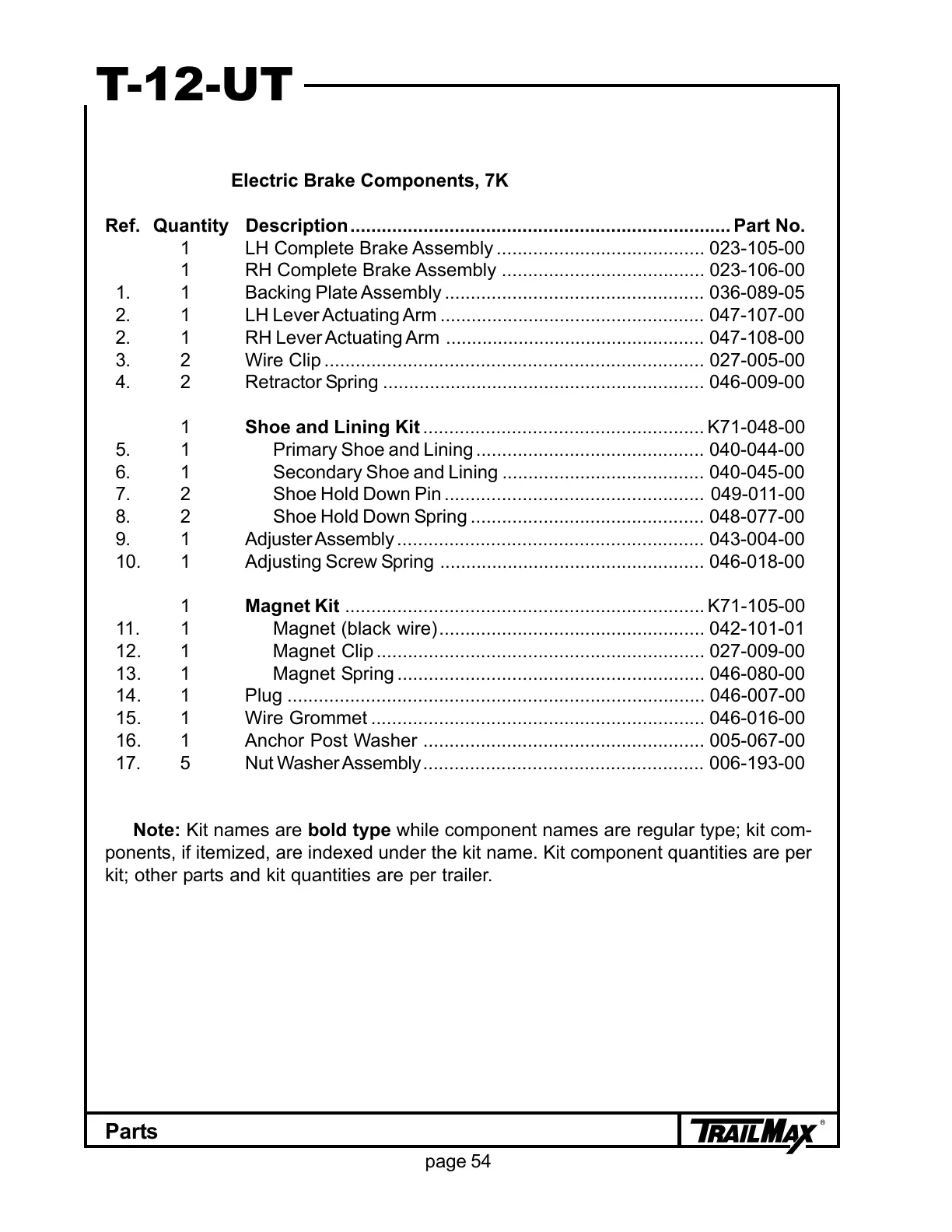

Electric Brake Components, 7K
Ref. Quantity Description......................................................................... Part No.
1 LH Complete Brake Assembly ........................................ 023-105-00
1 RH Complete Brake Assembly ....................................... 023-106-00
1. 1 Backing Plate Assembly .................................................. 036-089-05
2. 1 LH Lever Actuating Arm ................................................... 047-107-00
2. 1 RH Lever Actuating Arm .................................................. 047-108-00
3. 2 Wire Clip ......................................................................... 027-005-00
4. 2 Retractor Spring .............................................................. 046-009-00
1 Shoe and Lining Kit ...................................................... K71-048-00
5. 1 Primary Shoe and Lining ............................................ 040-044-00
6. 1 Secondary Shoe and Lining ....................................... 040-045-00
7. 2 Shoe Hold Down Pin .................................................. 049-011-00
8. 2 Shoe Hold Down Spring ............................................. 048-077-00
9. 1 Adjuster Assembly ........................................................... 043-004-00
10. 1 Adjusting Screw Spring ................................................... 046-018-00
1 Magnet Kit ..................................................................... K71-105-00
11. 1 Magnet (black wire)................................................... 042-101-01
12. 1 Magnet Clip ............................................................... 027-009-00
13. 1 Magnet Spring ........................................................... 046-080-00
14. 1 Plug ................................................................................ 046-007-00
15. 1 Wire Grommet ................................................................ 046-016-00
16. 1 Anchor Post Washer ...................................................... 005-067-00
17. 5 Nut Washer Assembly...................................................... 006-193-00
Note: Kit names are bold type while component names are regular type; kit com-
ponents, if itemized, are indexed under the kit name. Kit component quantities are per
kit; other parts and kit quantities are per trailer.
