TrailMax T-12-UT - Axle End Components

®
page 56
T-12-UT
Parts
1
3
2
4
5
7
9
11
6
8
10
12

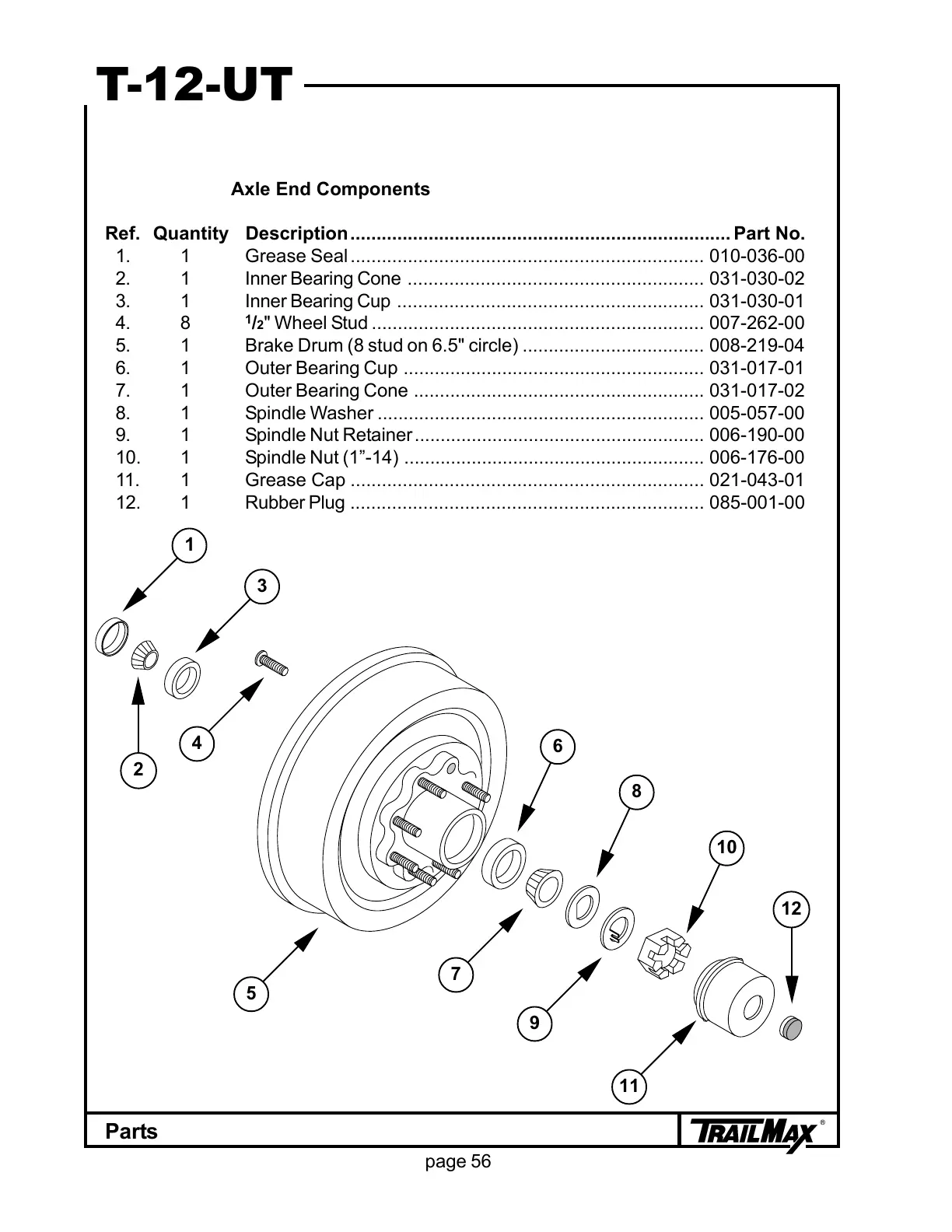

Axle End Components
Ref. Quantity Description......................................................................... Part No.
1. 1 Grease Seal .................................................................... 010-036-00
2. 1 Inner Bearing Cone ......................................................... 031-030-02
3. 1 Inner Bearing Cup ........................................................... 031-030-01
4. 8
1
/2" Wheel Stud ................................................................ 007-262-00
5. 1 Brake Drum (8 stud on 6.5" circle) ................................... 008-219-04
6. 1 Outer Bearing Cup .......................................................... 031-017-01
7. 1 Outer Bearing Cone ........................................................ 031-017-02
8. 1 Spindle Washer ............................................................... 005-057-00
9. 1 Spindle Nut Retainer........................................................ 006-190-00
10. 1 Spindle Nut (1”-14) .......................................................... 006-176-00
11. 1 Grease Cap .................................................................... 021-043-01
12. 1 Rubber Plug .................................................................... 085-001-00
