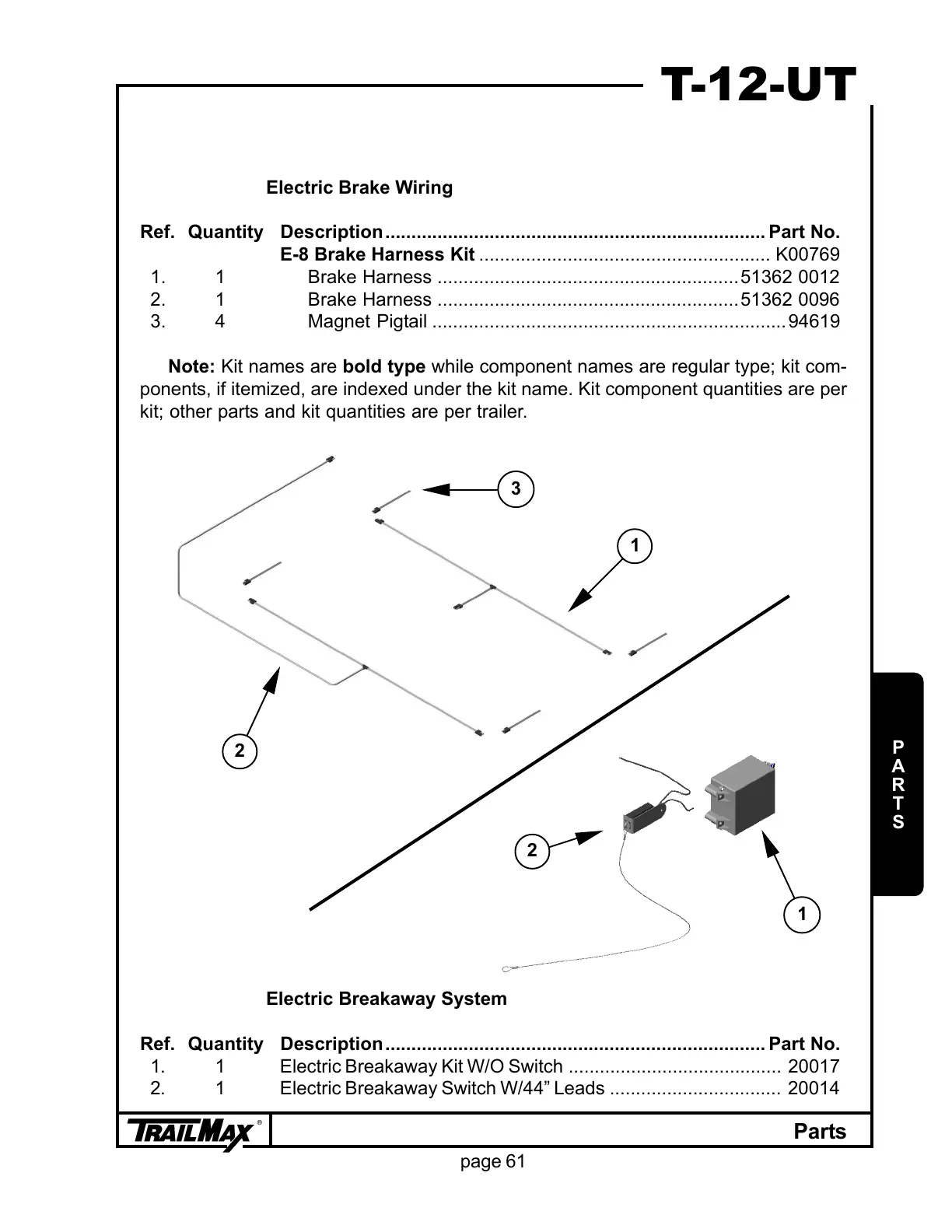

TrailMax T-12-UT - Electric Brake Wiring; Electric Breakaway System

®
page 61
T-12-UT
P
A
R
T
S
Parts
Electric Brake Wiring
Ref. Quantity Description......................................................................... Part No.
E-8 Brake Harness Kit ........................................................ K00769
1. 1 Brake Harness ..........................................................51362 0012
2. 1 Brake Harness ..........................................................51362 0096
3. 4 Magnet Pigtail ....................................................................94619
Note: Kit names are bold type while component names are regular type; kit com-
ponents, if itemized, are indexed under the kit name. Kit component quantities are per
kit; other parts and kit quantities are per trailer.
3
1
2
Electric Breakaway System
Ref. Quantity Description......................................................................... Part No.
1. 1 Electric Breakaway Kit W/O Switch ......................................... 20017
2. 1 Electric Breakaway Switch W/44” Leads ................................. 20014
1
2
