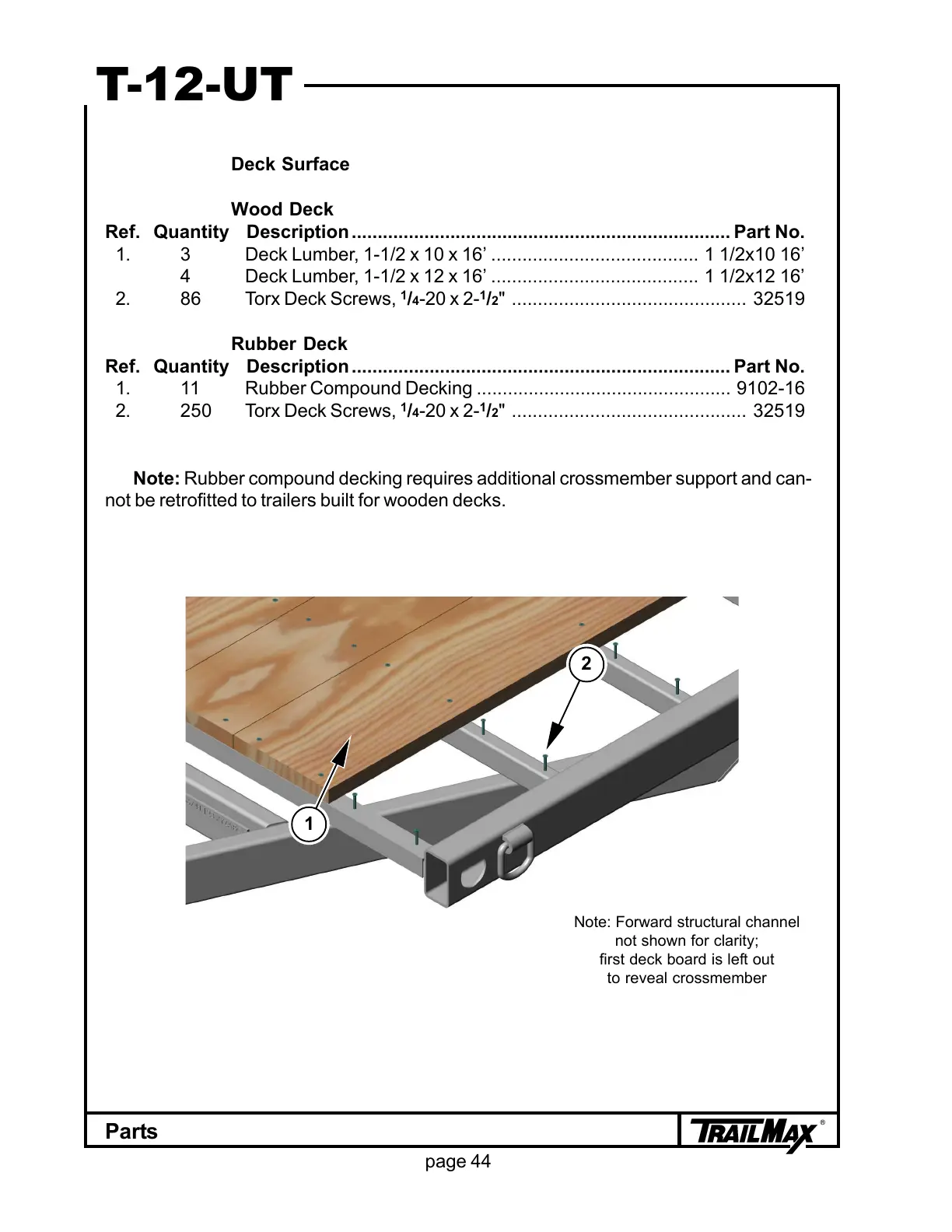

TrailMax T-12-UT - Deck Surface

®
page 44
T-12-UT
Parts
Note: Forward structural channel
not shown for clarity;
first deck board is left out
to reveal crossmember
1
2
Deck Surface
Wood Deck
Ref. Quantity Description ......................................................................... Part No.
1. 3 Deck Lumber, 1-1/2 x 10 x 16’ ........................................ 1 1/2x10 16’
4 Deck Lumber, 1-1/2 x 12 x 16’ ........................................ 1 1/2x12 16’
2. 86 Torx Deck Screws,
1
/4-20 x 2-
1
/2" ............................................. 32519
Rubber Deck
Ref. Quantity Description ......................................................................... Part No.
1. 11 Rubber Compound Decking ................................................. 9102-16
2. 250 Torx Deck Screws,
1
/4-20 x 2-
1
/2" ............................................. 32519
Note: Rubber compound decking requires additional crossmember support and can-
not be retrofitted to trailers built for wooden decks.
