page 36
T-12-UT
Maintenance
From
Trailer
Harness
From
Trailer
Harness

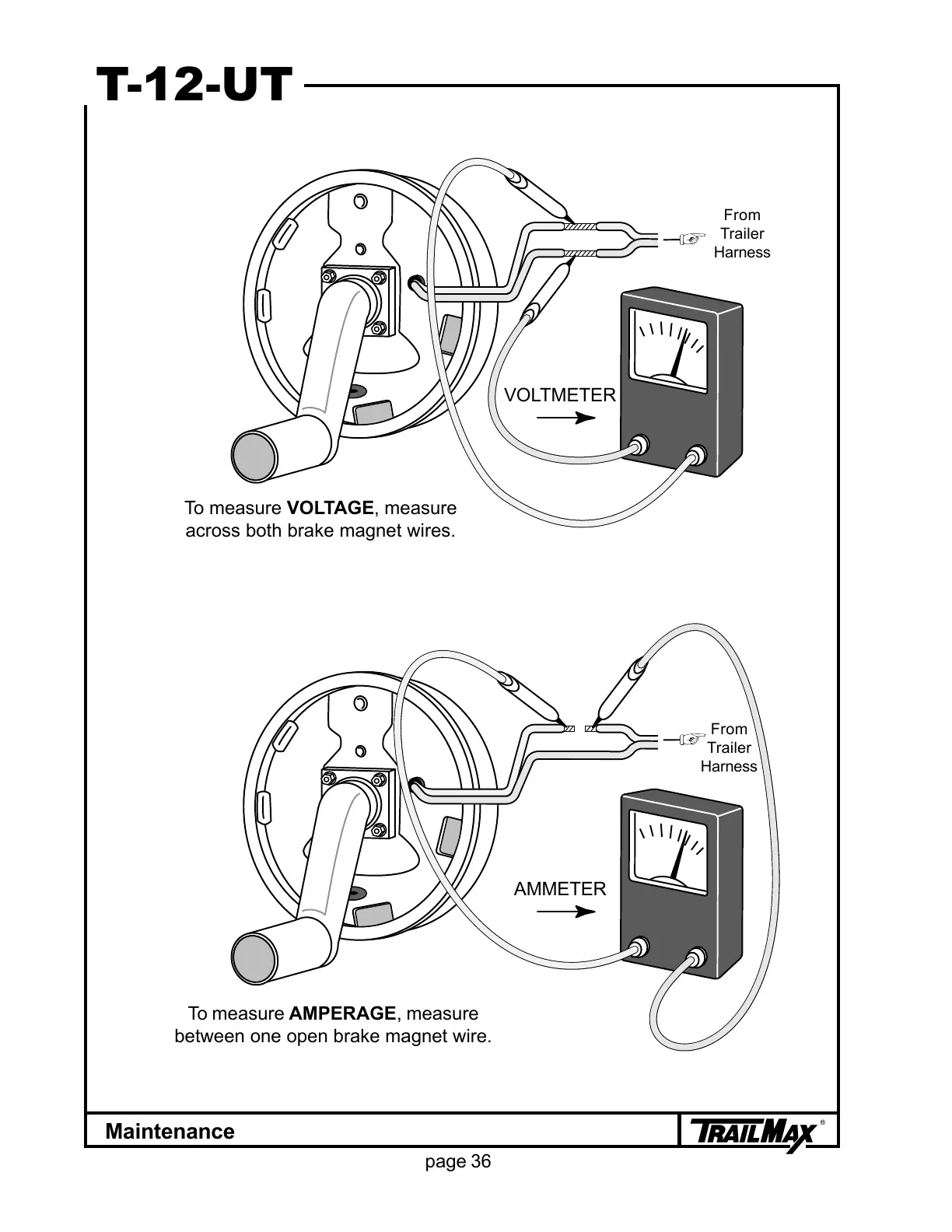

To measure VOLTAGE, measure
across both brake magnet wires.
To measure AMPERAGE, measure
between one open brake magnet wire.
VOLTMETER
AMMETER
