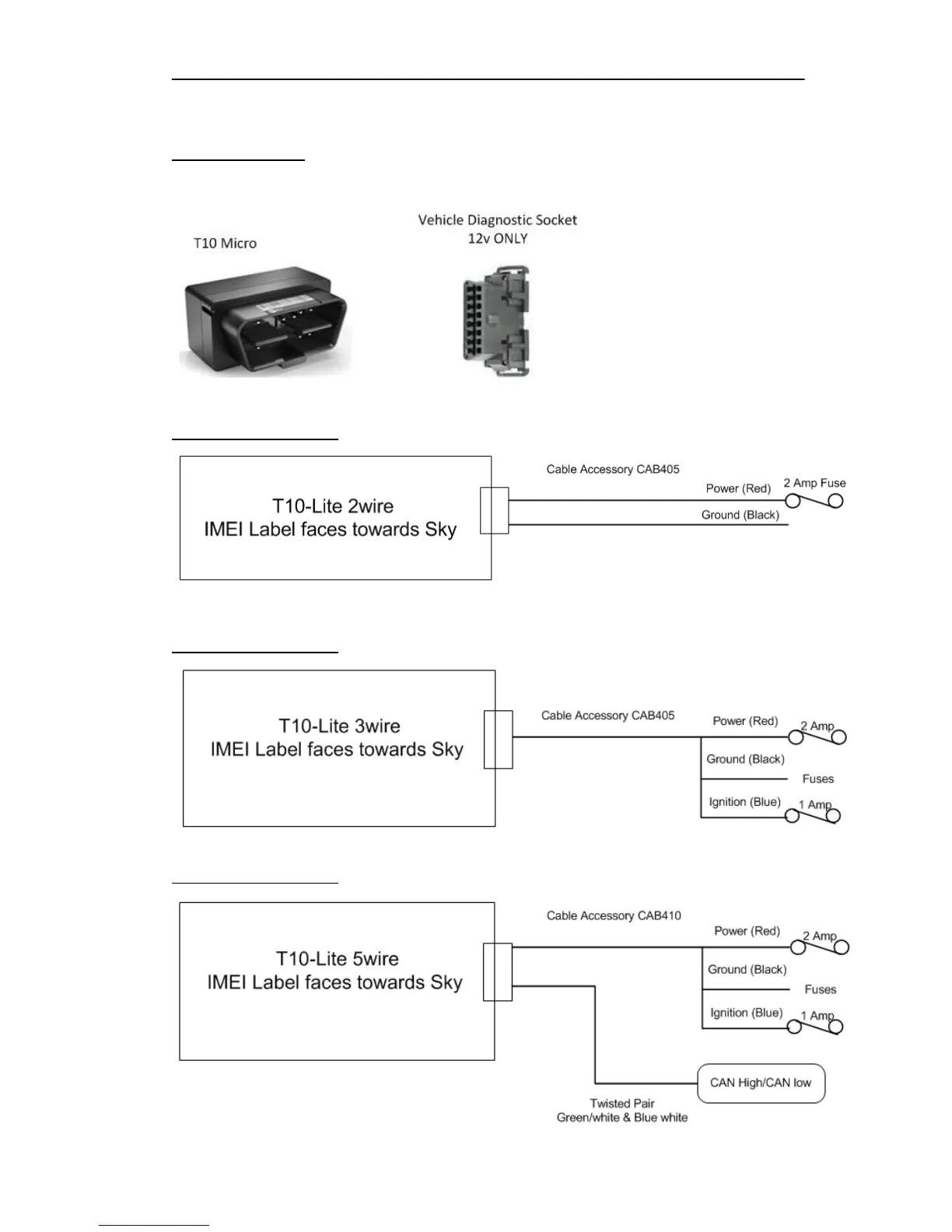

The following sections will detail the block diagrams and associated cabling for each of the T10
systems.
T10-Micro System
This system requires no wiring and simply plugs straight into the vehicle diagnostic socket.
T10-Lite 2wire System
T10-Lite 3wire System
T10-Lite 5wire System
