Trane Technologies 17 Series - Unit Dimensions

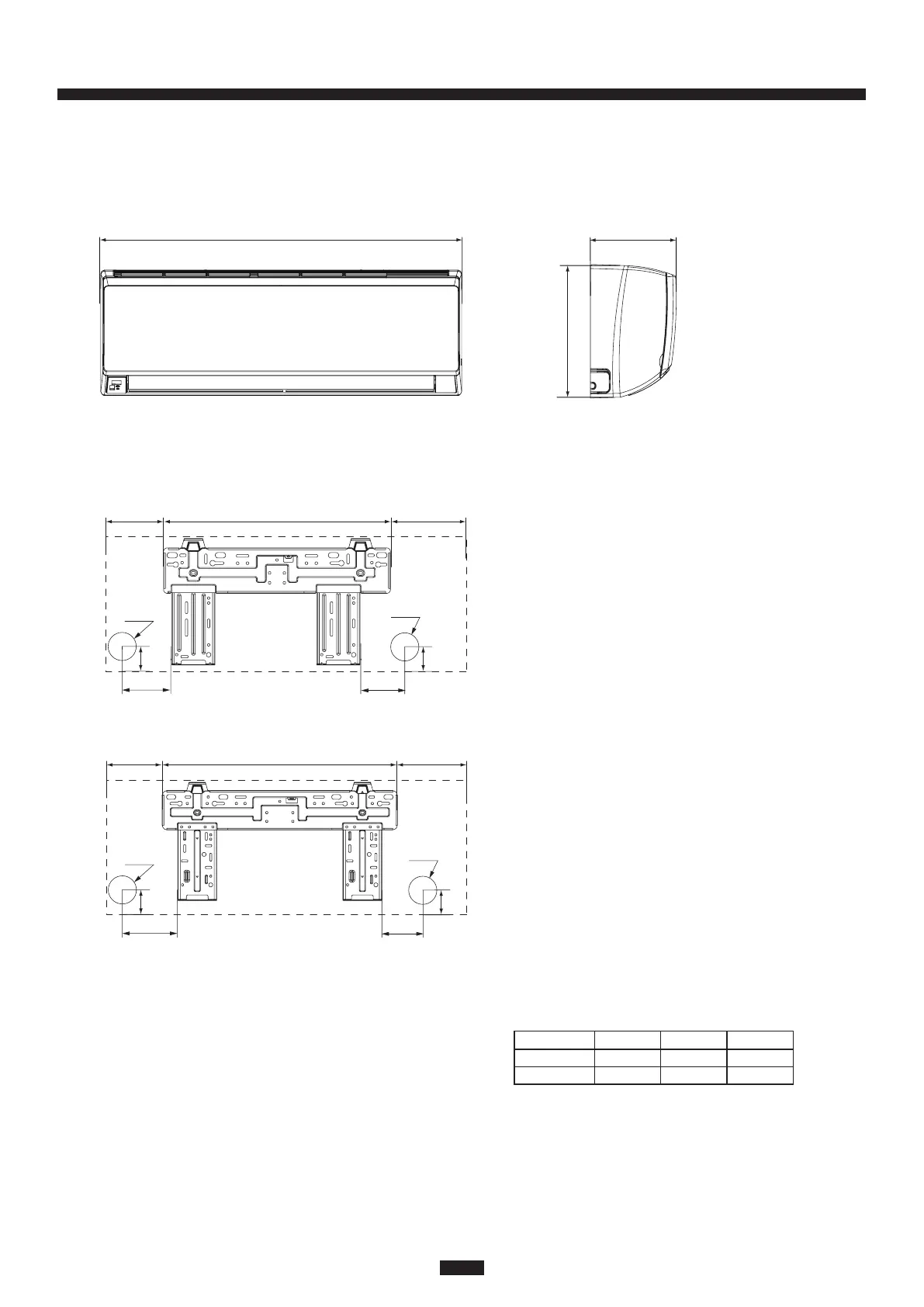

Indoor Unit Dimensions
W
D
H
3 1/2
6
2 1/8
2 1/8
6 5/8 18 3/16 6 5/16
Φ2 3/16
Φ2 3/16
Φ2 3/16
Φ2 3/16
4 11/16 21 5/16 7 1/4
3 5/16
5
1 3/8
1 3/8
MODEL W H D
09K 31 1/8 10 5/8 7 7/8
12K 33 1/4 11 3/8 8 1/4
09K
12K
Unit:inch
9K-12K Indoor Units
The dimensions in these drawings
are rounded according to standard
measurement.
