Refrigerant Line
Table 18. Refrigerant Line Connection Sizes
Model
Vapor Line Connection Liquid Line Connection
5TAMXB02AV21DA
3/4 3/8
5TAMXC03AV31DA
3/4 3/8
5TAMXD04AV31DA
7/8 3/8
5TAMXD05AV41DA
7/8 3/8
5TAMXD06AV41DA
7/8 3/8
5TAMXD07AV51DA
7/8 3/8
Notes:
1. This table indicates the tubing connection diameters at the indoor coil. A field supplied reducing coupling may be required.
2. All AHRI listed systems are tested with 25 feet of refrigeration tubing; the rated tubing diameters are located in the electronic performance
data system.
3. If the refrigeration lines exceed 60 feet in linear length and/or if alternate size refrigeration tubing is present at the job, please consult SS-
APG006–EN or 32–3312** (latest version)

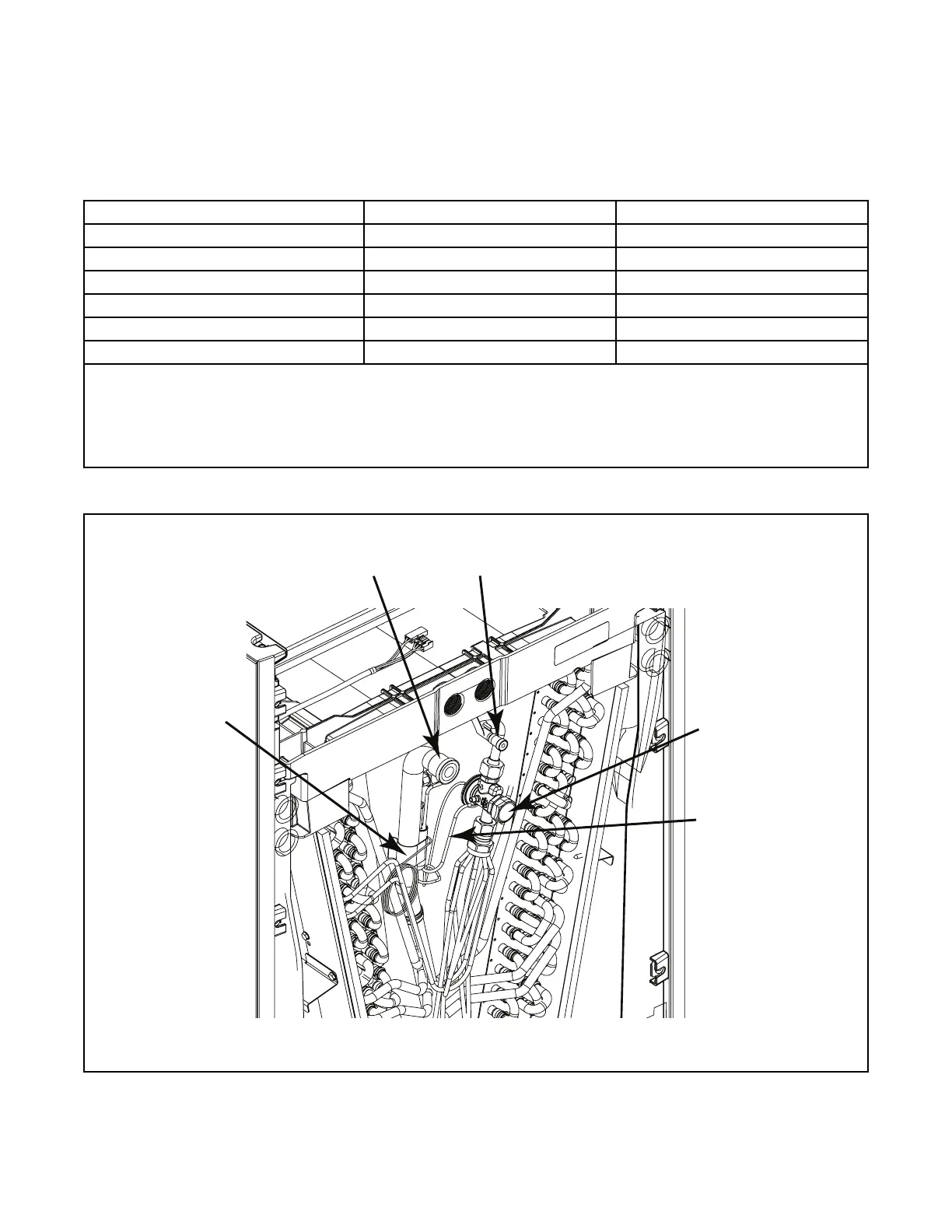

Refrigerant System Layout
Vapor Line Liquid Line
TXV
External
Equalizer
Line
TXV
Sensing
Bulb
