18-GJ96D1-1B-EN
65

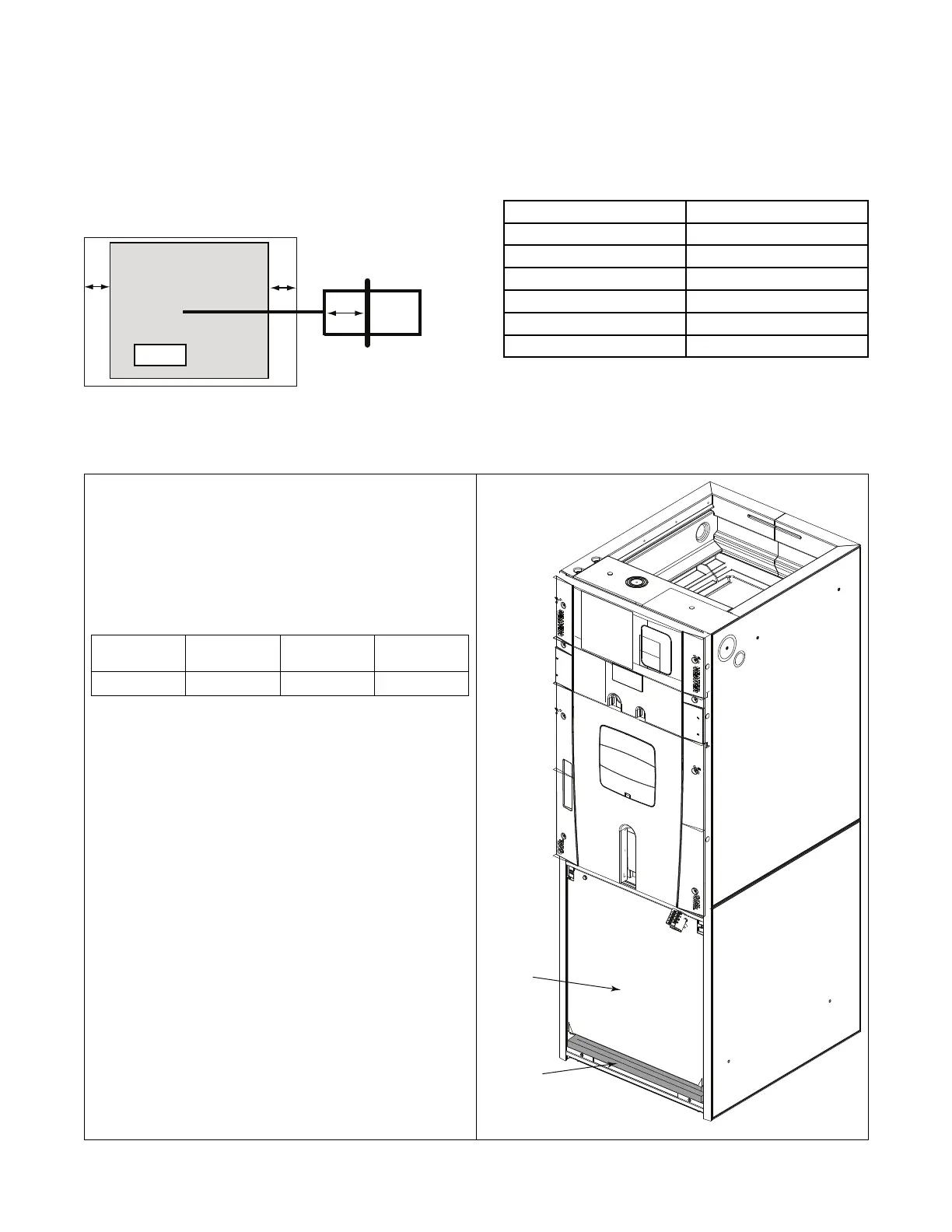

Distance from Belly Band to Shaft Face of Motor for
Minimum Vibration
WHEEL
BLOWER HOUSING
MOTOR
A
“A” is determined per chart
Wheel is centered in
Blower Housing
BELLY BAND
MODEL DIM “ A “
5TAMXB02AV21DA
2–3/8
5TAMXC03AV31DA
2–3/8
5TAMXD04AV31DA
2–3/8
5TAMXD05AV41DA
2–3/8
5TAMXD06AV41DA
2–3/8
5TAMXD07AV51DA
2–3/8
Filters
Table 30. Filter Considerations
• A filter must be installed within the system.
• A filter channel is provided in the unit at the bottom of the Blower/
Filter compartment.
• For customer ease of filter maintenance, it is recommended that a
properly sized remote filter grill(s) be installed for units that are
difficult to access. Airflow should not exceed the maximum rated
velocity of the filter being used.
Table 31. Filter Sizes
Cabinet
Width
17.5" 21.0" 23.5"
Filter Size 16 x 20 20 x 20 22 x 20
Filter in
air handler cabinet
(Upflow
Application)
Block off
plate
