18-GJ96D1-1B-EN
43

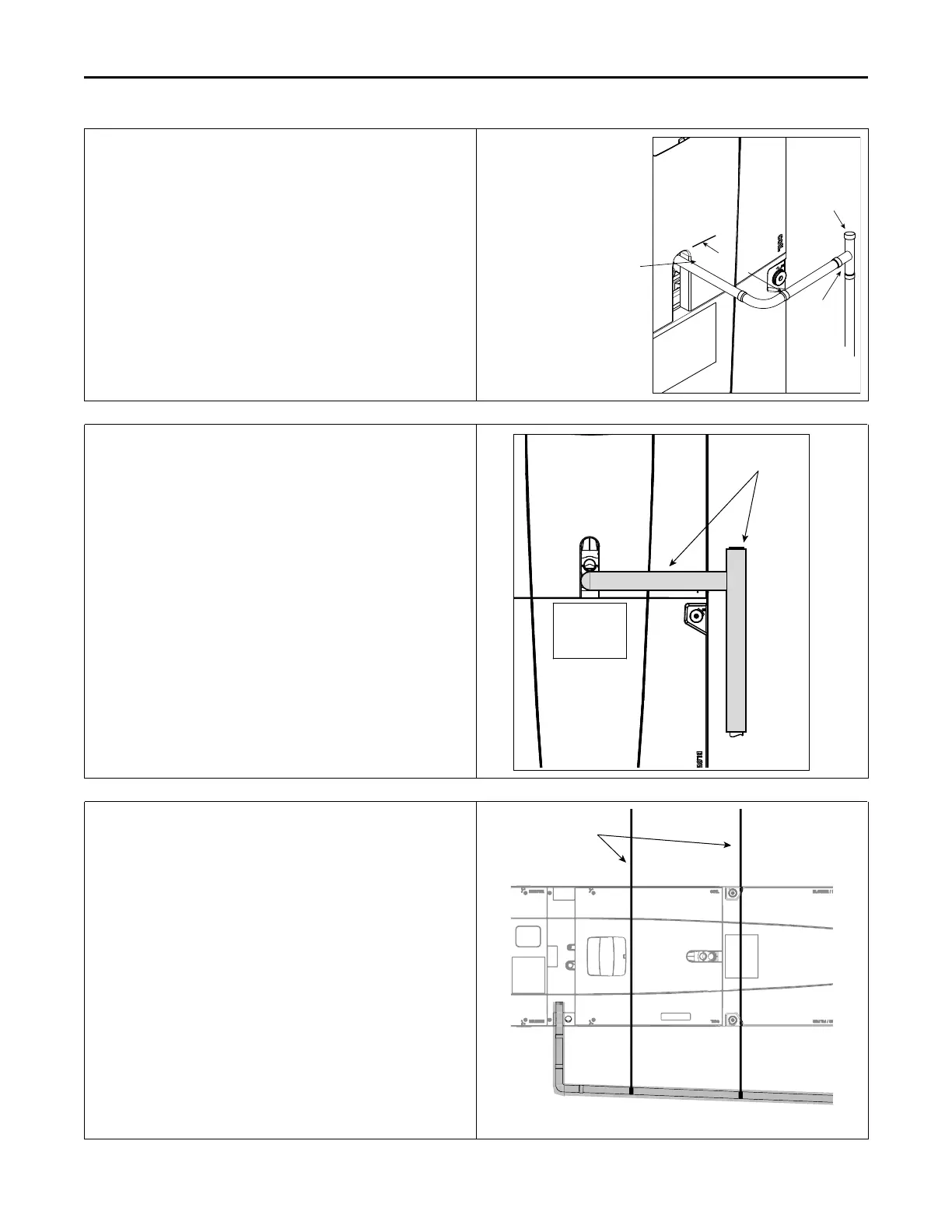

4. Install a clean-out tee in the primary drain line for future
maintenance. It is recommended that you install a cap on the top
of the tee.
1.5” min.
Cap
Tee
1.5” min. clearance
is recommended
from cabinet to
inside edge of
tubing
5. Insulate the primary drain line to prevent sweating where dew
point temperatures may be met. (Optional depending on climate
and application needs.)
Provide a means of drainage to prevent winter freeze-up of
condensate line (Optional depending on climate and application
needs).
6. Support the condensate piping outside the unit per local codes for
proper drainage and to prevent sagging.
Allow 1/4” of downward slope for each foot of pipe.
Note: If using downflow or horizontal drain lines, A2L sensor is
required to be relocated. refer to Four-Way Conversion section
for more details.
Condensate
Piping
Supports
CCoonnddeennssaattee DDrraaiinn PPiippiinngg
