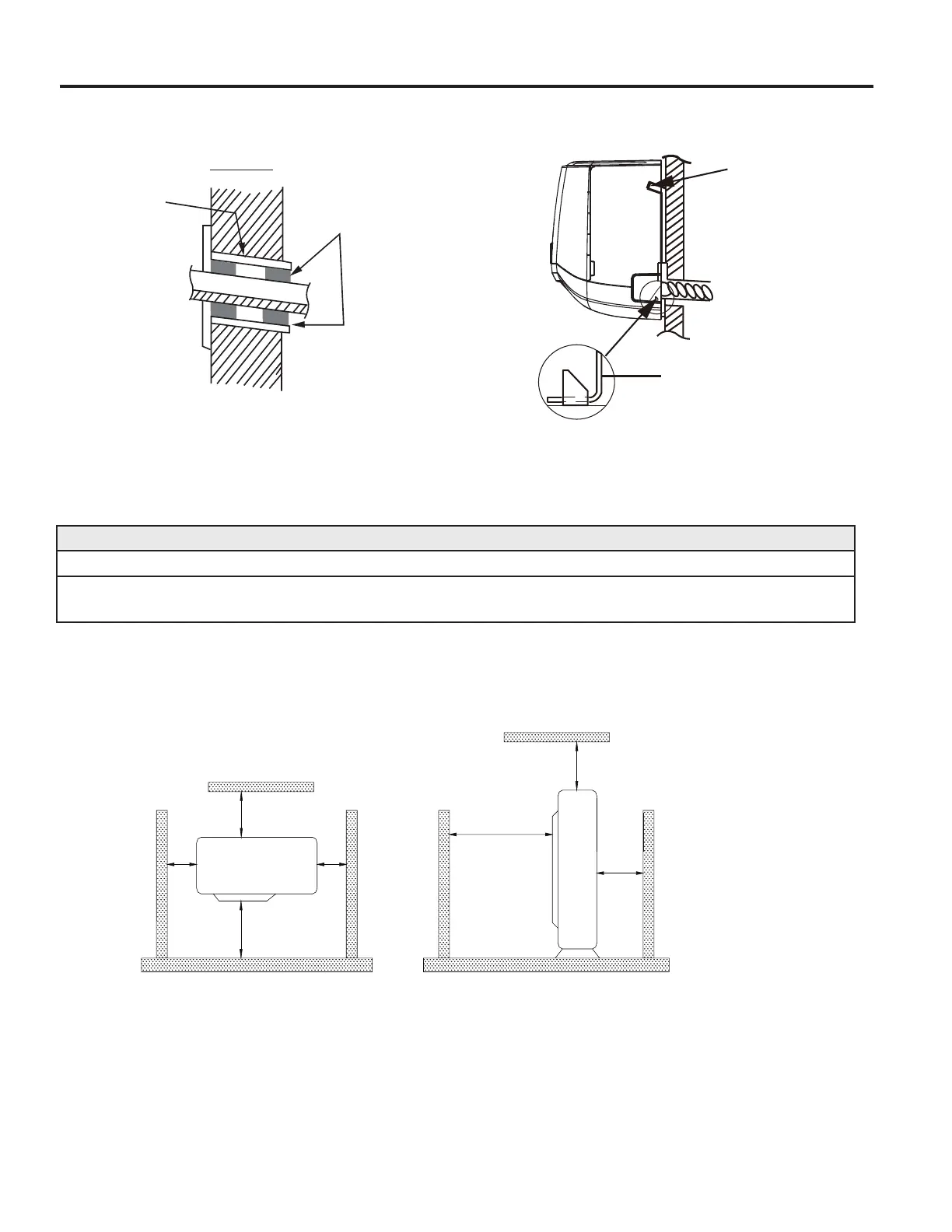

17 Series Mini-Split
upper hook
lower hook of
wall-mounting frame
Seal Pad
Outdoor
Indoor
Wall Sleeve
Installing the Outdoor Unit
NOTICE
1. Install the unit on a level surface or on supports that are level.
2. If the location is subject to strong winds, the additional force must be accounted for and the unit
must be fi xed securely to the base. Refer to local codes for additional requirements.
When the outdoor unit is surrounded by walls or other obstructions, the installation space of the
unit should be no less than the clearances indicated below. For effi cient operation, leave three of
four directions of peripheral constructions open when possible.
＞12 (30)
＞20 (50)
＞79 (200)
＞12 (30)
＞12 (30)
＞12 (30)
＞79 (200)
Unit: inch (mm)
Select the installation location that provides easy access to the indoor unit.
1. Make sure the location can support at least four times the weight of the unit.
2. Secure the outdoor unit on the selected base location with expansion screws.
3. The outdoor unit should be installed at least 1 1/4 inch above the ground or base in order to
