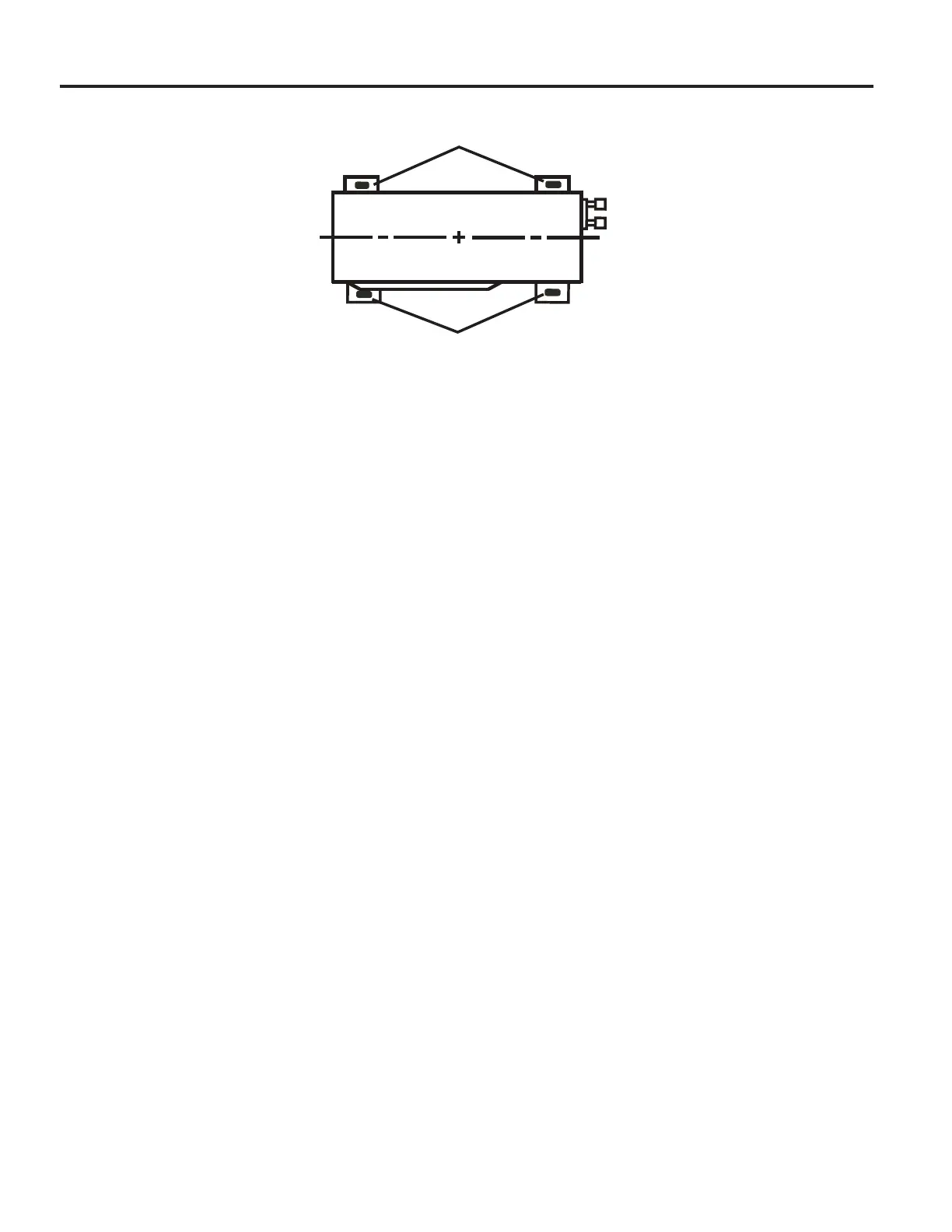

Foot holes
Foot holes
Piping Requirements
If the outdoor unit is installed lower than the indoor unit:
1. If indoor unit condensate line follows refrigeration lines, then the drain pipe termination should
be above ground in order that the end of the pipe should not dip into water.
2. Taping pipes must be done from bottom to top. Do not wrap too tightly to avoid compression of
the insulation, otherwise its eff ectiveness is reduced.
3. All pipes are bound together by pipe tape and secured to the wall with saddles.
Note: Oil traps are sometimes needed when the outdoor unit is installed lower than the indoor
unit. One oil trap is required for each 33 ft. (10m) of vertical gas pipe length.
