8 DRAIN APPLICATION
8.1 Condensate Drain Piping
8.2 Drain Pan Installation
Consult local codes for special requirements.
To provide extra protection from water damage, it is
always recommended to install an additional drain pan,
provided by installer under the entire unit with a separate
drain line. Manufacturer will not be responsible for any
damages due to the failure to follow these
recommendations.
Do not use the coil pan shipped with the unit on
OIL furnaces or any application where the
temperature of the drain pan may exceed 275 °F.
A field fabricated metal drain pan can also be
used for these type of applications.
Failure to follow this warning may result in
property damage and/or personal injury.
Use Teflon tape on the drain line connections. Do
not use pipe joint compound or PVC/CPVC
cement on drain nipple.
NOTE
Water coming from this line means the coil‘s
primary drain is plugged and needs clearing.
The coil drain pan has a primary and an optional
secondary drain with 3/4" NPT female connections; use
either PVC or copper pipe and hand tighten to a torque
of approximately 37 in-lb. to prevent damage to the drain
pan connection. An insertion depth between 0.355 to
0.485 inches (3-5 turns) should be expected at this
torque setting.
Use male 3/4" NPT threaded fitting for outside
connection and make sure the drain holes are not
blocked.
Insulation may be needed for drain line to prevent
sweating.
Drain pan has two drain connections on each side to
provide flexibility of connection and drainage. Make sure
pan has proper pitch and plugged if second connection is
not used.
If the secondary drain line is required, run the line
separately from the primary drain and terminate it where
it can be easily seen.
Install a trap in the drain line below the bottom of the
drain pan. If using a copper drain line, solder a short
piece of pipe to the connector before installing a drain
fitting. DO NOT over torque the 3/4" copper connector to
the plastic drain connection. Use a wet rag or heatsink
material on the short piece to protect plastic drain pan,
complete the rag or heatsink material on the short piece

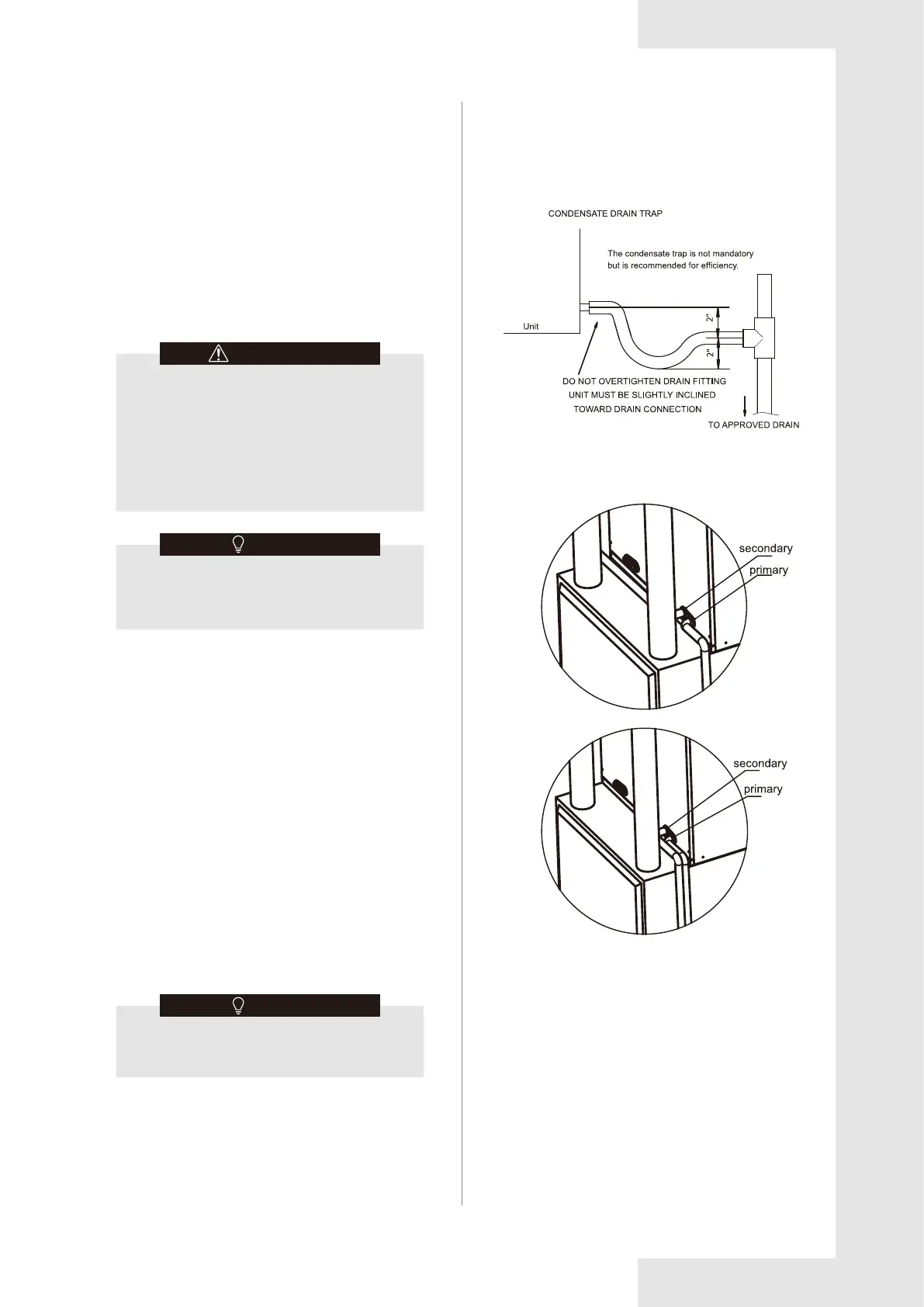

Fig. 8-1 DRAIN LINE INSTALLATION
Fig. 8-2 DRAIN PIPE ROUTING
NOTE
WARNING
9 DISPOSAL
Comply with national regulations.
Components and accessories from the units are not part of
ordinary domestic waste.
Complete units , compressors, motors etc. are only to be
disposed of via qualified disposal specialists.
This unit uses flammable refrigerant R454B. Please contact
the dealer when you want to dispose of this unit. Law
requires that the collection, transportation and disposal of
refrigerants must conform with the regulations governing
the collection and destruction of hydrofluorocarbons.
to protect plastic drain pan, complete the drain line
installation (Fig. 8-1). Use (Fig. 8-2) as a template for
typical drain pipe routing.
This figure shows how to avoid interference with vent
piping.
