07
2 ABOUT THE PRODUCT
2.1 Unit Dimensions
The coil can be positioned for bottom return air in the upflow and horizontal right applications. It must be positioned for top
return when in downflow and horizontal left applications. See figure 2-1. For furnace applications, the coil must be installed
downstream (in the air outlet) of the furnace
NOTE
This coil comes with a factory-installed heat shield on the drain pan.

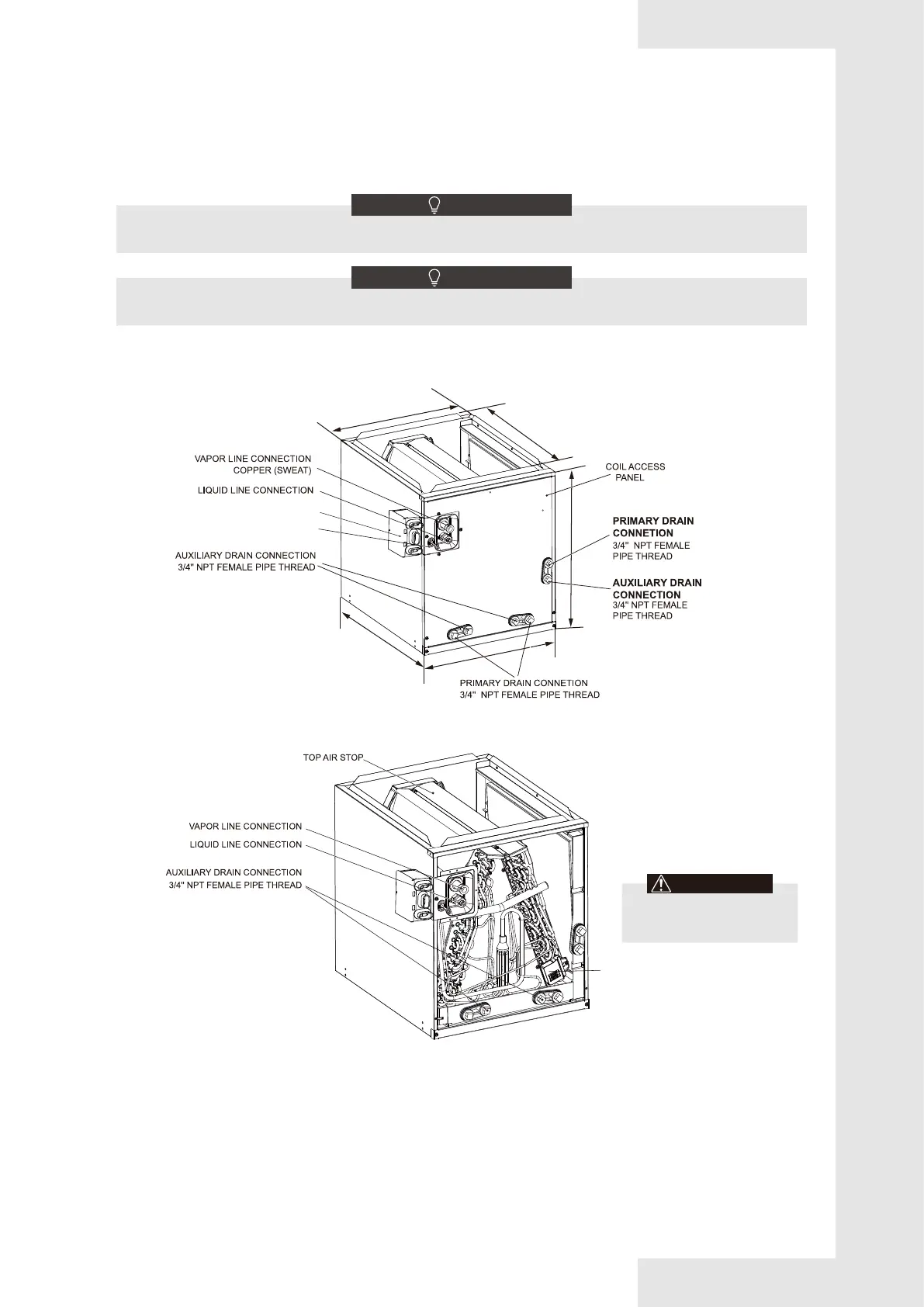

Fig. 2-1 CASED DIMENSIONS AND COMPONENT LOCATION
W
H
A
19"
21"
R454B REFRIGERANT SENSOR
R454B REFRIGERANT SENSOR WIRE
NOTE
The leak mitigation system is required to be used with these coils.
WARNING
The refrigerant sensor must be
in the original position and
cannot be changed.
MCB KIT
