BAS-SVP09B-EN 7
Configuring the BCI-R
The BCI-R can be configured using either the Tracer™ BACnet Setup Tool or the Tracer™ TU service
tool.
Note: T
he BCI-R controller is fully configured from the factory for use with Tracer SC based
systems. Additional configuration, or the use of Tracer TU, is not necessary. Additionally,
the BCI-R self-configures itself to match the unit type upon initial power-up.
Using the BACnet Setup Tool
This section describes how to configure the BCI-R controller using the Tracer BACnet Setup Tool.
Online help is available by clicking the help icon located in upper right portion of the screen.
1. Open the Tracer BACnet Setup Tool.
The Controller Settings screen appear
s (Figure 3).
2. In the Protocol and Controller Units sections, change or keep the default settings for the baud
rate,
software device ID, and the device units.
3. Click sa
ve.
Using Tracer TU
This section describes how to first connect to the Tracer TU software and then configure the
BCI-R controller. If Tracer TU is not installed, refer to the “Tracer TU Service Tool Getting Started
Guide” (TTU-SVN02). Tracer TU software, Version 6.0 or higher, is required.

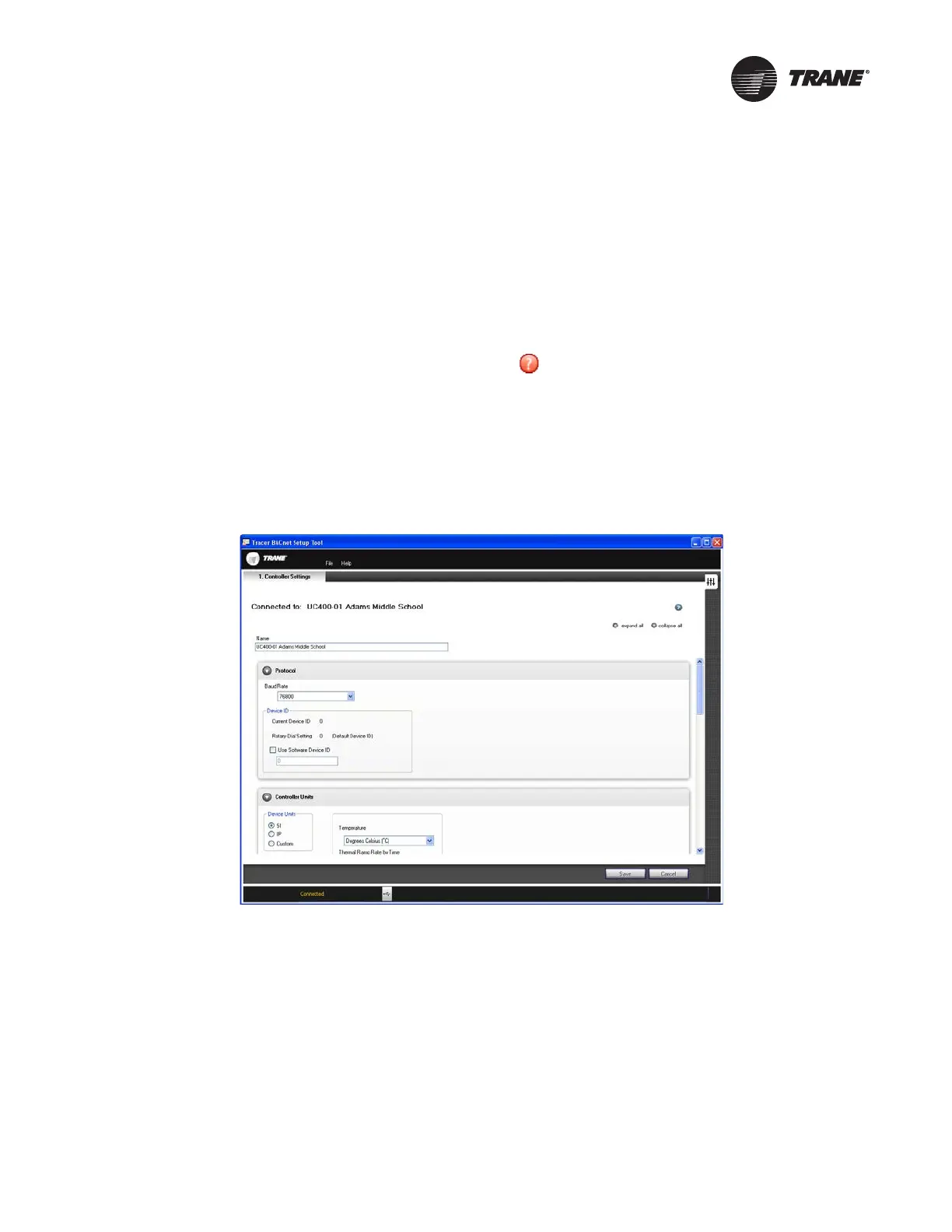

Figure 3. BACnet Setup Tool Controller Settings screen (connected to a UC400 as an example)
