Trane BACnet BCI-R User Manual

24 BAS-SVP09B-EN
Object Data Points and Diagnostic Data Points
For quick reference, the following tables are listed two different ways. Tables 3 through 9 are listed
by input/output type and sorted by object identifier. These tables provide the user with the units
type for each object type. Table 11, p. 32 and Table 13, p. 35 are sorted by object name and provide
a complete list of object names, types, values/ranges, and descriptions. Not all points are available
to the user. The available data points are defined during self-configuration and are dependent on
the type of equipment.

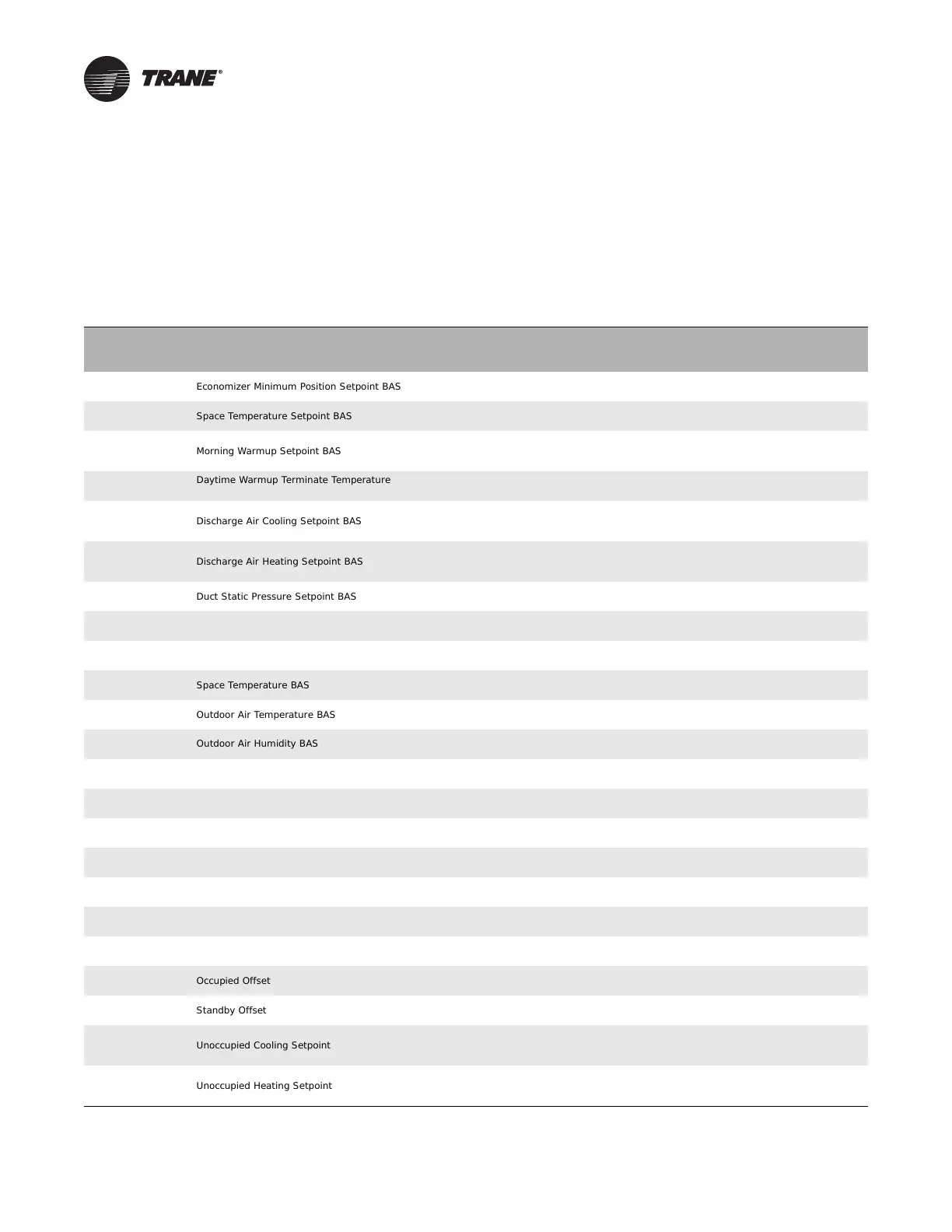

Table 3. Analog Output
Object Identifier Object Name Description
Units of Measure
IP/SI
Valid Range
Refresh
Rate
(Sec.)
Analog Output, 1 Economizer Minimum Position Setpoint BAS
BAS supplied economizer
position minimum setpoint value
Percent (98) 0 to 100 NA
Analog Output, 2 Space Temperature Setpoint BAS
Base value to calculate setpoints
in occupied and standby modes.
Fahrenheit (64)
Celcius (62)
50.0 to 90.0
10.0 to 32.2
NA
Analog Output, 4 Morning Warmup Setpoint BAS
BAS supplied temperature
setpoint used in morning
warmup mode.
Fahrenheit (64)
Celcius (62)
50.0 to 90.0
10.0 to 32.2
NA
Analog Output, 5
Daytime Warmup Terminate Temperature
Setpoint BAS
BAS supplied daytime warmup
terminate temperature setpoint.
Fahrenheit (64)
Celcius (62)
50.0 to 87.0
10.0 to 30.6
NA
Analog Output, 6 Discharge Air Cooling Setpoint BAS
BAS supplied discharge air
temperature cooling setpoint
value.
Fahrenheit (64)
Celcius (62)
40.0 to 90.0
4.4 to 32.2
NA
Analog Output, 7 Discharge Air Heating Setpoint BAS
BAS supplied discharge air
temperature heating setpoint
value.
Fahrenheit (64)
Celcius (62)
40.0 to 180.0
4.4 to 82.2
NA
Analog Output, 8 Duct Static Pressure Setpoint BAS
BAS supplied duct static air
pressure setpoint value.
0.0 inH2O = 0 Pa (53)
2.5 inH2O = 622 Pa
0.0 to 2.5 NA
Analog Output, 9 Space Static Pressure Setpoint BAS
BAS supplied space static air
pressure setpoint value.
-0.2 inH2O = -50 Pa (53)
0.3 inH2O = 74 Pa
0.3 to -0.2 NA
Analog Output, 10 Space Static Pressure BAS
BAS supplied space static air
pressure sensor value.
-0.67 inH2O = -167 Pa (53)
0.67 inH2O = 167 Pa
-0.67 to 0.67 900
Analog Output, 11 Space Temperature BAS
BAS supplied space air
temperature sensor value.
Fahrenheit (64)
Celcius (62)
-39.5 to 200.0
-39.7 to 93.3
900
Analog Output, 14 Outdoor Air Temperature BAS
BAS supplied outdoor air
temperature sensor value.
Fahrenheit (64)
Celcius (62)
-39.5 to 200.0
-39.7 to 93.3
900
Analog Output, 15 Outdoor Air Humidity BAS
BAS supplied outdoor air
humidity sensor value.
Percent (98) 10.0 to 90.0 900
Analog Output, 16 Outdoor Air Minimum Flow Setpoint BAS
BAS supplied minimum outdoor
airflow setpoint.
0 CFM = 0 l/s (litres/second)
60000 CFM = 28317 l/s (87)
0 to 60,000 NA
Analog Output, 18 Space CO
2
Concentration BAS
BAS supplied space CO
2
sensor
value.
Part-per-million (96)
mg/kg
0.0 to 2000
900
Analog Output, 19 Cool Capacity Enable Setpoint BAS
BAS supplied cooling demand
limit capacity setpoint value.
Percent (98) 0 to 100 NA
Analog Output, 20 Heat Capacity Enable Setpoint BAS
BAS supplied heating demand
limit capacity setpoint value.
Percent (98) 0 to 100 NA
Analog Output, 21 Space Dehumidification Setpoint BAS
BAS supplied space
dehumidification setpoint value.
Percent (98) 40 to 65 NA
Analog Output, 23 Discharge Air Reheat Setpoint BAS
BAS supplied discharge air
reheat setpoint value.
Fahrenheit (64)
Celcius (62)
65.0 to 80.0
18.3 to 26.7
NA
Analog Output, 25 Space Humidity BAS
BAS supplied space humidity
sensor value.
Percent (98) 10 to 90 900
Analog Output, 29 Occupied Offset
Offset used to calculate setpoints
in occupied mode.
Fahrenheit (64)
Celcius (62)
1.0 to 5.0
-17.2 to -15.0
NA
Analog Output, 30 Standby Offset
Offset value used to calculate
setpoints in standby mode.
Fahrenheit (64)
Celcius
1.0 to 5.0
-17.2 to -15.0
NA
Analog Output, 31 Unoccupied Cooling Setpoint
Cooling temperature setpoint
used for control in unoccupied
mode.
Fahrenheit (64)
Celcius (62)
52.0 to 88.0
111.1 to 31.1
NA
Analog Output, 32 Unoccupied Heating Setpoint
Heating temperature setpoint
used for control in unoccupied
mode.
Fahrenheit (64)
Celcius (62)
50.0 to 90.0
10.0 to 32.2
NA
