4
18-HH32D1-1C-EN
3. Install three small support clips to the adapter ring. Make sure to
align the grooves in the support clips with the indentation in the
adapter ring. See Figure 3 for the support clip locations and Figure
4 for the alignment feature.
Note: The orientation of the small support clips is such that they
can only be installed in one direction.

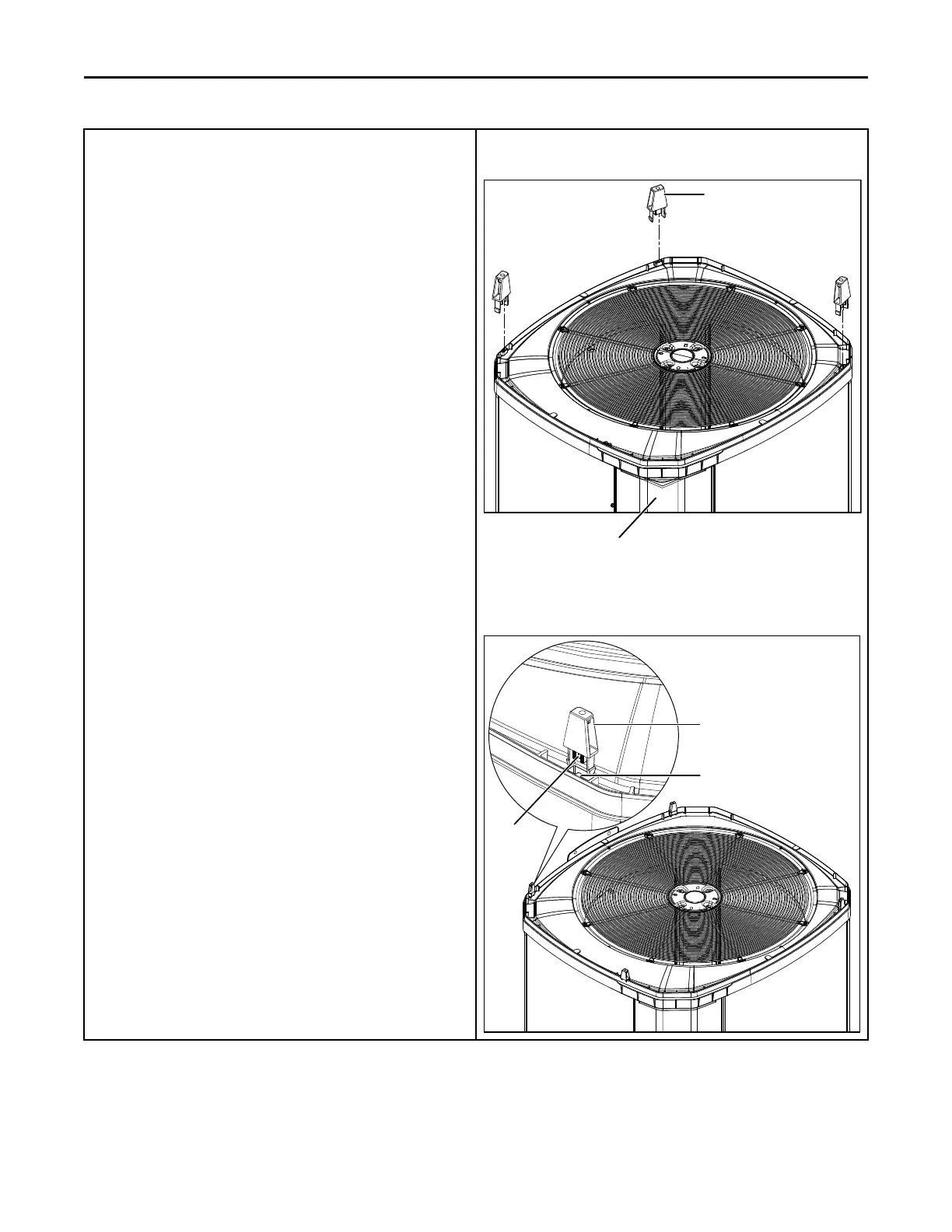

Figure 3. Small Support Clips Installation
Small Support Clips (x3)
Control Box Corner
Figure 4. Small Support Clips Alignment
Groove
Indentation
Small Support Clip
