Trane BCI-I User Manual

12 ACC-SVP01B-EN • BCI-I Integration Guide
BCI IntelliPak Rotary Switches and LEDs
BCI IntelliPak Rotary Switches and LEDs
This section provides information about the BCI-I rotary switches and LED displays.
Rotary Switches
There are three rotary switches on the front of the BCI-I device that are used to define a three-digit
address when the BCI-I is installed on a BACnet communications network. The three-digit address
setting is the BACnet MAC address.
Note: All devices are MSTP masters with valid MAC addresses of 001 to 127 for BACnet.

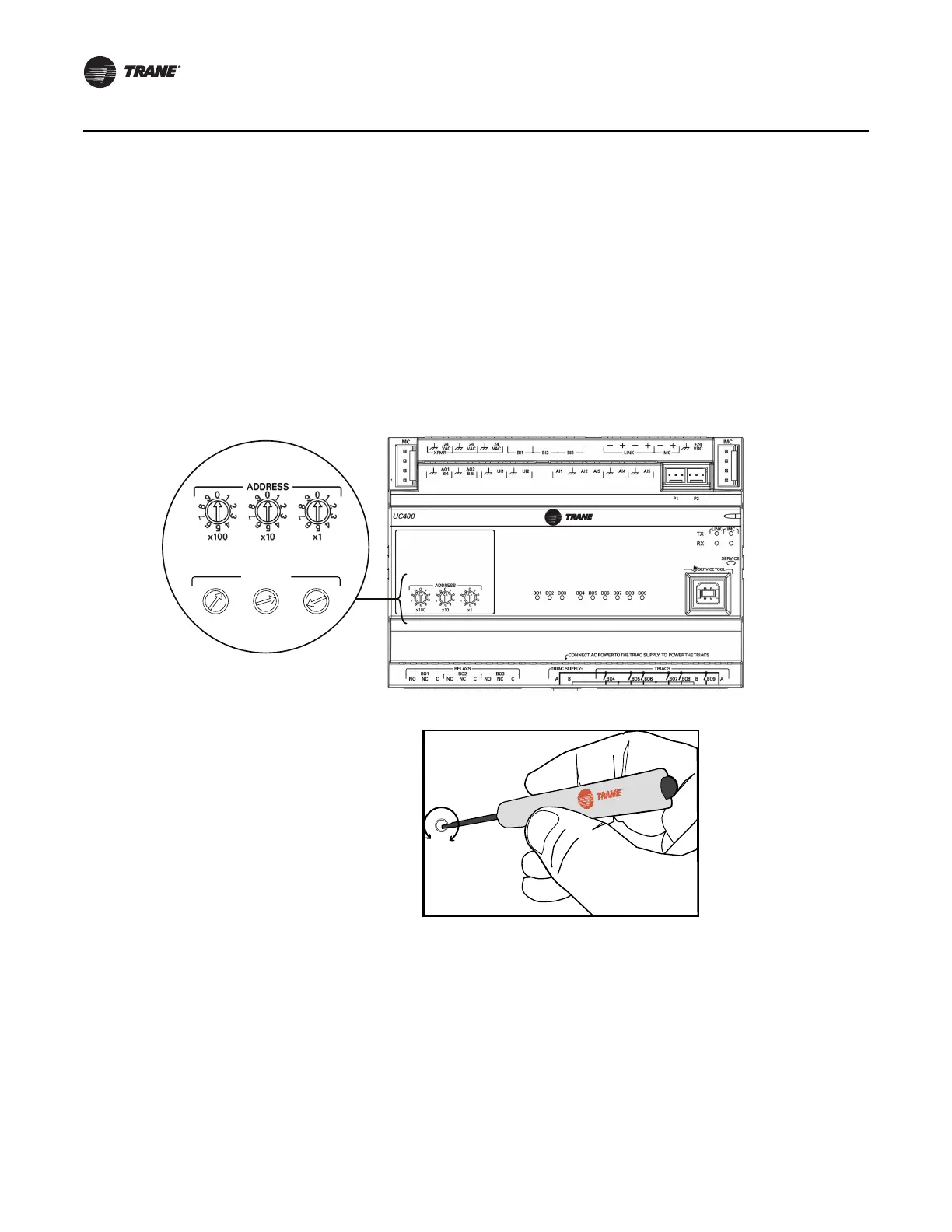

Figure 1. Setting rotary switches
ADDRESS
0
1
2
3
4
5
6
7
8
9
x1
0
1
2
3
4
5
6
7
8
9
x10
0
1
2
3
4
5
6
7
8
9
x100
Before
After
0
5
1
3
6
2
9
4
8
7

Example of before and
after setting addresses
Use a 1/8 inch
flathead screwdriver
to set rotary switches.
Important: Each device on the BACnet/MSTP link must have a unique rotary switch setting, otherwise, communication problems will occur.
