BCXC-SVX01A-EN 65

Typical Wiring

DiagramMaintenance

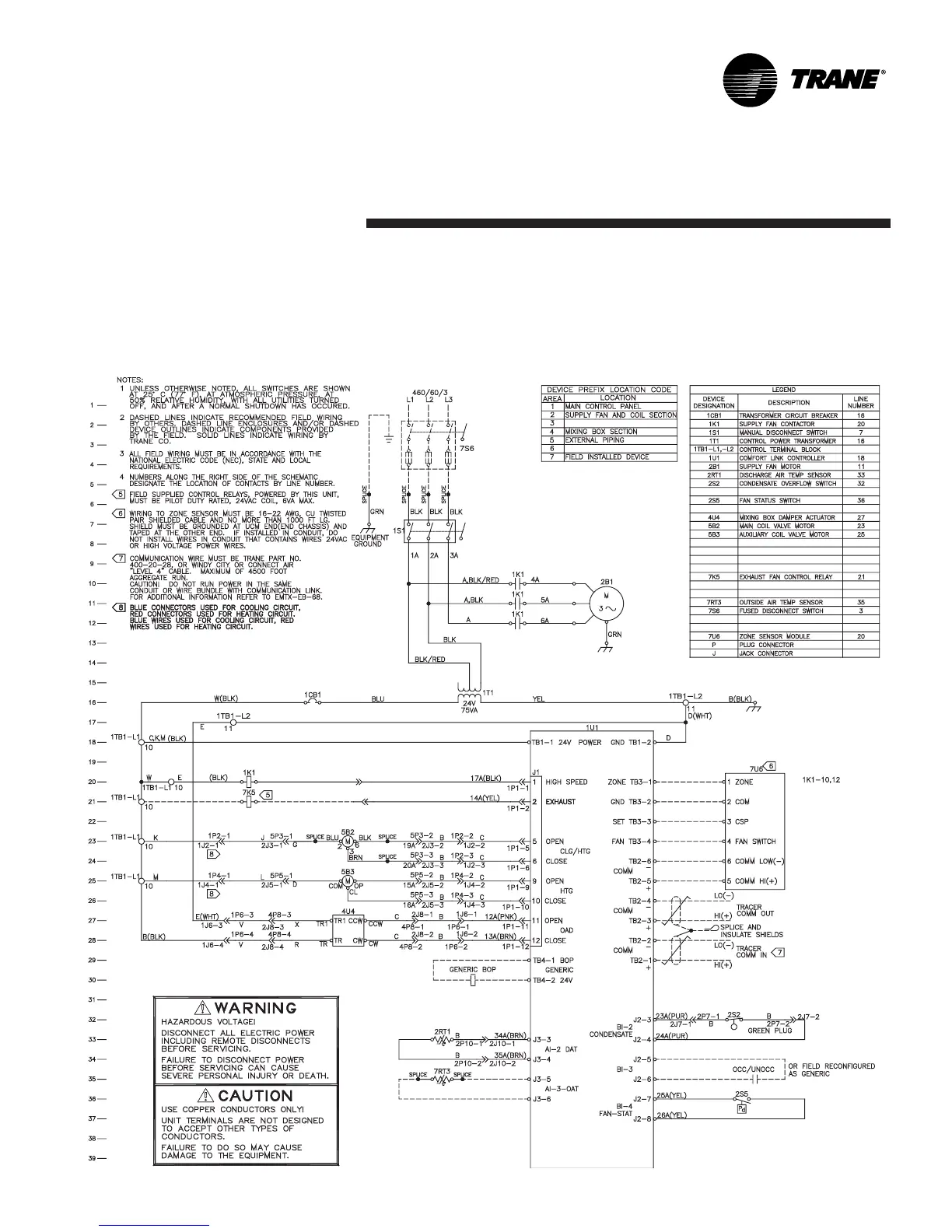

Four-Pipe BCXB with Tracer ZN520

• 460 volt/3 phase • fan status switch

• 3-wire floating point valves • wall-mounted zone sensor

• economizer damper

• condensate overflow
