Trane BCVC - Typical Wiring Diagrams: Four-Pipe BCXB with Control Interface

72 pages

To Next Page

To Previous Page

66 BCXC-SVX01A-EN

Typical Wiring

DiagramMaintenance

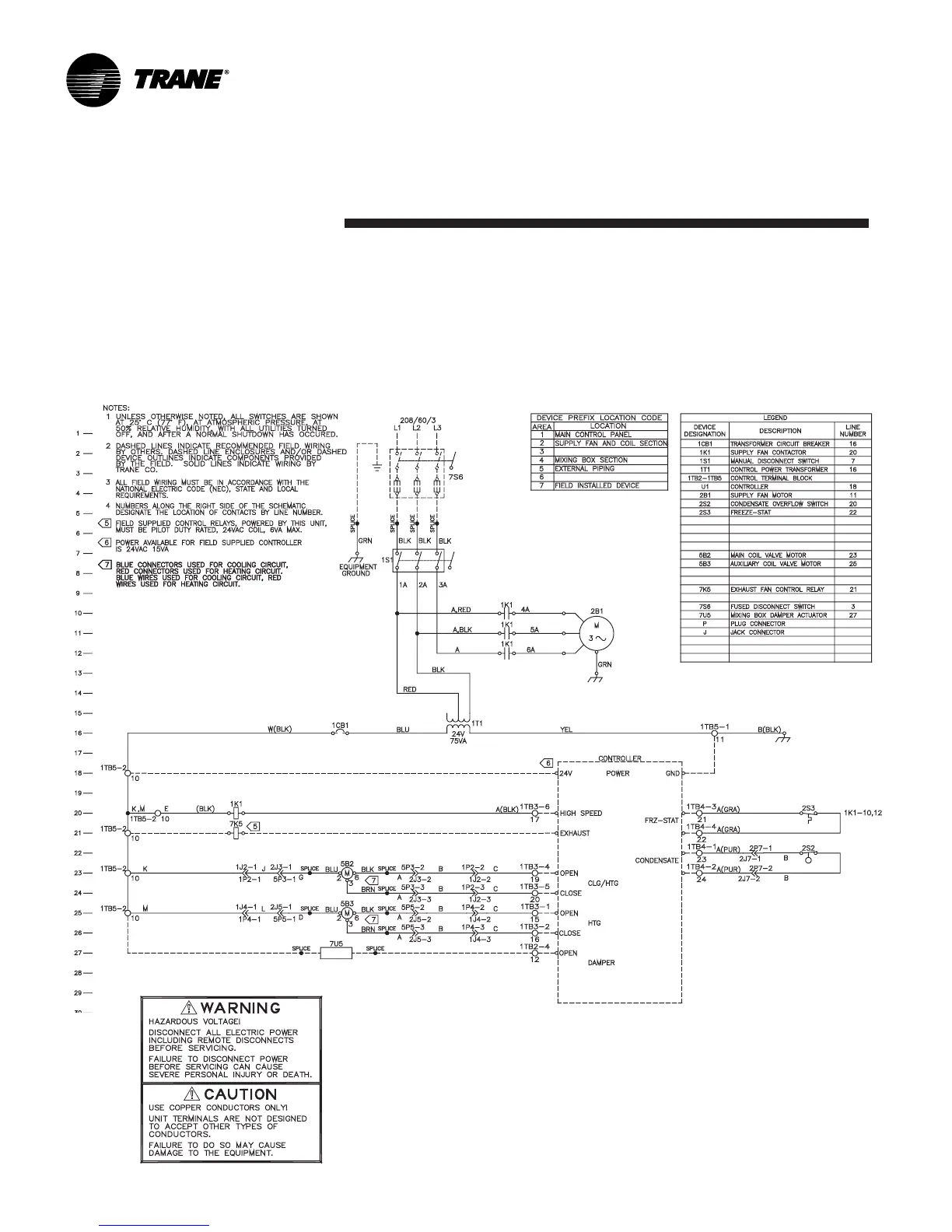

Four-Pipe BCXB with Control interface

• 208 volt/3 phase

• 3-wire floating point valves

• 2-position damper

• low limit protection

• condensate overflow
