Trane CGAM020 - CGAM080 and CGAM090 Chillers (W1 Units) Louver Installation

Installation
20 PART-SVN228B-EN
CGAM080 and CGAM090 Chillers
(W1 Units)
Table 23. Kit contents FMF14440
# Qty Per Component Part Component Description
1 6 571272480100 PANEL; LVRD UPPER PLASTIC
2 22 X32030872010 CLIP-SPEED; S Type Spring
3 38 X25020604010 SCREW;M8 X 1.25MM X 16MM
4 2 572055550100 LOUVER; UPPER SIDE CGAM
5 2 572024130100 ANGLE; LOUVER
6 6 572055580100 LOUVER; LOWER SIDE CGAM
7 2 572055560100 LOUVER; LOWER SIDE CGAM
8 1 572018650100 ANGLE; LOUVER
9 2 572055570100 LOUVER; LOWER END CGAM
Table 24. Kit contents LVR01104
# Qty Per Component Part Component Description
1 6 571272480100 PANEL; LVRD UPPER PLASTIC
2 22 X32030872010 CLIP-SPEED; S Type Spring
3 38 X25020604010 SCREW;M8 X 1.25MM X 16MM
4 2 572055550100 LOUVER; UPPER SIDE CGAM
5 2 572024130100 ANGLE; LOUVER
6 6 572055580100 LOUVER; LOWER SIDE CGAM
7 2 572055560100 LOUVER; LOWER SIDE CGAM
8 1 572018650100 ANGLE; LOUVER
9 1 572229070100 PANEL; LOUVER W
10 1 572229090100 PANEL; LOUVER, W w/PMP
Table 25. Kit contents LVR01103
# Qty Per Component Part Component Description
1 6 571272480100 PANEL; LVRD UPPER PLASTIC
2 22 X32030872010 CLIP-SPEED; S Type Spring
3 303 X25020604010 SCREW;M8 X 1.25MM X 16MM
4 2 572055550100 LOUVER; UPPER SIDE CGAM

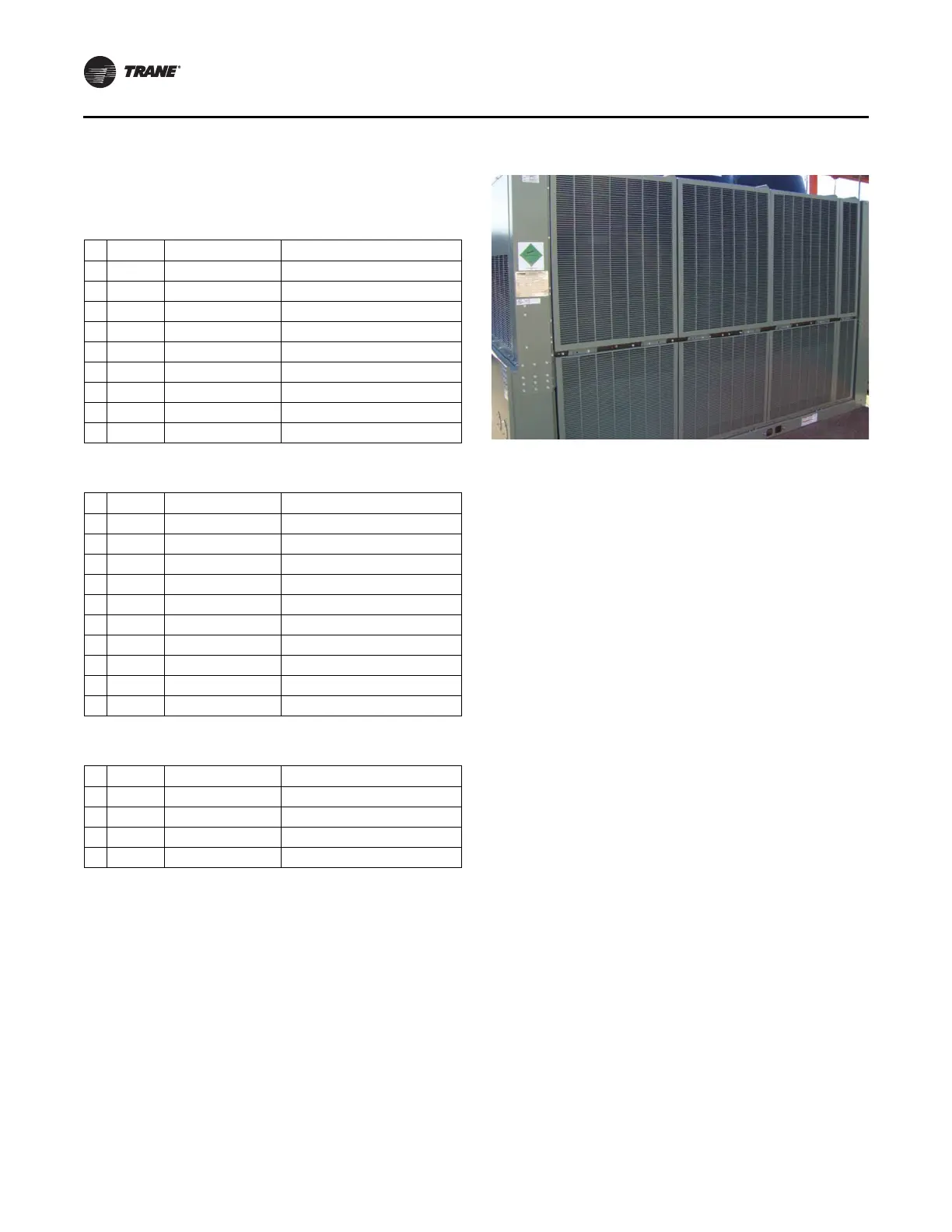

Figure 15. CGAM080–090 ton (W1 units); 1 of 1
Note: Do not use an impact gun when installing plastic
louvers.
1. Install three clips (Figure 16, p. 21, Item 2) per upper
louver.
2. Instal
l six upper louvers (Figure 16, Item 1), three each
side, with provid
ed M8 X 16 screws (Figure 16, Item
3).
3. Install two smaller upper louvers (Figure 16, Item 4),
one
each side, with provided M8 X 16 screws
(Figure 16, Item 3).
Note: If installing the half louver option, the
instal
lation is complete at this point.
4. Install two louver support angles (Figure 16, Item 5),
on
e each si
de of unit, with provided M8 X 16 screws
(Figure 16, Item 3).
5. Install six lower louvers (Figure 16, Item 6), three each
side, with provid
ed M8 X 16 screws (Figure 16, Item 3).
6. Install two smaller lower louvers (Figure 16, Item 7),
on
e each si
de, with provided M8 X 16 screws
(Figure 16, Item 3).
7. Install rear louver angle (Figure 16, Item 8) with
provid
ed M8 X 16 screws (Figu
re 16, Item 3).
8. Install lower end louvers (Figure 16, Item 9 and
Item 10) with provided M8 X 16 screws (Figure 16,
Item 3).
