Installation
PART-SVN228B-EN 17
CGAM060 and CGAM070 Chillers
(V2 Units)
Table 19. Kit contents FMF14486
# Qty Per Component Part Component Description
1 4 572095380100 SUPPORT; LOUVER
2 159 X25020604010 SCREW;M8 X 1.25MM X 16MM
3 16 572055590100 LOUVER; UNIT SIDE CGAM
4 1 572116120100 SUPPORT; LOUVER
5 1 572094890100 POST; LOUVER
6 2 572055570100 LOUVER; LOWER END CGAM
7 1 572116160100 PANEL; TOP CONTROL PANEL
8 1 572116130100 SUPPORT; PANEL
9 1 572116010100 SUPPORT; PHR
10 3 572116030100 PANEL; UNIT END
11 1 572116080100 PANEL; BPHE INLET/OUTLET
12 1 572116070100 PANEL; UNIT END
Table 20. Kit contents LVR01101
# Qty Per Component Part Component Description
1 4 572095380100 SUPPORT; LOUVER
2 159 X25020604010 SCREW;M8 X 1.25MM X 16MM
3 16 572055590100 LOUVER; UNIT SIDE CGAM
4 1 572116120100 SUPPORT; LOUVER
5 1 572094890100 POST; LOUVER
6 2 572055570100 LOUVER; LOWER END CGAM
7 1 572116160100 PANEL; TOP CONTROL PANEL
8 1 572116130100 SUPPORT; PANEL
9 1 572116010100 SUPPORT; PHR
10 1 572116030100 PANEL; UNIT END
11 1 572116060100 PANEL; UNIT END
12 1 572116050100 PANEL; UNIT END
13 1 572116030100 PANEL; UNIT END
14 1 573120610100 PANEL; UNIT END, V UNIT
Table 21. Kit contents LVR01102
# Qty Per Component Part Component Description
1 4 572095380100 SUPPORT; LOUVER
2 155 X25020604010 SCREW;M8 X 1.25MM X 16MM
3 16 572055590100 LOUVER; UNIT SIDE CGAM
4 1
572116120100 SUPPORT; LOUVER
5 1 572094890100 POST; LOUVER
6 2 572055570100 LOUVER; LOWER END CGAM
7 1 572116160100 PANEL; TOP CONTROL PANEL
8 1 572116130100 SUPPORT; PANEL
10 1 572116110100 PANEL; UNIT END
11 1 572116080100 PANEL; BPHE INLET/OUTLET
12 1 572116070100 PANEL; UNIT END
13 1 572116100100 PANEL; PHR INLET/OUTLET
14 1 572116030100 PANEL; UNIT END
Table 22. Kit contents LVR01110
# Qty Per Component Part Component Description
1 4 572095380100 SUPPORT; LOUVER
2 155 X25020604010 SCREW;M8 X 1.25MM X 16MM
3 16 572055590100 LOUVER; UNIT SIDE CGAM
4 1 572116120100 SUPPORT; LOUVER
5 1 572094890100 POST; LOUVER
6 2 572055570100 LOUVER; LOWER END CGAM
7 1 572116160100 PANEL; TOP CONTROL PANEL
8 1 572116130100 SUPPORT; PANEL
10 1 572116110100 PANEL; UNIT END
11 1 572116060100 PANEL; UNIT END
12 1 572116050100 PANEL; UNIT END
13 1 572116100100 PANEL; PHR INLET/OUTLET
14 1 573120610100 PANEL; UNIT END, V UNIT

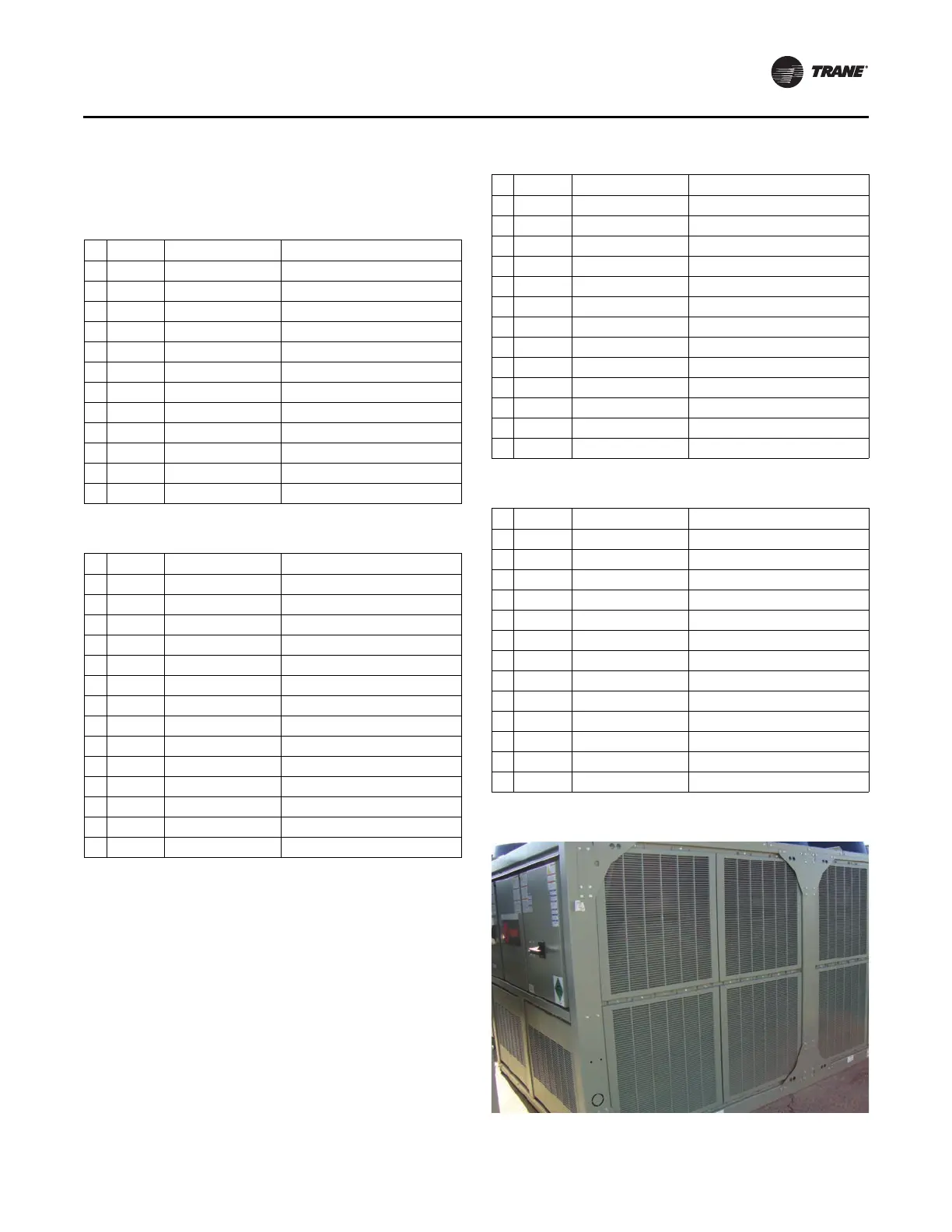

Figure 12. CGAM060–070 ton (V2 units); 1 of 2
To Next Page
