Assembly & Installation

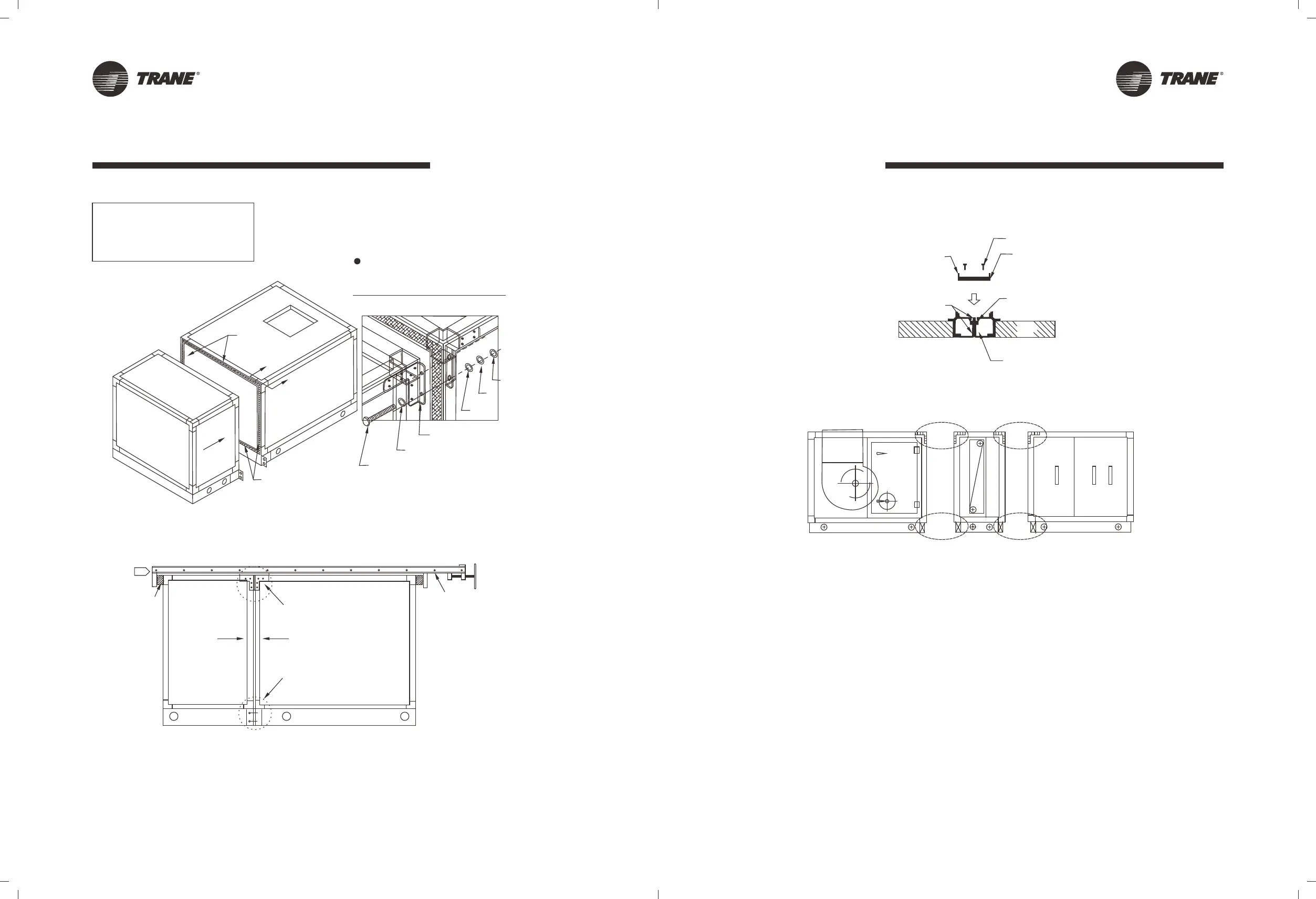

CLCP Break Point - Frame to Frame
BREAK POINT JOINING METHOD
MODULE TO MODULE BREAK
POINT EXTERNAL JOINING
(TO BE DONE AT JOB SITE)
ENSURE GASKET IS IN-PLACE
&GOOD CONDITION AT FRAME.
DETAIL EXTERNAL CONNECTION
TOP JOINT BRACKET
GASKET,
PE FOAM TAPE
A
A
DETAIL‘A’
AIR
FLOW
GASKET
HEX.HD.BOLT,M10 X35
FLAT WASHER M10
BREAKPOINT CONNECTOR
FLAT WASHER,M10
SPRING WASHER,M10
HEX NUT M10
WOOD TO
PROTECT
THE FRAME
SURFACE
USE A LONG CLAMP, TO BRING
THE TWO SECTION CLOSER.
INSTALL THE TOP , INTERNAL
JOINING PLATES BEFORE REMOVE
THE CLAMP
TOP, EXTERNAL
CONNECTION
BOTTOM,EXTERNAL
CONNECTION
DETAIL
VIEW
UNIT BASE
3
INTERNAL JOINT (SIDE & TOP & BOTTOM)
Plote
Internal sealed sheet metal
Screw
Internal sealed sponge
Silica gel
Sponge (joint seal)
STEAL TH (AL,FRAME)
ARR3
Assembly & Installation CLCP
(External connection)
