To remove Coil Panel:
1. Use a screwdriver to remove the four screws on
Coil Panel.
2. Pull panel straight out, away from cabinet.
3. Set aside.
To remove Blower Panel:
1. Use a screwdriver to remove the two screws on
Blower Panel.
2. Pull top of panel out, away from cabinet.
3. Pull panel upward and out of channel.
4. Set aside.
To remove Heater Panel:
1. Use a screwdriver to remove the two screws on
Heater Panel.
2. Pull top of panel out, away from cabinet.
3. Pull panel upward and out of channel.
4. Set aside.
IMPORTANT: Removal of the Line Set Panel is re-
quired for all refrigerant line brazing and some conden-
sate line assembly depending on your orientation.
To remove Line Set panel:
1. Remove both Heater and Coil panels.
2. Use a screwdriver to remove the four screws on
Line Set Panel.
2. Pull panel straight out, away from cabinet.
3. Set aside.

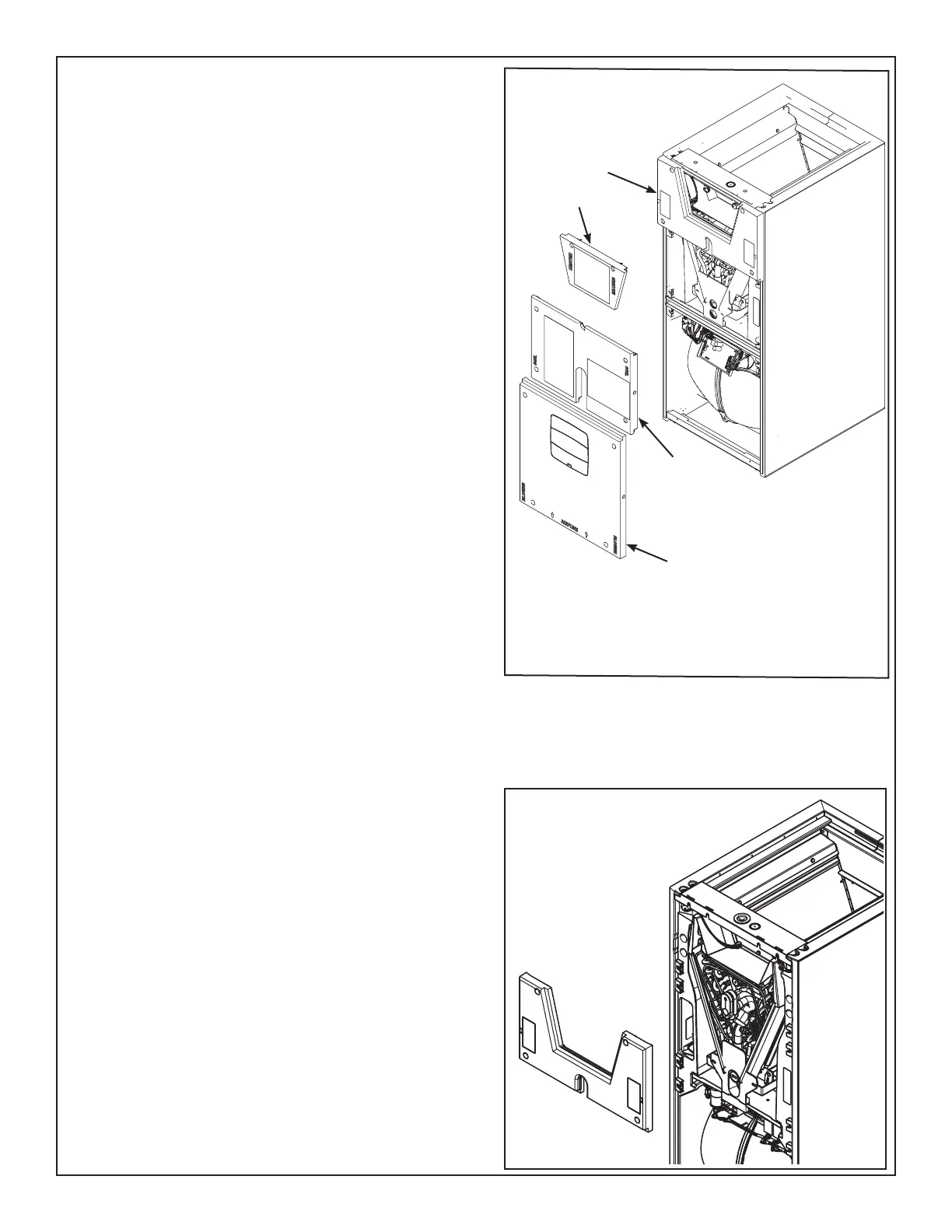

Blower Panel
Coil Panel
Heater Panel
Line Set Panel
