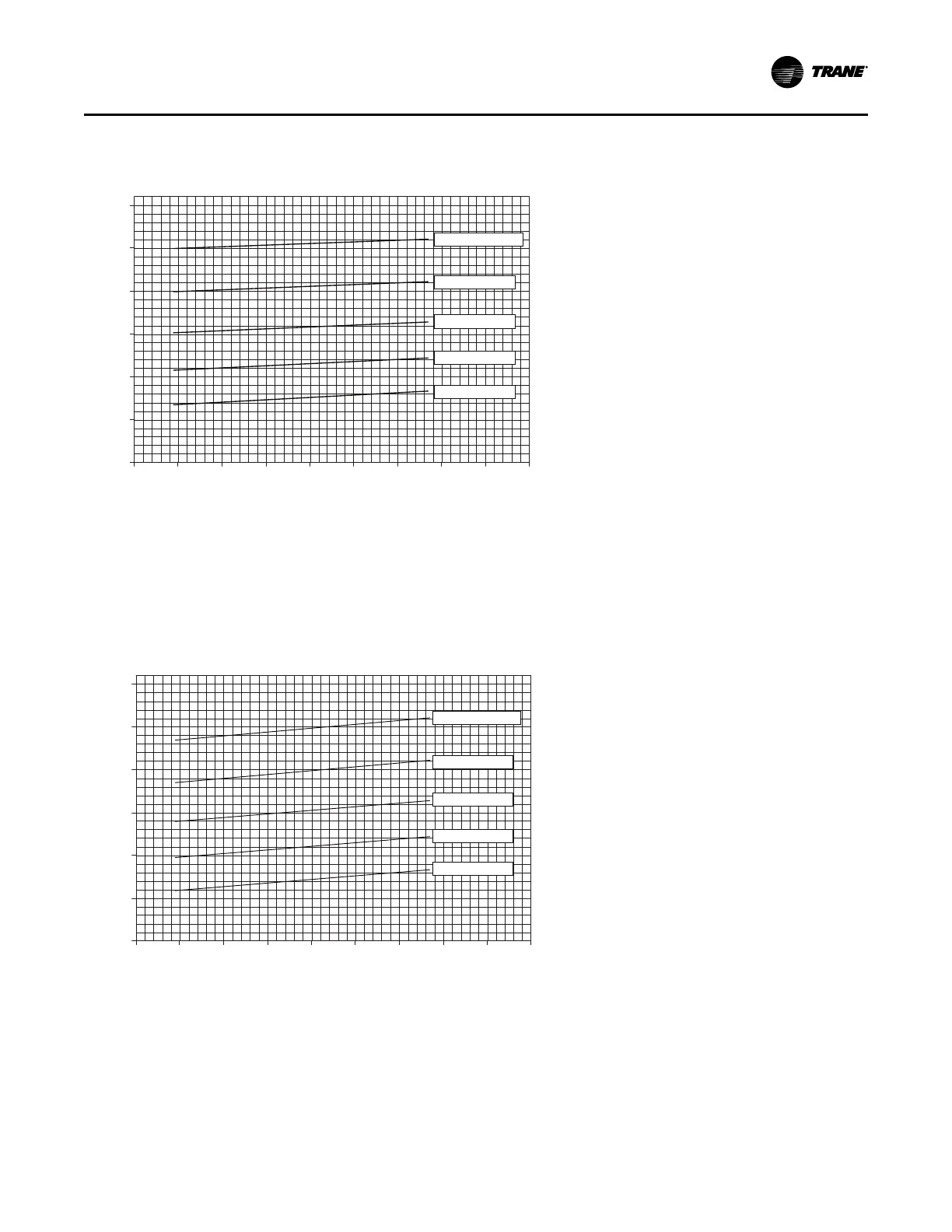

Figure 75. Pressure curve — 50 tons standard efficiency
200
250
300
350
400
450
500
90 100 110 120 130 140 150 160 170 180
Suction Pressure, PSIG
50T Standard Capacity
Discharge Pressure, PSIG
95°F Ambient
85°F Ambient
75°F Ambient
65°F Ambient
105°F Ambient
NNootteess::
• CChhaarrggiinngg aatt AAHHRRII ffuullll llooaadd ddeessiiggnn ccoonnddiittiioonnss:: Suction pressure = 134 psig; Discharge pressure = 406 psig;
Subcooling leaving outdoor coil = 15°F.
• CChhaarrggiinngg aatt ootthheerr ccoonnddiittiioonnss:: Subcooling range: 13-17°F.
Figure 76. Pressure curve — 50 tons high efficiency
200
250
300
350
400
450
500
90 100 110 120 130 140 150 160 170 180
Suction Pressure, PSIG
50T High Efficiency
Discharge Pressure, PSIG
95°F Ambient
85°F Ambient
75°F Ambient
65°F Ambient
105°F Ambient
NNootteess::
• CChhaarrggiinngg aatt AAHHRRII ffuullll llooaadd ddeessiiggnn ccoonnddiittiioonnss:: Suction pressure = 137 psig; Discharge pressure = 403 psig;
Subcooling leaving outdoor coil = 21°F.
• CChhaarrggiinngg aatt ootthheerr ccoonnddiittiioonnss:: Subcooling range: 19-23°F.
