Trane IntelliPak RA 20

RT-SVX063E-EN
55

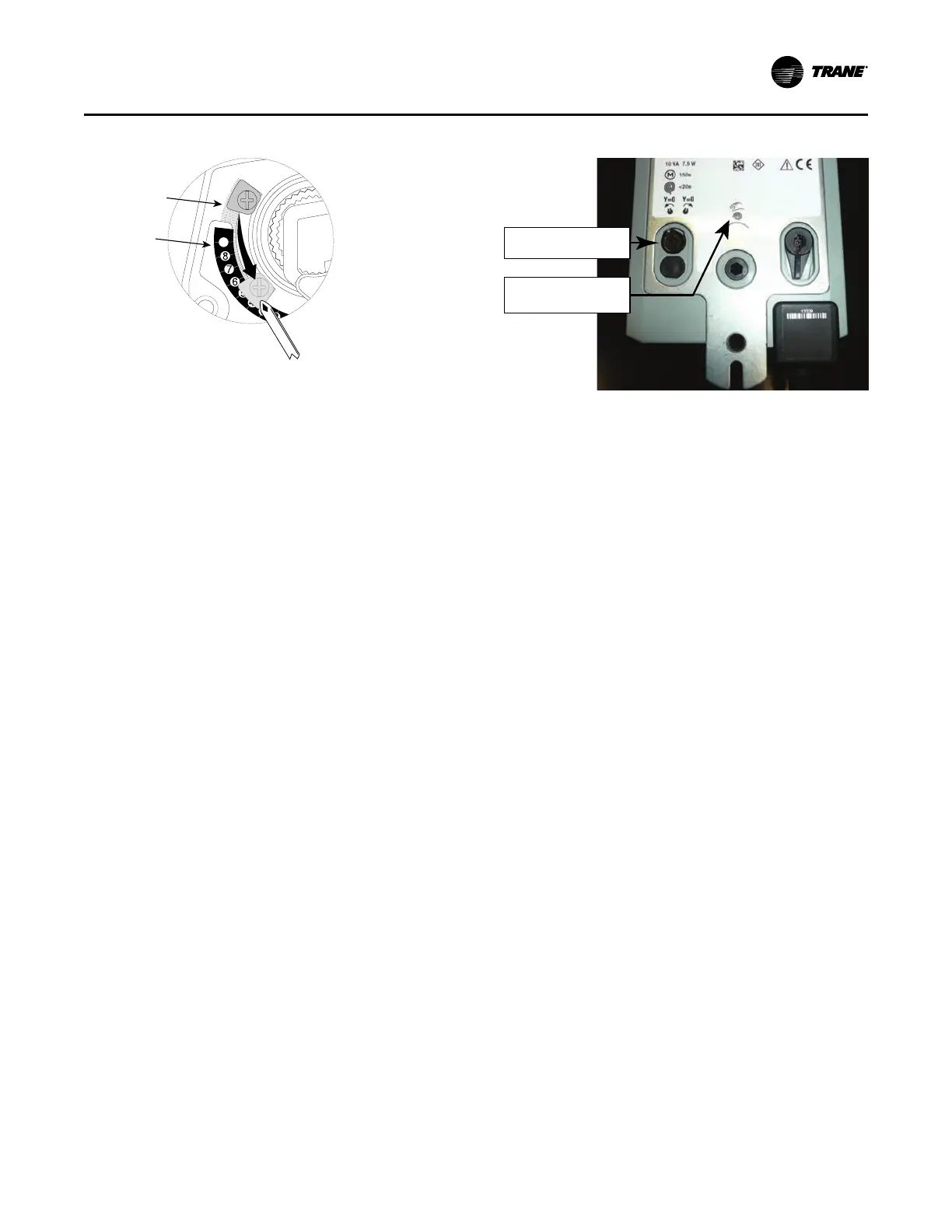

Figure 32. Actuator stroke limit adjustment
9
Philips screwdriver
Angle of Rotation
Limiter
Scale Shows % of
Full Stroke
Figure 33. Actuator auto-scaling feature details
Control Reversing Switch
Must Be Set to Match Spring
Return Direction
