Trane IntelliPak with Symbio 800 - Page 17

RT-SVX063G-EN
17

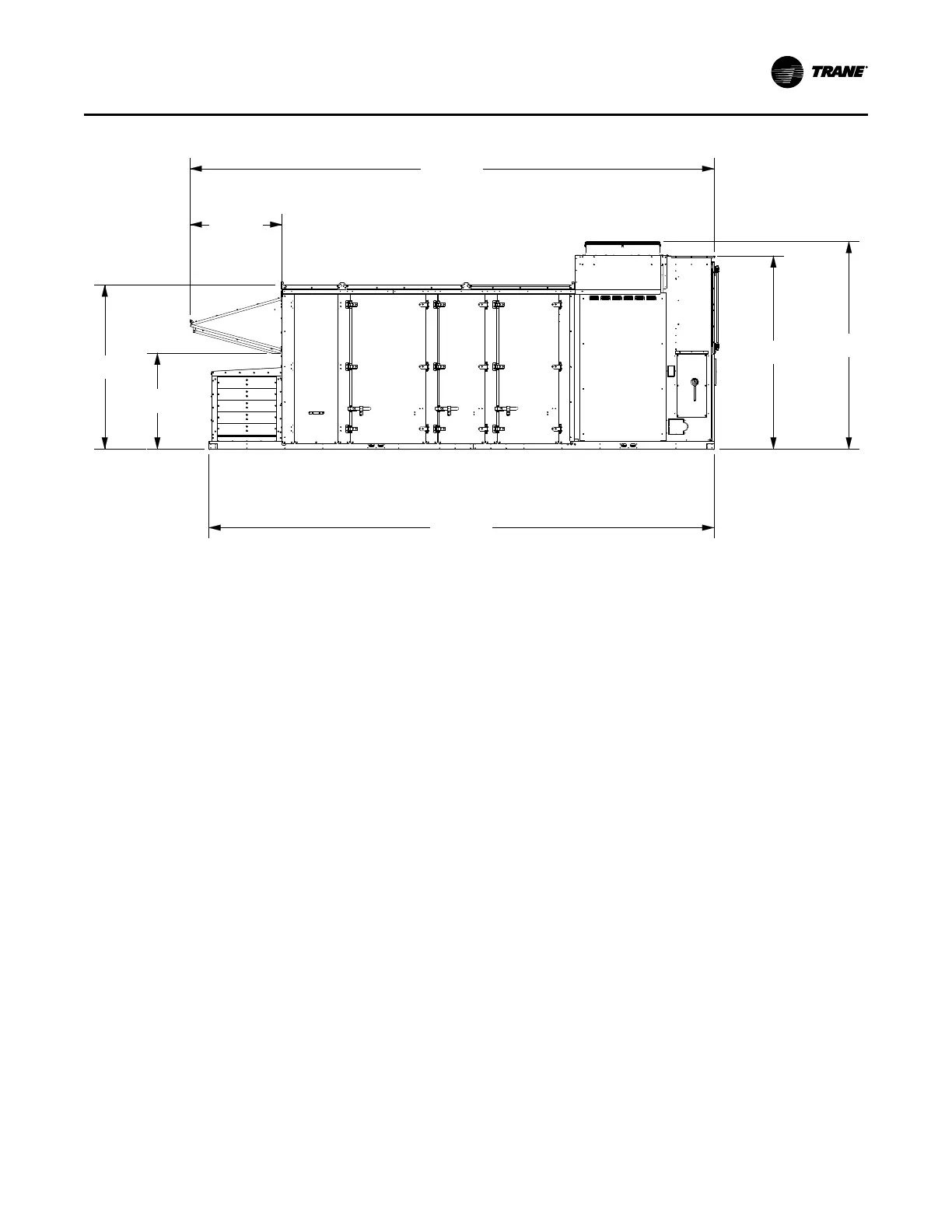

Figure 2. 20 to 30 ton — left view of sample configuration (inches)
87.66
40.61
69.33
81.59
38.85
213.00
220.88
LEFT SIDE VIEW
20-30T / NO HEAT / RELIEF FANS / PANEL FILTERS
Dimensional Data
