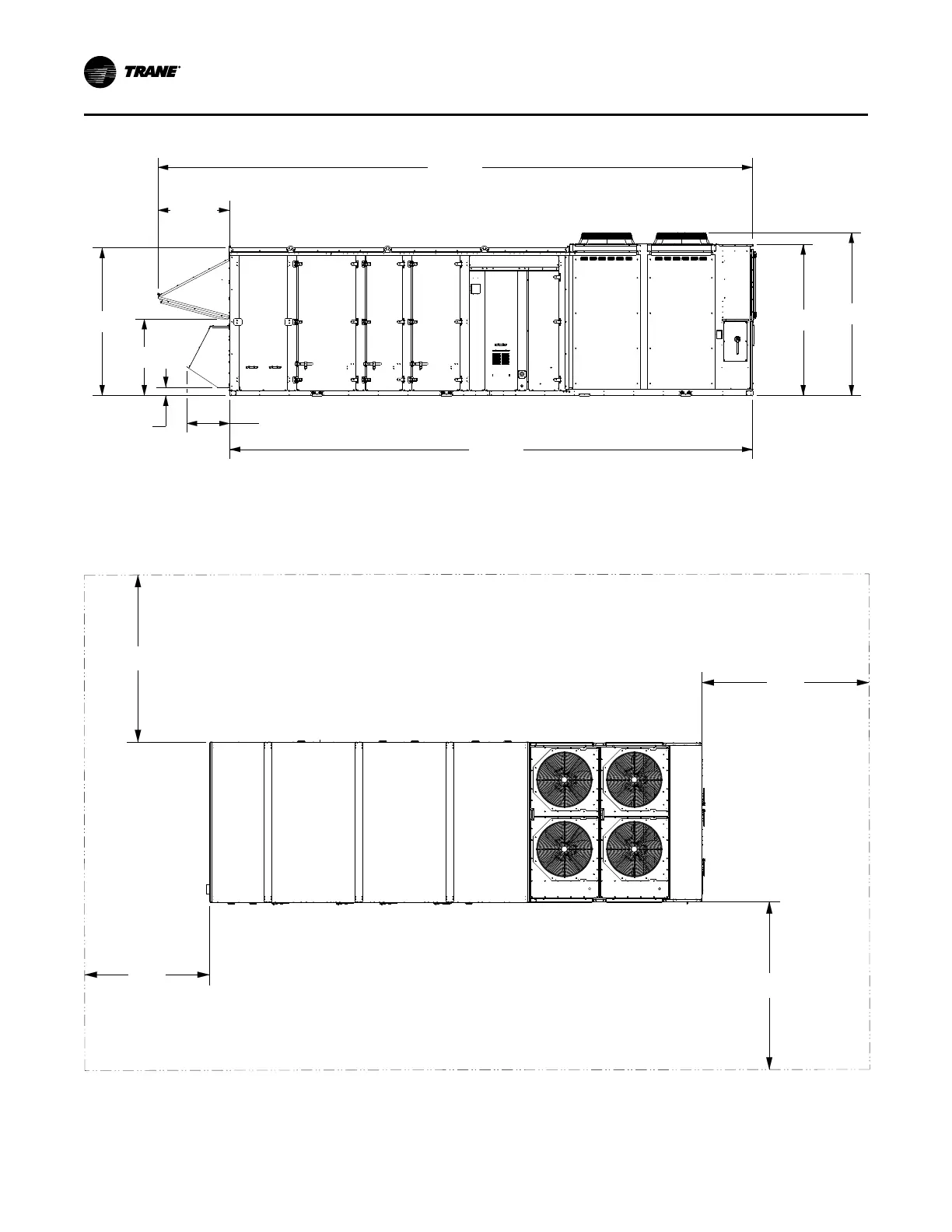

Figure 6. 60 to 75 ton — left view of sample configuration (inches)
79.71
281.88
81.59
87.90
4.52
23.29
41.27
38.63
320.73
LEFT SIDE VIEW
60-75T / GAS HEAT / BAROMETRIC RELIEF / PANEL FILTERS
Roof Curb
Figure 7. Service clearance
96"
96"
72"
96"
Dimensional Data
