Location and Preparation of Units
7. Do not install unit in direct sunlight or near other heat sources as this may affect
performance. Do not allow outside air to directly enter unit or condensate may form at the
unit’s discharge.
Note: For MCX/MWX 042-060, the unit should be installed over the floor at least 20 cm.

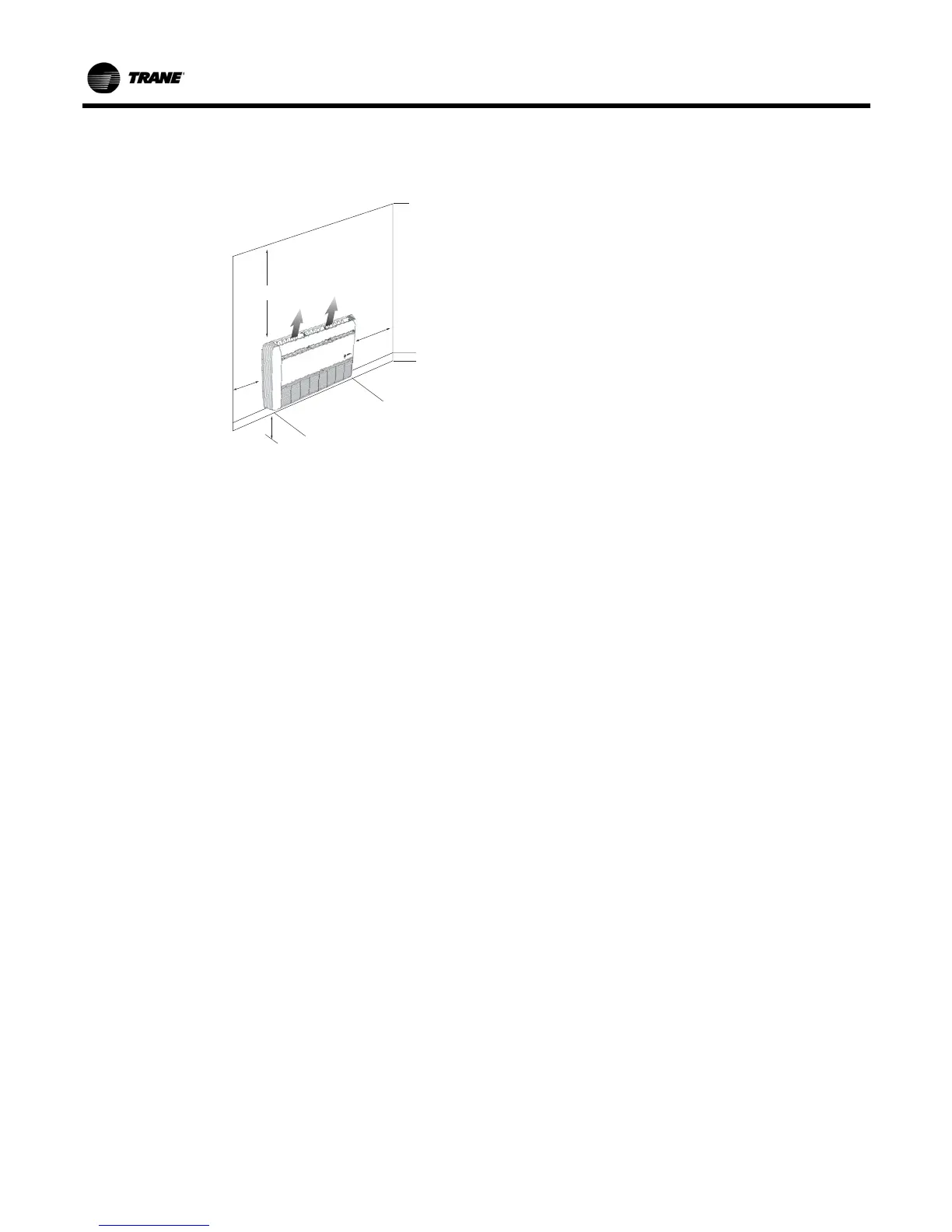

Figure 4.
Min. 120 cm.
Min.
30 cm.
Min.
20 cm.
Min.
20 cm.
Maintenance area
(Low wall mounted)
