1. Select an appropriate position that allows every corners of the room to be uniformly air
conditioned and where it is easy to route the refrigerant tubing.
2. Ensure that the floor or ceiling construction is sufficient to fully support the weight of the
indoor unit.
3. Consideration must be given to assure an unobstructed flow of supply and return air.
4. Refrigerant tubes between indoor and outdoor units should be as short as possible.
5. Length of the condensate drain hose should be kept as short as possible (Figure 1).

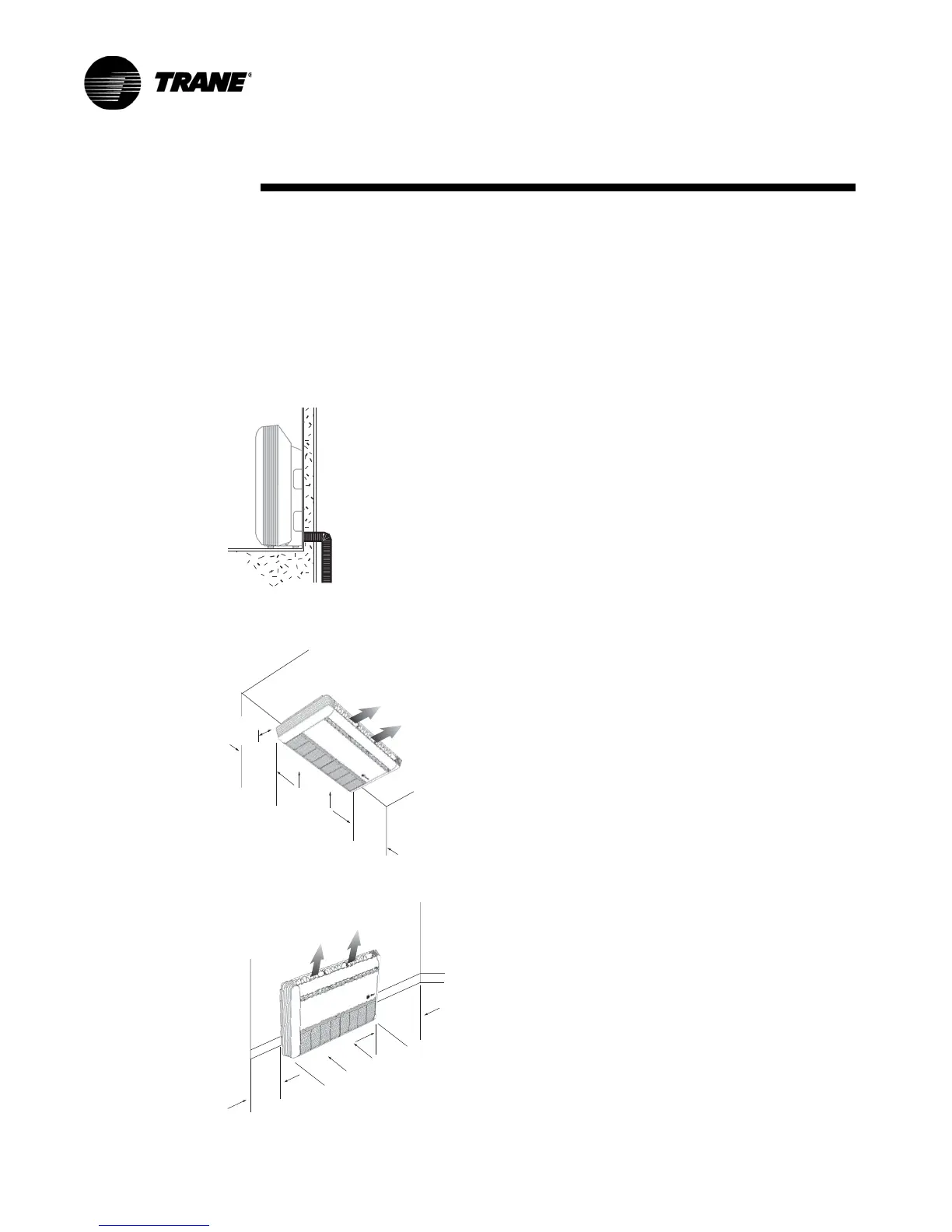

6. Recommended service clearance as shown in figure 2, 3 and 4.
Location and Preparation of Units
Figure 1.
Figure 2.
Figure 3.
Maintenance area
(Celling mounted)
Min.
30 cm.
Min.
20 cm.
Min.
20 cm.
Min.
30 cm.
Min.
20 cm.
Maintenance area
(Floor mounted)
