MS-SVN15B-EN 9

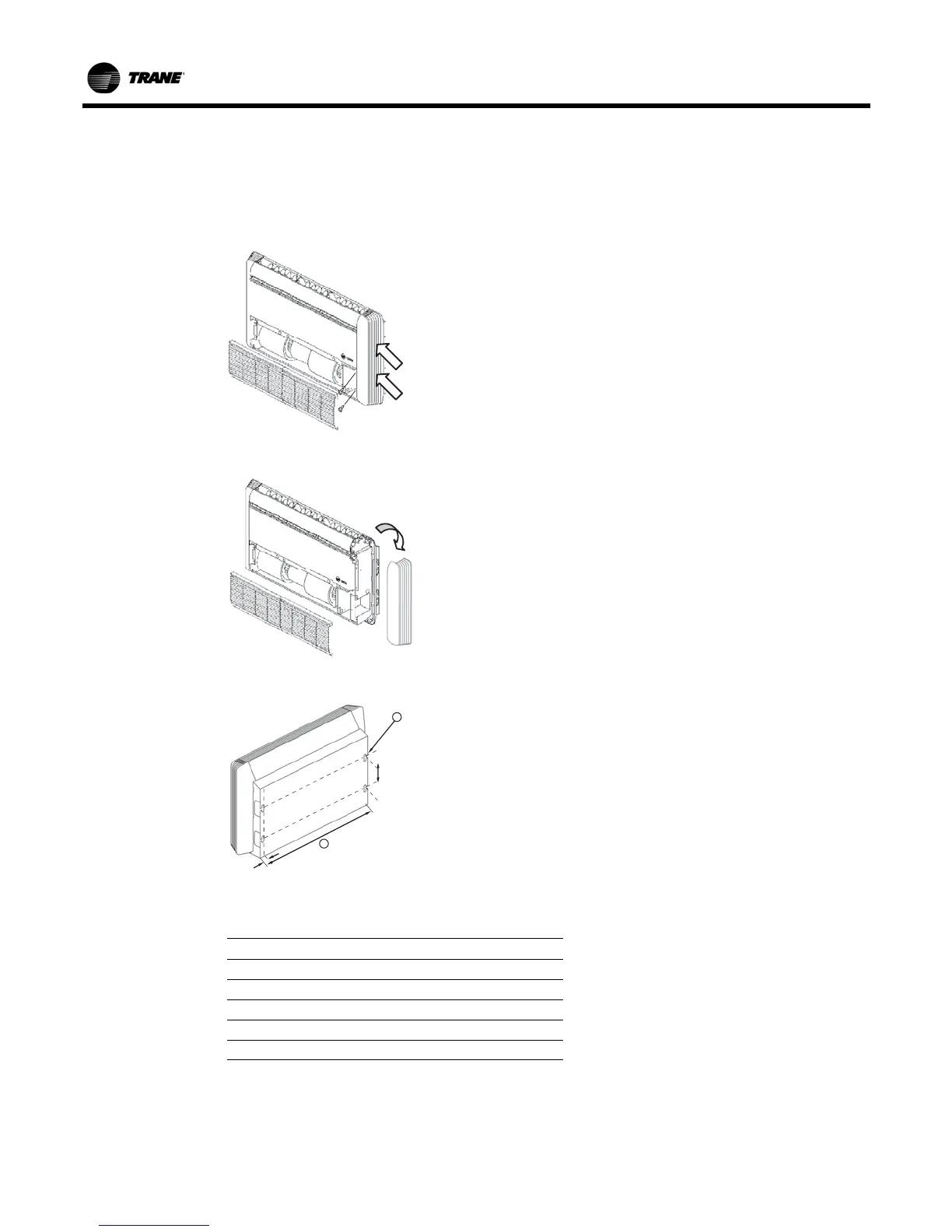

Unit installation
7. Unscrew at the grille bottom hinges, pull out the screw, and unscrew at the side panel front
(Figure 8). Then, push down on the side panel front and pull up (Figure 9).
Note: A= 0.49" x 1.575" - 4 SLOT (Mounting hole) (12.5 mm 40.0 mm)
Figure 4.
Figure 5.
Figure 6.
Unit Size B
MCX/MWX 512-518 36.2" (920)
MCX/MWX 524 46.1" (1,170)
MCX/MWX 530-536 55.9" (1,420)
MCX/MWX 042-048 65.7" (1,670)
MCX/MWX 060 75.6" (1,920)
0.83"(21)
0.83"(21)
8.5"(215)
B
A
