General Information
12 ARTC-SVX005A-EN
After setting each module, remove front or rear access
panels to improve access to components when making
connections.
Rigging, Lifting, and Moving
the Chiller/Heater
The PolyTherm Simultaneous Chiller/Heater is delivered
to the customer’s site as individual modules. Limitations
on the methods and materials that can be used to rig, lift,
or move a chiller/heater or an individual module include:
• Maintain the module in an upright position at all times.
• Rig, lift, and move by strapping and lifting by overhead
means.
• Position lifting beams or spreader beams to prevent
lifting straps from rubbing or contacting module side
panels or electrical boxes. Attach rigging bar on each
end of module where 1 3/8 inch holes are provided.
• Use caution when lifting due to configuration of
components. Module could be heavier on one side
than the other.
• Certain configurations of modules can be top-heavy.
Move modules slowly with consideration to each
module’s center-of-gravity.
• Do not use cables, chains, or any other type of
metalized strapping to lift a module.
• Do not push a chiller/heater module along the floor
using manual or mechanical means.

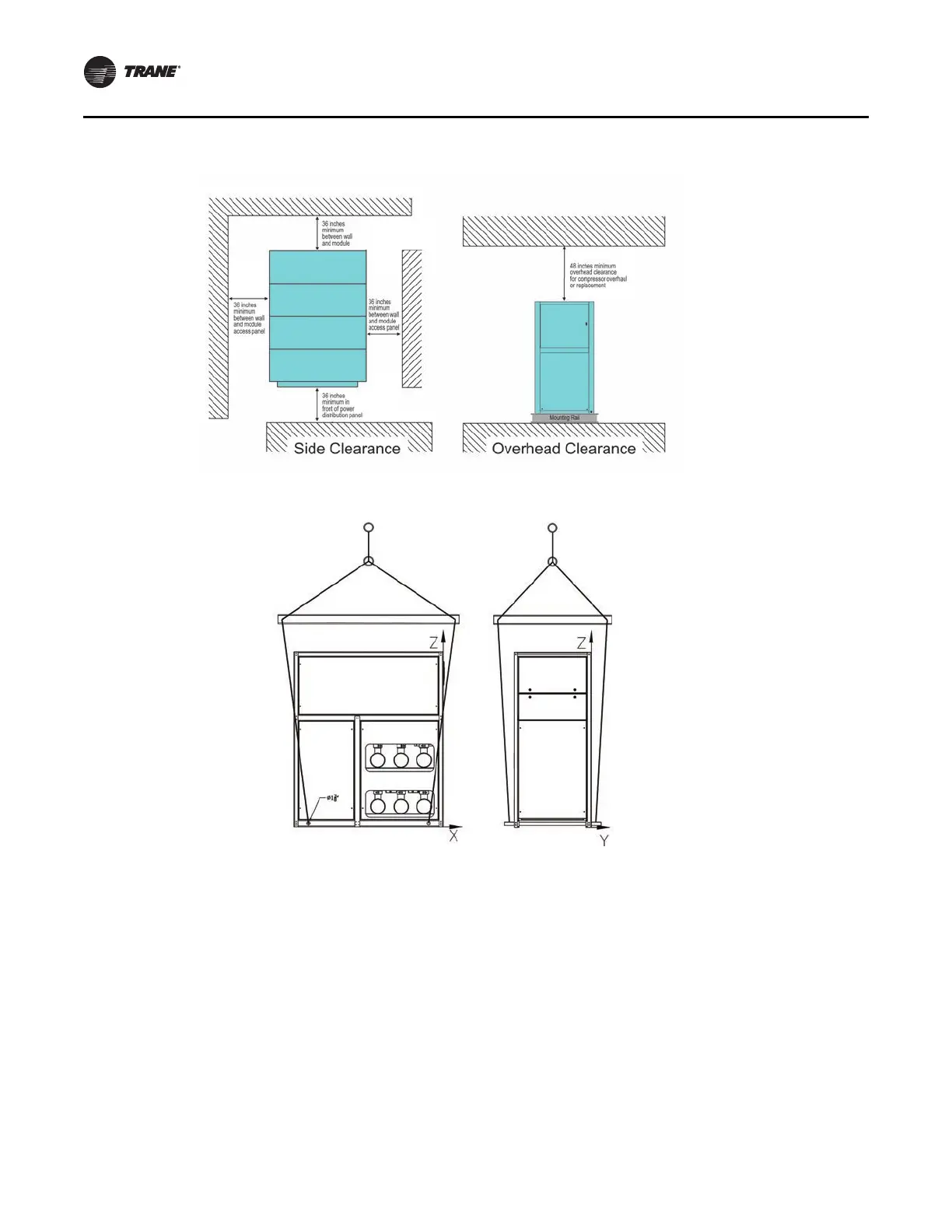

Figure 4. Recommended chiller/heater clearances
Figure 5. Recommended chiller/heater module rigging
