Trane PolyTherm ARTC-SVX005A-EN User Manual

Operating Procedures
ARTC-SVX005A-EN 27
Module Electrical and Control Panel
Each module has its own electrical panel that distributes
electricity to individual components. It also has fuses and
breakers and the microprocessor controller. See the figure
below.
Each module has its own control panel that houses the
microprocessor controller. It also has relays, an expansion
board, an electronic expansion valve controller, and low-
power terminal blocks. See Figure 13, p. 27
Electronic Control
PolyTherm Chiller/Heater models use electronic
controllers to monitor and report critical operating
parameters. The module uses a microprocessor controller
located in the module control panel. See Figure 13, p. 27
and Figure 14, p. 28.

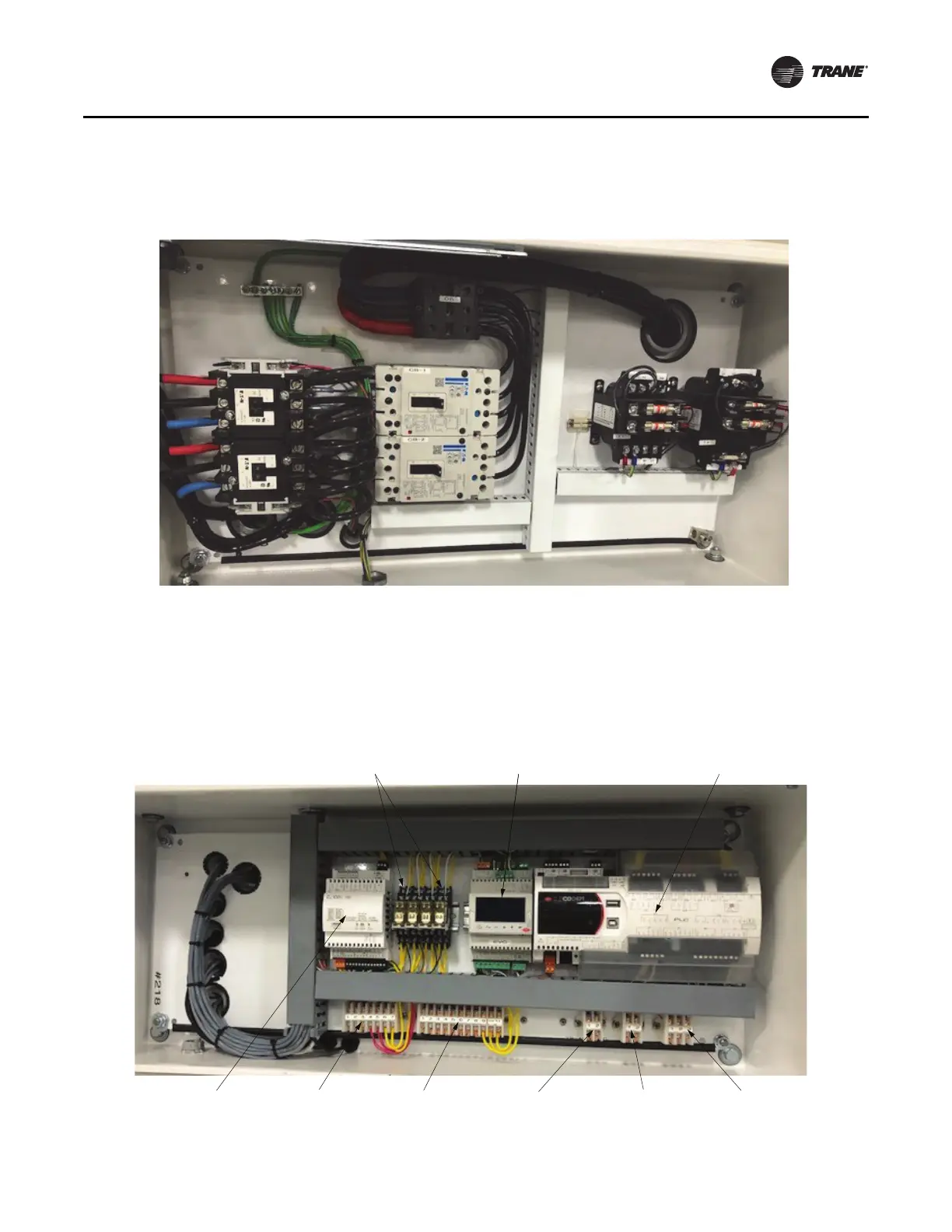

Figure 12. Module electrical panel
Figure 13. Module control panel
Controller Relay Expansion Board Controller
Electronic Expansion
Valve Controller
TB-1
Terminal Block
TB-2
Terminal Block
TB-3
Terminal Block
TB-4
Terminal Block
TB-5
Terminal Block
