Wiring – FIADMPR101*/102*/103*
1. Using the supplied harness connect PPF87 to the actuator
connector.
2. Route harness to fresh air options module located in the
return secti
on and connect to blue connector to P11 and
black connector to P8. See Figure 15 and Figure 16.
3. After installation is complete, Symbio™ 700 UC unit
configu
ration will need to be updated to reflect installed
option.

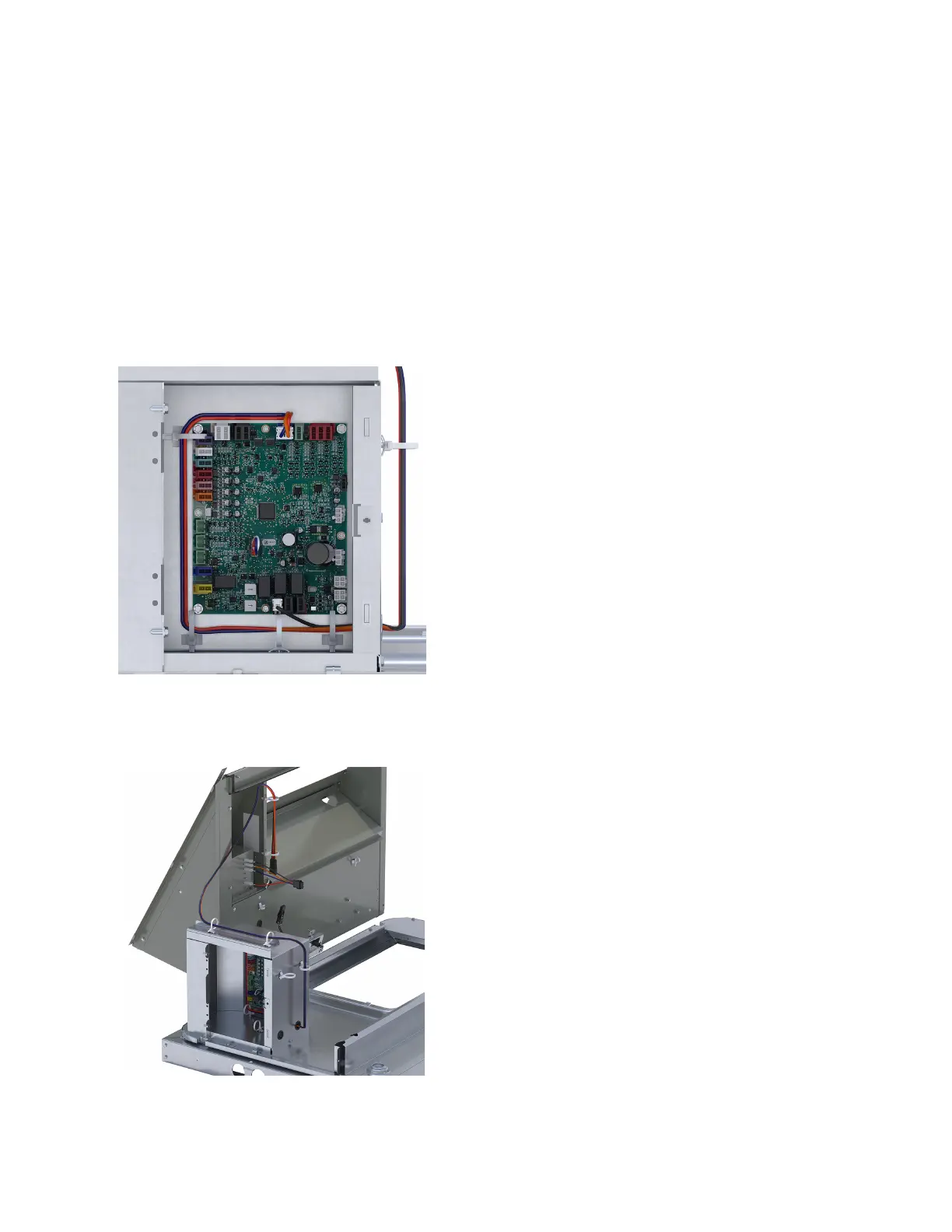

Figure 15. Wire harness to fresh air options module
Figure 16. Actuator harness routing to fresh air options
module
